Maharashtra State Board Class 6 Maths Solutions covers the Std 6 Maths Chapter 2 Angles Class 6 Practice Set 2 Answers Solutions.
Question 1.
Match the following:
Measure of the angle |
Type of the angle |
i. |
180° |
a. |
Zero angle |
ii. |
240° |
b. |
Straight angle |
iii. |
360° |
c. |
Reflex angle |
iv. |
0° |
d. |
Complete angle |
Solution:
(i – Straight Angle),
(ii – Reflex Angle),
(iii – Complete Angle),
(iv – Zero Angle).
Question 2.
The measures of some angles are given below. Write the type of each angle:
Solution:
Question 3.

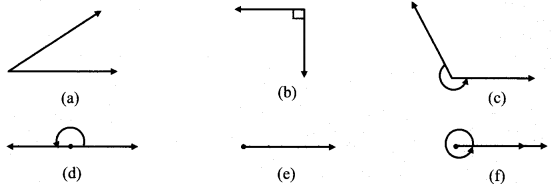

Look at the figures below and write the type of each of the angles:

Solution:
a. Acute angle
b. Right angle
c. Reflex angle
d. Straight angle
e. Zero angle
f. Complete angle
Question 4.

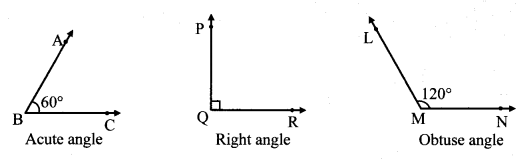

Use a protractor to draw an acute angle, a right angle and an obtuse angle:
Solution:

[Note: Students may draw acute and obtuse angles of measure other than the ones given.]
Maharashtra Board Class 6 Maths Chapter 2 Angles Practice Set 2 Intext Questions and ActivitiesQuestion 1.

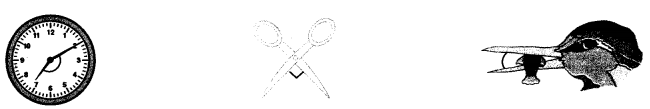

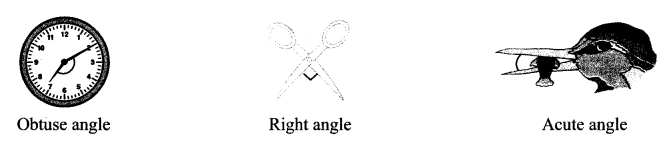

Look at the angles shown in the pictures below. Identify the type of angle and write its name below the picture: (Textbook pg. no. 6)

Solution:

Question 2.

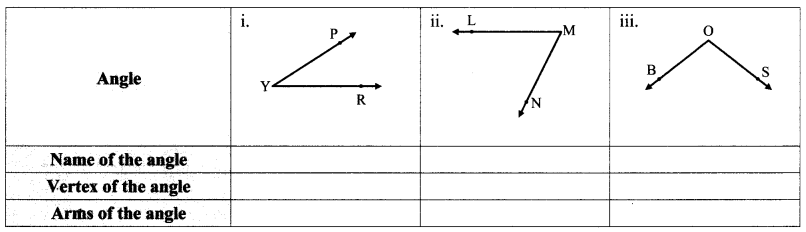

Complete the following table: (Textbook pg. no. 6)

Solution:
Sr. No. |
i. |
ii. |
iii. |
Name of the angle |
∠PYR or ∠RYP |
∠LMN or ∠NML |
∠BOS or ∠SOB |
Vertex of the angle |
Y |
M |
O |
Arms of the angle |
YP and YR |
ML and MN |
OB and OS |
