Balbharti Maharashtra State Board Class 6 Maths Solutions covers the Std 6 Maths Chapter 17 Geometrical Constructions Class 6 Practice Set 40 Answers Solutions.
Question 1.

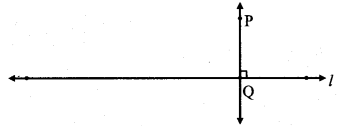

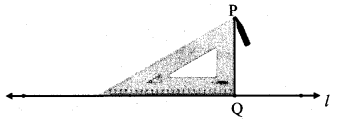

Draw line l. Take point P anywhere outside the line. Using a set square draw a line PQ perpendicular to line l.
Solution:
Step 1:
Step 2:
line PQ ⊥ line l.
Question 2.

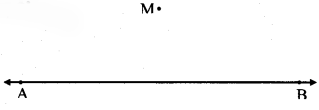

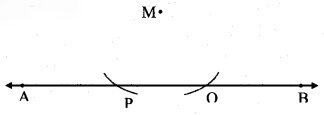

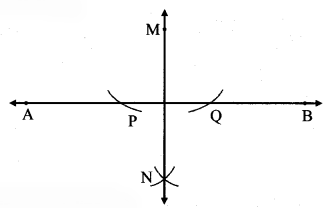

Draw line AB. Take point M anywhere outside the line. Using a compass and ruler, draw a line MN perpendicular to line AB.
Solution:
Step 1:
Step 2:
Step 3:
line MN ⊥ line AB.
Question 3.

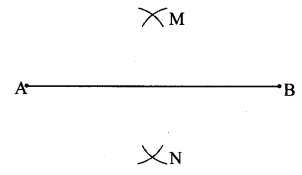

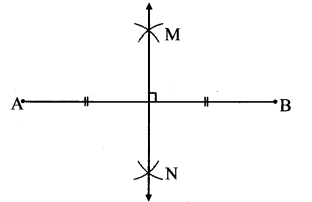

Draw a line segment AB of length 5.5 cm. Bisect it using a compass and ruler.
Solution:
Step 1:
Step 2:
line MN is the perpendicular bisector of seg AB.
Question 4.

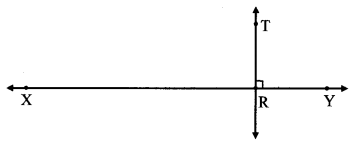

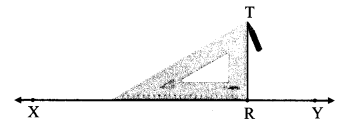

Take point R on line XY. Draw a perpendicular to XY at R, using a set square.
Solution:
Step 1:
Step 2:
line TR ⊥ line XY.
Question 1.
In the above construction, why must the distance in the compass be kept constant? (Textbook pg. no. 90)
Solution:
The point N is at equal distance from points P and Q.
If we change the distance of the compass while drawing arcs from points P and Q, we will not get a point which is at equal distance from P and Q. Hence, the distance in the compass must be kept constant.
Question 2.

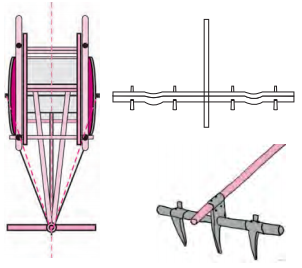

The Perpendicular Bisector. (Textbook pg. no. 90)
Solution:
Question 3.
Take a rectangular sheet of paper. Fold the paper so that the lower edge of the paper falls on its top edge, and fold it over again from right to left. Observe the two folds that have formed on the . paper. Verify that each fold is a perpendicular bisector of the other. Then measure the following distances. (Textbook pg. no. 91)
i. l(XP)
ii. l(XA)
iii. l(XB)
iv. l(YP)
v. l(YA)
You will observe that l(XP) = l(YP), l(XA) = l(YA) and l(XB) = l(YB)
Therefore we can conclude that all points on the vertical fold (perpendicular bisector) are equidistant from the endpoints of the horizontal fold.
Solution:
[Note: Students should attempt this activity on their own.]
