Practice Set 2 Class 7 Answers Chapter 1 Geometrical Constructions Maharashtra Board

Balbharti Maharashtra State Board Class 7 Maths Solutions covers the 7th Std Maths Practice Set 2 Answers Solutions Chapter 1 Geometrical Constructions.

Geometrical Constructions Class 7 Maths Chapter 1 Practice Set 2 Solutions Maharashtra Board

Std 7 Maths Practice Set 2 Solutions Answers

Question 1.
Draw triangles with the measures given below:
i. In ∆ABC, l(AB) = 5.5 cm, l(BC) = 4.2 cm, l(AC) = 3.5 cm.
ii. In ∆STU, l(ST) = 7 cm, l(TU) = 4 cm, l(SU) = 5 cm.
iii. In ∆PQR, l(PQ) = 6 cm, l(QR) = 3.8 cm, l(PR) = 4.5 cm.
Solution:

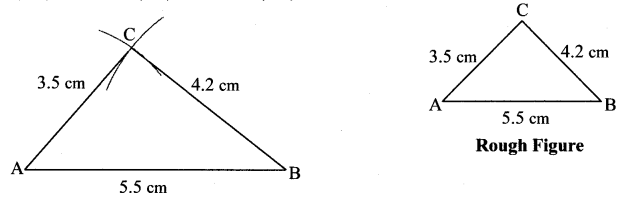

i. In ∆ABC, l(AB) = 5.5 cm, l(BC) = 4.2 cm, l(AC) = 3.5 cm.

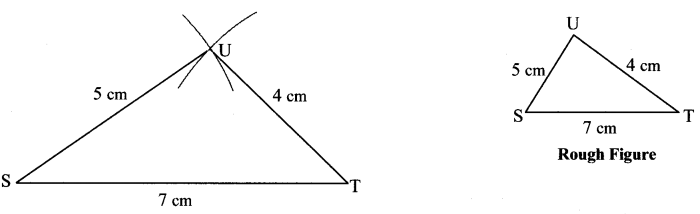

ii. In ∆STU, l(ST) = 7 cm, l(TU) = 4 cm, l(SU) = 5 cm.

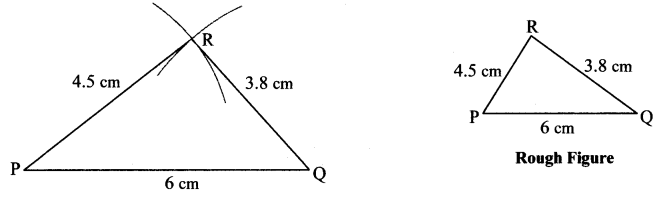

iii. In ∆PQR, l(PQ) = 6 cm, l(QR) = 3.8 cm, l(PR) = 4.5 cm.

Question 2.

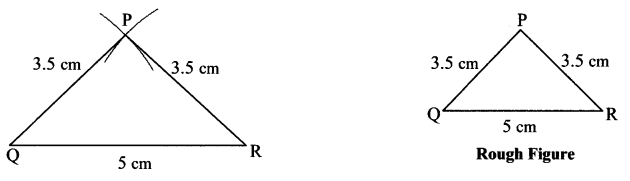

Draw an isosceles triangle with base 5 cm and the other sides 3.5 cm each.
Solution:

Question 3.

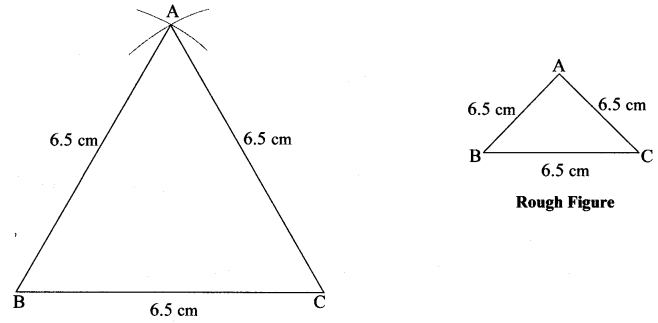

Draw an equilateral triangle with side 6.5 cm.
Solution:

Question 4.
Choose the lengths of the sides yourself and draw one equilateral, one isosceles and one scalene triangle.
Solution:

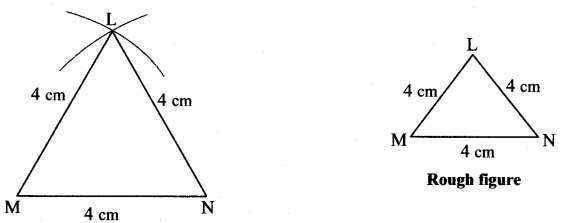

i. Equilateral triangle LMN, l(LM) = l(MN) = l(LN) = 4 cm.

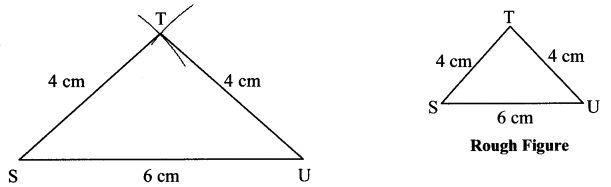

ii. Isosceles triangle STU, l(ST) = l(TU) = 4cm, l(SU) = 6 cm

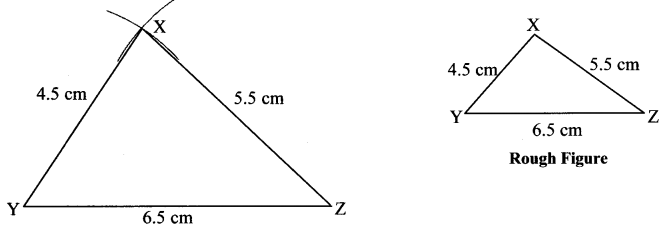

iii. Scalene triangle XYZ, l(XY) = 4.5 cm, l(XY) = 6.5 cm, l(XZ) = 5.5 cm

Maharashtra Board Class 7 Maths Chapter 1 Geometrical Constructions Practice Set 2 Intext Questions and Activities

Question 1.
Draw ∆ABC such that l(AB) = 4 cm, and l(BC) = 3 cm. (Textbook pg. no. 3)

1. Can this triangle be drawn?
2. A number of triangles can be drawn to fulfill these conditions. Try it out.
3. Which further condition must be placed if we are to draw a unique triangle using the above information?

Solution:

1. ∆ABC triangle cannot be drawn as length of third side is not given.
2. For ∆ABC to draw l(AC) > l(AB) + l(BC)
   i.e., l(AC) > 4 + 3
   i.e., l(AC) > 7 cm
   ∴ number of triangles can be drawn if l(AC) > 7 cm
3. l(AC) > l(AB) + l(BC) is the required condition to draw a unique triangle.
