Textbook: Mathematics – Class 8 (Balbharati, official free PDF) · pages 19–23
Every triangle hides more special points than you might think. Besides the incentre and circumcentre from Class 7, the three altitudes meet at the orthocentre and the three medians meet at the centroid — the balancing point of the triangle.
An altitude is the perpendicular segment from a vertex to the opposite side (or to that side extended). A triangle has three altitudes.
The three altitudes (or the lines containing them) pass through one point, the orthocentre, named O.
The orthocentre is inside an acute-angled triangle, at the right-angle vertex of a right-angled triangle, and outside an obtuse-angled triangle.
A median joins a vertex to the midpoint of the opposite side. The three medians meet at the centroid, named G, which is always inside the triangle.
The centroid divides each median in the ratio 2 : 1, the longer part being on the vertex side.
Get a ✓ Verified tutor for “Practice Set 4.1 – Altitudes, Medians, Orthocentre and Centroid” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
In △PQR, ∠Q = 90°. Where is the orthocentre?
Answer: The orthocentre is the vertex Q.
In △ABC, median AD = 12 cm and G is the centroid. Find AG and GD. If GE = 3.5 cm on median BE, find BG and BE.
Answer: AG = 8 cm, GD = 4 cm; BG = 7 cm, BE = 10.5 cm.
| What | Formula | Symbols |
|---|---|---|
| Altitude | Vertex → opposite side at 90° | AP ⊥ BC |
| Median | Vertex → midpoint of opposite side | BD = DC |
| Orthocentre O | Altitudes meet | Inside / at right-angle vertex / outside |
| Centroid G | Medians meet; always inside | AG : GD = 2 : 1 |
| Centroid lengths | AG = 2/3 × AD, GD = 1/3 × AD | AD = 9 → AG = 6, GD = 3 |
Solve each one in your notebook first. Then open the solution and compare every step.

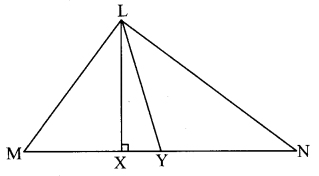

1. 1. In △LMN, seg LX meets MN at a right angle and Y is a point of MN with MY = YN (as marked). Name the altitude and the median.
Answer: Seg LX is an altitude and seg LY is a median.
2. 2. Draw an acute-angled △PQR, draw all its altitudes and name their meeting point O.
Answer: The three altitudes are concurrent and the orthocentre O lies inside the triangle.

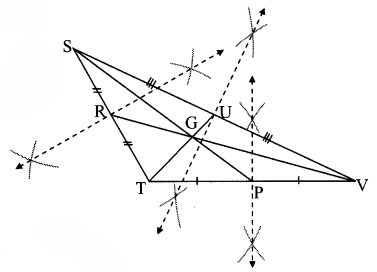

3. 3. Draw an obtuse-angled △STV, draw its medians and show the centroid.
Answer: The three medians meet at the centroid G, which lies inside the obtuse triangle.

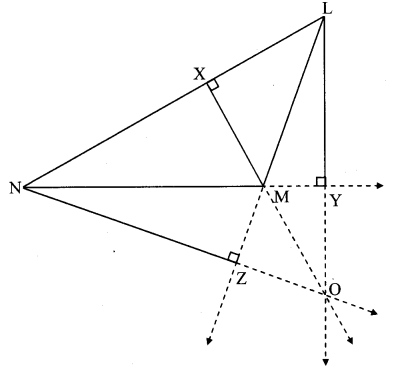

4. 4. Draw an obtuse-angled △LMN, draw its altitudes and denote the orthocentre by O.
Answer: The lines containing the altitudes meet at O, which lies outside the triangle (beyond the obtuse vertex M).

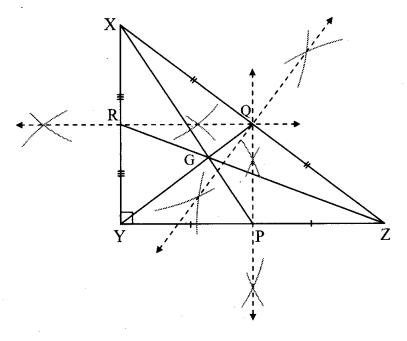

5. 5. Draw a right-angled △XYZ, draw its medians and show their point of concurrence G.
Answer: The three medians meet at the centroid G, inside the right-angled triangle.

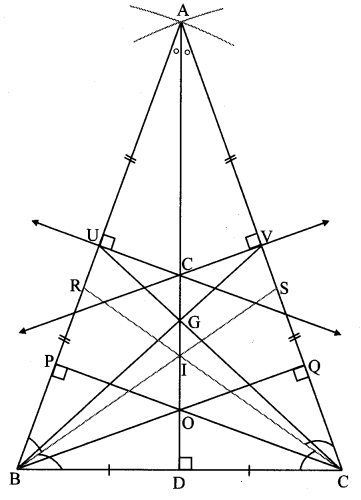

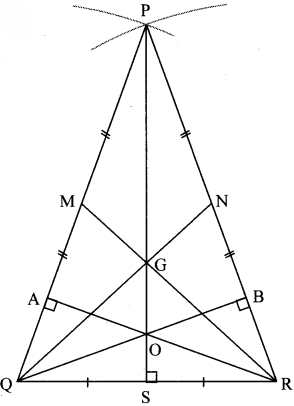

6. 6. Draw an isosceles triangle, draw all its medians and altitudes and write your observation about their points of concurrence.
Answer: The median and altitude from the vertex between the equal sides coincide, and the centroid and orthocentre both lie on that segment (they are different points, but on the same line).

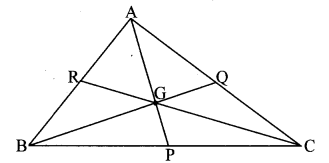

7. 7 (1). G is the centroid of △ABC with medians AP, BQ, CR. If l(RG) = 2.5, find l(GC).
Answer: l(GC) = 5
8. 7 (2). If l(BG) = 6, find l(BQ).
Answer: l(BQ) = 9
9. 7 (3). If l(AP) = 6, find l(AG) and l(GP).
Answer: l(AG) = 4 and l(GP) = 2
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. The segment from a vertex perpendicular to the opposite side is a…
Answer: B. Definition of altitude.
2. The segment from a vertex to the midpoint of the opposite side is a…
Answer: B. Definition of median.
3. Altitudes meet at the…
Answer: D. O.
4. Medians meet at the…
Answer: D. G.
5. The orthocentre of an obtuse-angled triangle lies…
Answer: D. The altitude lines meet outside.
6. The orthocentre of a right-angled triangle is…
Answer: C. The two legs are altitudes.
7. The centroid of an obtuse-angled triangle lies…
Answer: C. Always inside.
8. G divides each median in the ratio…
Answer: B. Vertex part is twice the other.
9. If RG = 2.5, then GC (on median CR) = …
Answer: C. GC = 2 × RG.
10. If BG = 6 on median BQ, BQ = …
Answer: A. GQ = 3, so 6 + 3.
11. If median AP = 6, then AG and GP are…
Answer: B. 2/3 and 1/3 of 6.
12. Median AD = 21 cm. GD = …
Answer: A. 21 ÷ 3.
13. In an isosceles triangle, the median from the top vertex is also…
Answer: D. It meets the base at 90°.

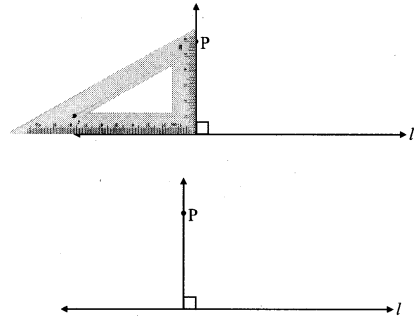

14. To draw altitudes we mainly use a…
Answer: A. Set-square gives 90°.
15. In △LMN, LX ⊥ MN and Y is the midpoint of MN. Seg LY is…
Answer: C. It joins L to a midpoint.
