Textbook: Mathematics – Class 8 (Balbharati, official free PDF) · pages 47–50
A parallelogram has both pairs of opposite sides parallel, a trapezium has only one pair, and a kite has two pairs of equal neighbouring sides. In this set you learn the angle and diagonal properties of these shapes, use them to find unknown angles with simple equations, and construct them.
Parallelogram: both pairs of opposite sides are parallel. Opposite sides are equal, opposite angles are equal, adjacent angles add to 180°, and the diagonals bisect each other.
Trapezium: exactly one pair of opposite sides is parallel. The two angles along each non-parallel side add to 180°.
Kite: one diagonal is the perpendicular bisector of the other. Two pairs of adjacent sides are equal, and one pair of opposite angles is equal.
Angle problems become equations: opposite angles of a parallelogram are equal; adjacent angles add to 180°; all four angles add to 360°.
To decide the type of a quadrilateral from its angles, look for pairs of consecutive angles adding to 180° — each such pair means a pair of parallel sides.
Get a ✓ Verified tutor for “Practice Set 8.3 – Parallelogram, Trapezium and Kite” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Adjacent angles of a parallelogram are (3x + 10)° and (2x + 20)°. Find them.
Answer: 100° and 80°
Opposite angles of a parallelogram are (4x − 10)° and (2x + 30)°. Find all its angles.
Answer: 70°, 110°, 70°, 110°
In kite ABCD, AB = CB = 5 cm, AD = CD = 7 cm and ∠BAD = 100°. Find ∠BCD and the perimeter.
Answer: ∠BCD = 100°, perimeter 24 cm
The angles of □ABCD in order are in the ratio 3 : 2 : 3 : 2. Find them and name the type.
Answer: 108°, 72°, 108°, 72°; a parallelogram
| What | Formula | Symbols |
|---|---|---|
| Parallelogram angles | opposite equal; adjacent sum 180° | 70° → 110°, 70°, 110° |
| Parallelogram diagonals | bisect each other | OX = OZ, OW = OY |
| Trapezium | one pair parallel; co-interior angles sum 180° | WZ ∥ XY → ∠W + ∠X = 180° |
| Kite | two pairs of equal adjacent sides; one diagonal ⟂ bisects the other | AB = CB, AD = CD |
Solve each one in your notebook first. Then open the solution and compare every step.
1. 1. Opposite angles of a parallelogram are (3x − 2)° and (50 − x)°. Find each angle.
Answer: 37°, 143°, 37°, 143°
2. 2(1) In parallelogram WXYZ (diagonals meet at O), WZ = 4.5 cm. Find XY.
Answer: XY = 4.5 cm
3. 2(2) YZ = 8.2 cm. Find XW.
Answer: XW = 8.2 cm
4. 2(3) OX = 2.5 cm. Find OZ.
Answer: OZ = 2.5 cm
5. 2(4) WO = 3.3 cm. Find WY.
Answer: WY = 6.6 cm
6. 2(5) ∠WZY = 120°. Find ∠WXY and ∠XWZ.
Answer: ∠WXY = 120°, ∠XWZ = 60°

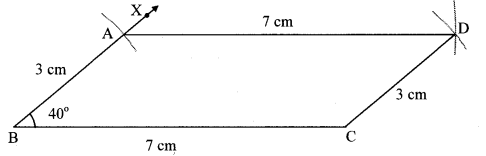

7. 3. Construct parallelogram ABCD with BC = 7 cm, ∠ABC = 40° and AB = 3 cm.
Answer: Parallelogram ABCD with angles 40°, 140°, 40°, 140°
8. 4. The consecutive angles of a quadrilateral are in the ratio 1 : 2 : 3 : 4. Find each angle and name the type, with reason.
Answer: 36°, 72°, 108°, 144°; it is a trapezium

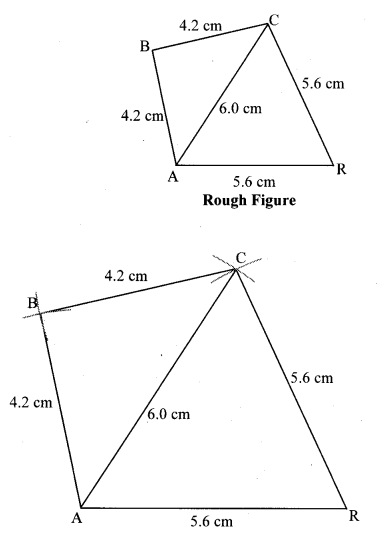

9. 5. Construct □BARC with BA = BC = 4.2 cm, AC = 6.0 cm and AR = CR = 5.6 cm.
Answer: □BARC is a kite (diagonal BR measures about 7.7 cm)

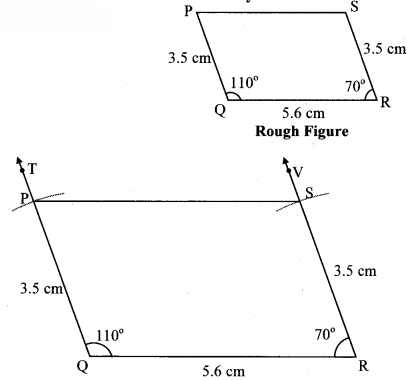

10. 6. Construct □PQRS with PQ = 3.5 cm, QR = 5.6 cm, RS = 3.5 cm, ∠Q = 110°, ∠R = 70°. If □PQRS is given to be a parallelogram, which data are unnecessary?
Answer: The book prints no answer. RS = 3.5 cm and ∠R = 70° are unnecessary: PQ, QR and ∠Q alone fix the parallelogram
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. A quadrilateral with only one pair of parallel sides is a…
Answer: C. Definition.
2. Adjacent angles of a parallelogram are…
Answer: B. They add to 180°.
3. One angle of a parallelogram is 75°. Its opposite angle is…
Answer: D. Opposite angles are equal.
4. Its adjacent angle is…
Answer: A. 180 − 75.
5. Diagonals of a parallelogram always…
Answer: A. That is the general property.
6. Adjacent angles (2x + 30)° and (x + 15)° of a parallelogram give x =
Answer: C. 3x + 45 = 180.
7. Opposite angles (3x − 2)° and (50 − x)° give x =
Answer: A. 4x = 52.
8. Angles in the ratio 2 : 3 : 2 : 3 (in order) make…
Answer: C. 72°, 108°, 72°, 108°: opposite angles equal.
9. In a kite, the diagonals are…
Answer: D. One is the perpendicular bisector of the other.
10. In parallelogram WXYZ with diagonals meeting at O, OX = 2.5 cm. OZ = ?
Answer: B. Diagonals bisect each other.
11. In that parallelogram, ∠WZY = 120°. ∠XWZ = ?
Answer: C. Adjacent angles are supplementary.
12. Which is NOT a property of every parallelogram?
Answer: B. Equal diagonals only in rectangles.
13. A kite has sides 4 cm, 4 cm, 6 cm, 6 cm. Its perimeter is…
Answer: C. 4 + 4 + 6 + 6.
14. Angles 36°, 72°, 108°, 144° in order form a…
Answer: C. 36 + 144 = 180 and 72 + 108 = 180 on the same pair of sides only.
15. In a trapezium, how many pairs of adjacent angles are supplementary?
Answer: D. The two pairs along the non-parallel sides.
