Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 108–112
A simple bar shows one quantity; a sub-divided bar shows a total and the parts that make it up. A percentage bar diagram goes one step further: every bar is drawn to the same height of 100, so the parts can be compared fairly. This set shows how to make and read both.
Sub-divided bar diagram: one bar per item (year, family), its height is the total, and it is split into parts in proportion to the components.
Percentage bar diagram: each component is turned into a percentage of its total, and every bar is drawn 100 units tall.
Percentages make comparisons fair when totals differ — ₹510 profit on ₹1,500 (34%) beats ₹600 on ₹2,000 (30%).
Each part of a bar is shaded differently and a key (legend) tells which shade means what.
Always state the scale, e.g. 1 cm = 10 units, and round percentages to whole numbers when asked.
Get a ✓ Verified tutor for “Practice Set 7.1 – Sub-divided and Percentage Bar Diagrams” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A shop sold 30 kg of rice and 20 kg of wheat on Monday. Describe its sub-divided bar (1 cm = 10 kg).
Answer: One 5 cm bar split 3 cm (rice) + 2 cm (wheat)
A class has 18 girls and 22 boys. Find the percentages.
Answer: 45% girls, 55% boys
Village A: 300 literate out of 400. Village B: 450 out of 500. Which has the higher literacy?
Answer: Village B (90% against 75%)
A percentage bar shows Food up to 55, Rent from 55 to 80, Others from 80 to 100. Find each share.
Answer: 55%, 25%, 20%
| What | Formula | Symbols |
|---|---|---|
| Percentage of a part | part ÷ total × 100 | 47 of 56 → 84% |
| Last part | 100 − (sum of other percentages) | 84% → 16% |
| Bar height (sub-divided) | total ÷ scale | 60 at 1 cm = 10 → 6 cm |
| Bar height (percentage) | always 100 | 1 cm = 10% → 10 cm |
Solve each one in your notebook first. Then open the solution and compare every step.

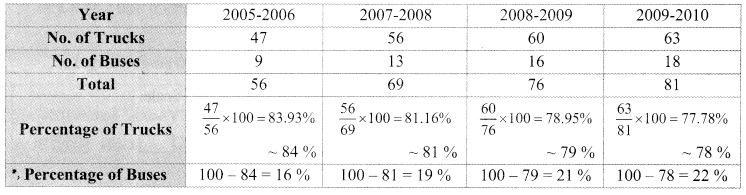

1. 1 (a). Trucks and buses (lakh): 2006-07: 47, 9; 2007-08: 56, 13; 2008-09: 60, 16; 2009-10: 63, 18. Convert to percentages (nearest integer).
Answer: Trucks : buses = 84% : 16%, 81% : 19%, 79% : 21%, 78% : 22%.

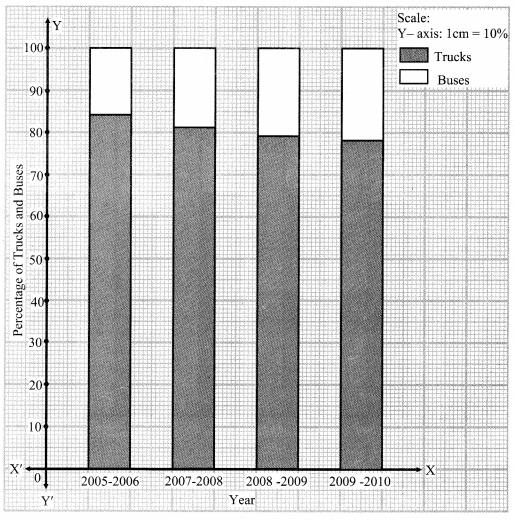

2. 1 (b). Draw the percentage bar diagram for these vehicles.
Answer: Four 100% bars; the trucks' share falls slowly from 84% to 78% while the buses' share rises from 16% to 22%.

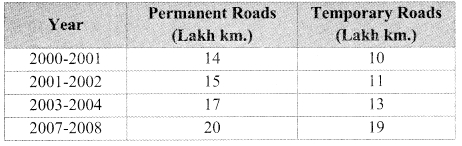

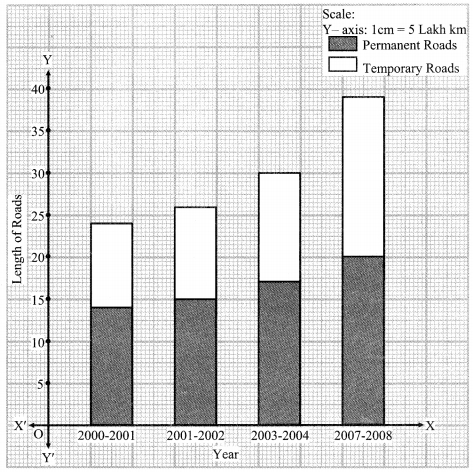

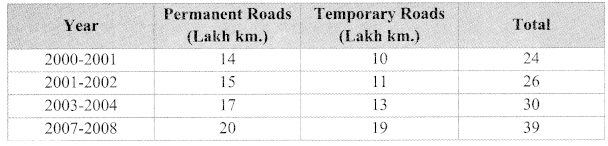

3. 2 (a). Roads (lakh km), permanent and temporary: 2000-01: 14, 10; 2001-02: 15, 11; 2002-03: 17, 13; 2003-04: 20, 19. Draw a sub-divided bar diagram.
Answer: Bars of totals 24, 26, 30, 39 lakh km, each split into permanent (bottom) and temporary (top) roads.

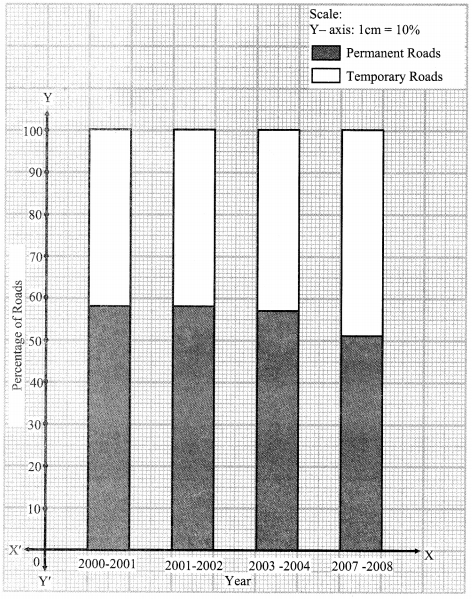

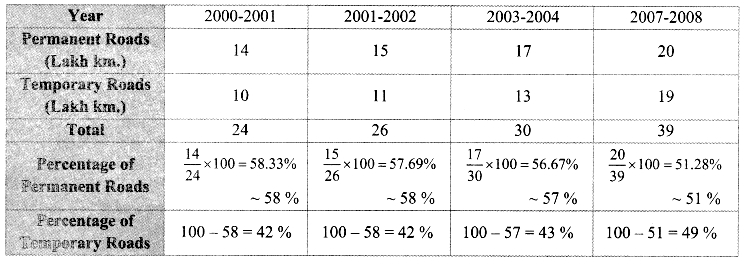

4. 2 (b). Draw the percentage bar diagram for the roads (nearest integer).
Answer: Permanent : temporary = 58 : 42, 58 : 42, 57 : 43, 51 : 49 — the share of temporary roads grows over the years.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. In a percentage bar diagram each bar represents…
Answer: D. All bars equal 100.
2. A part of 15 in a total of 60 is…
Answer: B. 15/60 × 100.
3. If trucks are 81% of vehicles, buses are…
Answer: D. 100 − 81.
4. Scale 1 cm = 10 units. A total of 45 needs a bar of…
Answer: B. 45 ÷ 10.
5. Which is better: 30 marks of 40 or 42 of 60?
Answer: C. Compare percentages.
6. A bar shows Food 0–60 and Clothes 60–75. Clothes =
Answer: D. 75 − 60.
7. Which diagram keeps all bars the same height?
Answer: D. Each bar is 100% tall.
8. 47 trucks and 9 buses: trucks percentage (nearest whole)…
Answer: C. 47/56 = 0.839.
9. 14 permanent and 10 temporary lakh km: permanent %…
Answer: B. 14/24 = 0.583.
10. The key of a diagram shows…
Answer: B. It explains the shading.
11. In a sub-divided bar, the total is shown by…
Answer: B. Height = total, to scale.
12. Percentages in one bar should add to…
Answer: A. The whole is 100%.
13. Which is NOT needed on a bar diagram?
Answer: B. A pie chart is a different diagram.
14. Expenses of two families with different incomes are best compared by…
Answer: B. Shares become comparable.
15. Temporary roads are 19 out of 39 lakh km. Their share (nearest whole) is…
Answer: A. 19/39 ≈ 48.7%.
