Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 5–8
A segment, a ray and a line can all be thought of as sets of points. Seeing them as sets lets us talk about their union and intersection. In this set you also meet congruent segments, the midpoint of a segment, comparing segments by length, perpendicular segments and the distance of a point from a line.
Seg AB is the set made of A, B and all points between them; its length is l(AB) = d(A, B).
Ray AB starts at A, passes through B and goes on for ever beyond B. Ray AB and ray BA are different.
Two rays with the same starting point that point in opposite directions along one line are opposite rays; together they make the whole line.
Segments of equal length are congruent (seg AB ≅ seg CD). Congruence is reflexive, symmetric and transitive.
The midpoint M of seg AB satisfies A-M-B and AM = MB; each part is half of AB. The distance of a point from a line is the length of the perpendicular segment to it.
Get a ✓ Verified tutor for “Practice Set 1.2 – Segment, Ray, Line, Congruent Segments and Midpoint” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
On a line the points K, L, M, N lie in that order. Find ray LM ∩ ray LK, and seg KL ∪ seg LN.
Answer: ray LM ∩ ray LK = {L}; seg KL ∪ seg LN = seg KN.
On a number line G = −4, H = 3, J = 6, K = 13. Is seg GH ≅ seg JK?
Answer: Yes, seg GH ≅ seg JK (both 7).
N is the midpoint of seg XY and XN = 4.7. Find XY. Also arrange segments of lengths 6.1, 5.8 and 6.4 in increasing order.
Answer: XY = 9.4; order 5.8 < 6.1 < 6.4.
On a number line B is at 1. Which points are 3 units from B? A point 2 units from the line l has its foot at F; what is l(PF)?
Answer: Points at −2 and 4; l(PF) = 2.
| What | Formula | Symbols |
|---|---|---|
| Length of a segment | l(AB) = d(A, B) | A = −3, B = 5 ⇒ AB = 8 |
| Congruent segments | seg AB ≅ seg CD ⇔ l(AB) = l(CD) | AB = CD = 4 cm |
| Midpoint | A-M-B and AM = MB ⇒ AM = ½ AB | AB = 10 ⇒ AM = 5 |
| Line from rays | line AB = ray AB ∪ opposite ray of ray AB | opposite rays share only the start point |
| Distance from a line | length of the perpendicular segment from the point | foot of perpendicular lies on the line |
Solve each one in your notebook first. Then open the solution and compare every step.
1. 1. Co-ordinates: A = −3, B = 5, C = 2, D = −7, E = 9. Are these pairs congruent? (i) seg DE, seg AB (ii) seg BC, seg AD (iii) seg BE, seg AD
Answer: (i) No (ii) No (iii) Yes, seg BE ≅ seg AD

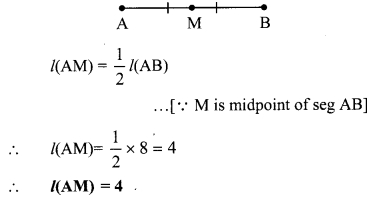

2. 2. M is the midpoint of seg AB and AB = 8. Find AM.
Answer: AM = 4

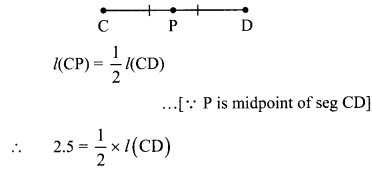

3. 3. P is the midpoint of seg CD and CP = 2.5. Find l(CD).
Answer: l(CD) = 5
4. 4. AB = 5 cm, BP = 2 cm, AP = 3.4 cm. Compare the three segments.
Answer: seg BP < seg AP < seg AB
5. 5 (i)–(iv). Figure: points T, S, R, P, Q lie in this order from left to right on one line. (i) Opposite ray of ray RP? (ii) ray PQ ∩ ray RP? (iii) seg PQ ∪ seg QR? (iv) Rays that contain seg QR?
Answer: (i) ray RS or ray RT (ii) ray PQ (iii) seg QR (iv) ray QR and ray RQ (also ray RP, ray QP, ray SQ…)
6. 5 (v)–(vii). Same figure. (v) A pair of opposite rays starting at R. (vi) Two rays starting at S. (vii) ray SP ∩ ray ST?
Answer: (v) ray RQ and ray RT (vi) ray SR and ray ST (vii) {S}, point S
7. 6. Figure: a number line marked from −6 to 6; R = −6, U = −5, Q = −4, L = −3, P = −2, A = 0, B = 2, C = 4, V = 5, D = 6. (i) Points equidistant from B (ii) a pair of points equidistant from Q (iii) find d(U,V), d(P,C), d(V,B), d(U,L).
Answer: (i) A and C; P and D (ii) L and U; P and R (iii) 10, 6, 3, 2
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. Which pair names the same figure?
Answer: B. A segment has no direction.
2. The starting point of ray XY is…
Answer: C. First letter.
3. Union of ray OA and its opposite ray is…
Answer: B. They cover the whole line.
4. Intersection of two opposite rays is…
Answer: A. They share only the common start.
5. seg PQ ≅ seg RS means…
Answer: A. Congruent = equal length.
6. If seg AB ≅ seg CD and seg CD ≅ seg EF then seg AB ≅ seg EF. This is…
Answer: C. Passes along a chain.
7. M is the midpoint of AB and AB = 12. AM = ?
Answer: B. Half of 12.
8. P is the midpoint of CD and CP = 4.5. CD = ?
Answer: A. CD = 2 × CP.
9. Number of midpoints of a segment:
Answer: A. Exactly one.
10. A = −5, B = 1, C = 4, D = 10. Which is true?
Answer: A. AB = 6 and CD = 6.
11. XY = 3.1, YZ = 2.9, XZ = 3.4. The shortest segment is…
Answer: D. 2.9 is smallest.
12. The distance of point C from line AB is measured along…
Answer: B. Perpendicular gives the distance.
13. Points K, L, M, N in order on a line. Ray LM contains…
Answer: B. Starts at L, goes through M and beyond.
14. Same order K, L, M, N: seg KM ∪ seg LN = ?
Answer: D. Together they cover K to N.
15. Same order K, L, M, N: seg KM ∩ seg LN = ?
Answer: C. The common part is from L to M.
