Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 21–24
This problem set revises the whole chapter on parallel lines: the angle properties of a transversal of parallel lines, the tests that prove lines parallel, and the angle sum of a triangle. Many questions are short proofs, so practise writing each statement with its reason.

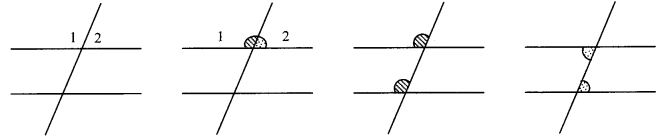

Parallel lines + transversal ⇒ corresponding angles equal, alternate angles equal, same-side interior angles supplementary.
Any one of those angle facts, the other way round, proves two lines parallel (the tests).
A transversal makes 8 angles; with parallel lines they take only two values that add up to 180°.
A line perpendicular to one of two parallel lines is perpendicular to the other too.
Bisectors of the two interior angles on one side of a transversal of parallel lines meet at a right angle.
Get a ✓ Verified tutor for “Problem Set 2 – Parallel Lines – Chapter Review” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Two parallel lines are cut by a transversal and one angle is 37°. List the possible measures of all eight angles.
Answer: Four angles of 37° and four of 143°.
Two same-side interior angles of parallel lines are in the ratio 4 : 5. Find them.
Answer: 80° and 100°
Lines p ∥ q. Line r makes an angle of 90° with p. What angle does it make with q?
Answer: 90°: r ⊥ q
Same-side interior angles of parallel lines are 124° and 56°. Their bisectors meet at Z. Find the angle at Z.
Answer: 90°
| What | Formula | Symbols |
|---|---|---|
| Corresponding / alternate angles | equal when lines are parallel | 40° ↔ 40° |
| Same-side interior angles | sum 180° when lines are parallel | 75° + 105° |
| Triangle angle sum | ∠A + ∠B + ∠C = 180° | 76° + 48° + 56° |
| Ratio split of 180° | a : b ⇒ 180° × a/(a + b), 180° × b/(a + b) | 3 : 7 ⇒ 54°, 126° |
Solve each one in your notebook first. Then open the solution and compare every step.
1. 1. Fill in the blanks: (i) sum of same-side interior angles of parallel lines: 0°/90°/180°/360° (ii) number of angles a transversal of two lines makes: 2/4/8/16 (iii) corresponding angle of a 40° angle (parallel lines): 40°/140°/50°/180° (iv) △ABC, ∠A = 76°, ∠B = 48°, ∠C: 66°/56°/124°/28° (v) other alternate interior angle of 75°: 105°/15°/75°/45°.
Answer: (i) C 180° (ii) C 8 (iii) A 40° (iv) B 56° (v) C 75°
2. 2. Ray PQ ⊥ ray PR. B is inside ∠QPR and A is outside it, with ray PB ⊥ ray PA. Draw the figure and name (i) a pair of complementary angles (ii) a pair of supplementary angles (iii) a pair of congruent angles.
Answer: (i) ∠QPB, ∠BPR (ii) ∠APB, ∠QPR (iii) ∠APQ ≅ ∠BPR (also ∠APB ≅ ∠QPR)
3. 3. Prove: if a line is perpendicular to one of two parallel lines, it is perpendicular to the other as well.
Answer: Proved: the line is perpendicular to the other parallel line too.
4. 4. Figure: horizontal lines l (upper) and m (lower) cut by a transversal slanting up to the right. At l, the angle above l on the left of the transversal is 130°, and x is marked below l on the right of it. At m, the angle above m on the right of the transversal is 50°, and y is marked below m on the left of it. Find x and y and show l ∥ m.
Answer: x = 130°, y = 50°; l ∥ m by the interior angles test
5. 5. Figure: lines AB ∥ CD ∥ EF (top to bottom), cut by transversal QP running from Q at the top left to P at the bottom right. x is at AB, below AB on the left of QP; y is at CD, above CD on the left of QP; z is at EF, above EF on the right of QP. If y : z = 3 : 7, find x.
Answer: x = 126°
6. 6. Figure: transversal p cuts horizontal line q (upper) and line r (lower), q ∥ r. At q the angles are b (upper left), a (upper right), c (lower left), d (lower right); at r they are f, e, g, h in the same positions. a = 80°. Find f and g.
Answer: f = 100°, g = 80°
7. 7. Figure: line BC (top) and line ED (bottom) are horizontal; line AB slants up to the right through B; line PF, through P, C, D and F, slants the same way, meeting the top line at C and the bottom line at D. Line AB ∥ line CF and line BC ∥ line ED. Prove ∠ABC = ∠FDE.
Answer: Proved: ∠ABC = ∠FDE
8. 8. Figure: line AB ∥ line CD, transversal PS meets AB at Q and CD at R. Rays QX and RX bisect ∠AQR and ∠QRC (X on the left of PS); rays QY and RY bisect ∠BQR and ∠QRD (Y on the right). Prove that QXRY is a rectangle.
Answer: Proved: □QXRY is a rectangle
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. A transversal cuts two parallel lines; the same-side interior angles add up to…
Answer: D. Interior angles theorem.
2. Number of angles formed by a transversal of two lines:
Answer: A. 4 at each crossing.
3. One angle is 40°; its corresponding angle (parallel lines) is…
Answer: B. Equal.
4. In △ABC, ∠A = 76°, ∠B = 48°. ∠C = ?
Answer: A. 180 − 124.
5. One alternate interior angle is 75°. The other is…
Answer: D. Equal.
6. Supplementary angles in the ratio 3 : 7 are…
Answer: A. k = 18°.
7. If a line is perpendicular to one of two parallel lines, it is … to the other.
Answer: D. Corresponding angles are both 90°.
8. Bisectors of the two same-side interior angles of parallel lines meet at…
Answer: D. Half of 180° is 90°, leaving 90°.
9. Line q ∥ r, transversal p; a = 80° (above q, right of p). Angle above r, left of p = ?
Answer: C. Corresponds to the angle above q on the left = 100°.
10. Same figure: angle below r, left of p = ?
Answer: A. Corresponds to the angle below q on the left, which is vertically opposite a.
11. Complementary angles add up to…
Answer: D. Definition.
12. Lines AB ∥ CD ∥ EF are cut by one transversal. An angle at AB can be carried to EF by…
Answer: A. Move through CD.
13. A quadrilateral with all four angles 90° is a…
Answer: A. Definition.
14. Two lines with same-side interior angles 130° and 50° are…
Answer: A. Sum 180°.
15. ∠PQR = 90° and a ray PB inside it makes ∠QPB = 35°. ∠BPR = ?
Answer: D. Complementary.
