Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 67–70
A rectangle, a rhombus and a square are all special parallelograms, so they keep every parallelogram property. On top of that, each has extra properties of its own, mostly about its diagonals. This set uses those extra facts to find lengths and angles, and to decide which family statements are true.
Rectangle: all angles 90°; its diagonals are congruent (and bisect each other).
Rhombus: all sides equal; its diagonals are perpendicular bisectors of each other and bisect the opposite angles.
Square: all sides equal and all angles 90°, so it has every property of both the rectangle and the rhombus.
With perpendicular diagonals, each side of a rhombus is the hypotenuse of a right triangle whose legs are half-diagonals.
Square ⊂ rhombus ⊂ parallelogram and square ⊂ rectangle ⊂ parallelogram.
Get a ✓ Verified tutor for “Practice Set 5.3 – Rectangle, Rhombus and Square” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Diagonals of rectangle PQRS meet at T. PR = 13 cm. Find QT, and if ∠TPQ = 28°, find ∠TQP.
Answer: QT = 6.5 cm, ∠TQP = 28°
A rhombus has diagonals 16 cm and 30 cm. Find its side and perimeter.
Answer: Side 17 cm, perimeter 68 cm
Square WXYZ has diagonals meeting at O. Find ∠WOX, ∠OWX and ∠XZY.
Answer: 90°, 45°, 45°
True or false: 'Every rectangle is a square.'
Answer: False
| What | Formula | Symbols |
|---|---|---|
| Rectangle diagonals | AC = BD, AO = BO = CO = DO | AC = 8 ⇒ BO = 4 |
| Rhombus diagonals | AC ⊥ BD, each bisects the other | angles at O are 90° |
| Rhombus side | side² = (d₁/2)² + (d₂/2)² | 10² + 10.5² = 14.5² |
| Square diagonal | d = s√2 | s = 5 ⇒ d = 5√2 |
| Square angles | diagonal makes 45° with each side | ∠JIK = 45° |
Solve each one in your notebook first. Then open the solution and compare every step.
1. 1. Diagonals of rectangle ABCD meet at O. If AC = 8 cm, find BO. If ∠CAD = 35°, find ∠ACB.
Answer: BO = 4 cm, ∠ACB = 35°
2. 2. In rhombus PQRS, PQ = 7.5. Find QR. If ∠QPS = 75°, find ∠PQR and ∠SRQ.
Answer: QR = 7.5, ∠PQR = 105°, ∠SRQ = 75°
3. 3. Diagonals of square IJKL meet at M. Find ∠IMJ, ∠JIK and ∠LJK.
Answer: ∠IMJ = 90°, ∠JIK = 45°, ∠LJK = 45°

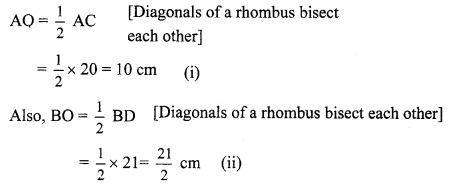

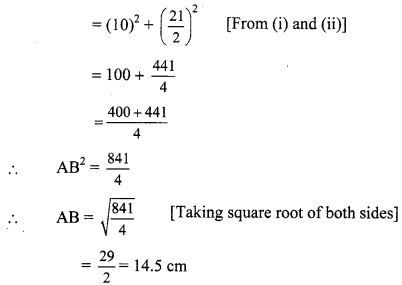

4. 4. Diagonals of a rhombus are 20 cm and 21 cm. Find its side and perimeter.
Answer: Side = 14.5 cm, perimeter = 58 cm
5. 5. True or false, with reasons: (i) every parallelogram is a rhombus; (ii) every rhombus is a rectangle; (iii) every rectangle is a parallelogram; (iv) every square is a rectangle; (v) every square is a rhombus; (vi) every parallelogram is a rectangle.
Answer: (i) F (ii) F (iii) T (iv) T (v) T (vi) F
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. Diagonals of a rectangle are…
Answer: D. Proved by SAS.
2. Diagonals of a rhombus meet at…
Answer: B. They are perpendicular.
3. Rhombus diagonals 12 cm and 16 cm. Side =
Answer: D. 6² + 8² = 100.
4. In square IJKL, ∠JIK =
Answer: D. The diagonal halves the right angle.
5. In rectangle ABCD, AC = 10 cm. BO =
Answer: D. Half of BD = AC.
6. Which statement is TRUE?
Answer: B. A square has four right angles.
7. Which statement is FALSE?
Answer: A. Angles need not be 90°.
8. Rhombus with one angle 75°. Its adjacent angle is…
Answer: C. Supplementary.
9. Perimeter of a rhombus with diagonals 20 cm and 21 cm…
Answer: C. Side 14.5 × 4.
10. A square's diagonal is 8√2 cm. Its side is…
Answer: D. d = s√2.
11. In rhombus EFGH, diagonal EG bisects…
Answer: A. △EFG ≅ △EHG.
12. In rectangle ABCD with diagonals meeting at O, △AOB is…
Answer: C. AO = BO.
13. A parallelogram with equal diagonals is a…
Answer: D. Converse of the rectangle property.
14. Which figure has diagonals equal AND perpendicular?
Answer: D. Only the square has both.
15. In rectangle ABCD, ∠CAD = 35°. ∠ACB =
Answer: A. Alternate angles, AD ∥ BC.
