Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 123–125
This problem set mixes every solid from the chapter — cuboid, cube, cylinder, cone and sphere — in practical settings: road rollers, a glass fish tank, a well, and a tent-shaped cone. The skill being tested is choosing the right formula. A roller pressing the ground or a well's inner wall is a cylinder's curved surface; water held in a tank is an inside volume; a ratio of radius to height becomes 5k and 12k. Read each situation slowly, decide the shape and the part needed, then calculate.
In one full turn a roller presses an area equal to its curved surface 2πrh; for n turns multiply by n.
The inner surface of a well is the curved surface of a cylinder, 2πrh.
For a container made of sheets of thickness t, subtract the thickness from the outside lengths to get the inside lengths before finding the volume.
When radius : height = a : b, write r = ak and h = bk, substitute into the formula and solve for k.
Cost = area (or volume) × rate per unit.
Get a ✓ Verified tutor for “Problem Set 9 – Surface Area and Volume – Revision” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A roller of diameter 0.7 m and length 1.5 m makes 200 turns. What area does it level? (π = 22/7)
Answer: 660 sq m.
An open box is made of 5 mm boards. Outside it measures 41 cm × 31 cm × 20.5 cm. Find its inside volume.
Answer: 24000 cubic cm (24 litres).
A cone has r : h = 3 : 4 and volume 301.44 cubic cm (π = 3.14). Find h and l.
Answer: h = 8 cm, l = 10 cm.
A cube's total surface area is 486 sq cm. Find its volume.
Answer: 729 cubic cm.
| What | Formula | Symbols |
|---|---|---|
| Roller area | n × 2πrh | 200 × 3.3 = 660 sq m |
| Well inner surface | 2πrh | r 2.1, h 10 → 132 sq m |
| Inside length (thickness t) | outside − 2t; open-top height: outside − t | 41 − 1 = 40 |
| Ratio method | r = ak, h = bk | 5 : 12 → 5k, 12k |
| Cone l = 3r | TSA = πr(4r) = 4πr² | 616 → r = 7 |
| Cost | quantity × rate | 132 × 52 = ₹6864 |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Q1. A road roller has diameter 0.9 m and length 1.4 m. What area of a field does it press in 500 rotations?
Answer: 1980 sq m.

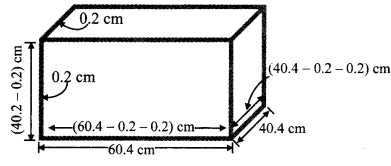

2. Q2. An open fish tank is made of 2 mm thick glass. Its outer length, breadth and height are 60.4 cm, 40.4 cm and 40.2 cm. Find the most water it can hold.
Answer: 96000 cubic cm.
3. Q3. A cone's radius and height are in the ratio 5 : 12 and its volume is 314 cubic m. Find its height and slant height (π = 3.14).
Answer: Height 12 m, slant height 13 m.
4. Q4. Find the radius of a sphere of volume 904.32 cubic cm (π = 3.14).
Answer: 6 cm.
5. Q5. A cube's total surface area is 864 sq cm. Find its volume.
Answer: 1728 cubic cm.

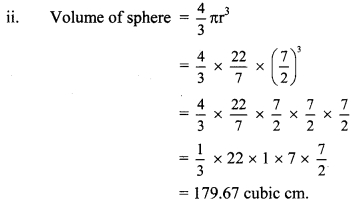

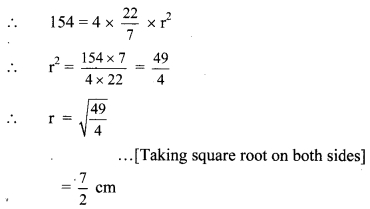

6. Q6. Find the volume of a sphere whose surface area is 154 sq cm.
Answer: ≈ 179.67 cubic cm.
7. Q7. A cone's total surface area is 616 sq cm and its slant height is three times its base radius. Find the slant height.
Answer: 21 cm.
8. Q8. A well has inner diameter 4.20 m and depth 10 m. Find its inner surface area and the cost of plastering it inside at ₹52 per sq m.
Answer: 132 sq m; ₹6864.
9. Q9. A road roller is 2.1 m long with diameter 1.4 m. It takes 500 rotations to level a ground. Find the area levelled and the cost at ₹7 per sq m.
Answer: 4620 sq m; ₹32340.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. The area a roller presses in one rotation equals its…
Answer: C. It rolls out its curved surface.
2. Roller d = 0.9 m, length 1.4 m, 500 turns (π = 22/7). Area =
Answer: D. 3.96 × 500.
3. A 2 mm glass sheet is how thick in cm?
Answer: C. 10 mm = 1 cm.
4. Open tank outer length 60.4 cm, glass 0.2 cm. Inner length =
Answer: D. Wall on both ends: 60.4 − 0.4.
5. Cone r : h = 5 : 12, volume 314 cubic m (π = 3.14). h =
Answer: B. 314k³ = 314, k = 1.
6. Sphere volume 904.32 cubic cm (π = 3.14). r =
Answer: D. r³ = 216.
7. Cube total area 864 sq cm. Volume =
Answer: A. l = 12.
8. Sphere area 154 sq cm (π = 22/7). Radius =
Answer: A. r² = 12.25.
9. Cone TSA 616 sq cm, l = 3r (π = 22/7). l =
Answer: A. 4πr² = 616 → r = 7.
10. Well d = 4.2 m, depth 10 m (π = 22/7). Inner surface =
Answer: C. 22/7 × 4.2 × 10.
11. Plastering 132 sq m at ₹52 per sq m costs…
Answer: B. 132 × 52.
12. Roller length 2.1 m, d 1.4 m: area per turn (π = 22/7)?
Answer: A. 22/7 × 1.4 × 2.1.
13. Levelling 4620 sq m at ₹7 per sq m costs…
Answer: D. 4620 × 7.
14. For an open-top tank, the inner height is…
Answer: A. Only the bottom sheet.
15. Which formula gives the water a tank can hold?
Answer: D. Capacity uses inside measures.
