Textbook: Biology – Class 11 (Balbharati, official free PDF) · pages 193–214
How do a white blood cell, a sperm and a sprinter all move? This chapter covers types of movement and locomotion, antagonistic muscles, the structure of actin and myosin, the sliding filament theory, muscle twitch, tetanus and oxygen debt, levers in the body, the 206 bones of the human skeleton bone by bone, types of joints, and muscle and bone disorders — with worked answers to every exercise question.
Movement is any change in position of a body part; locomotion is movement of the whole body from place to place. Every locomotion is a movement but not every movement is locomotion. Four types: amoeboid (pseudopodia, leucocytes), ciliary (cilia, Paramecium), flagellar or whorling (flagella, sperm) and muscular (muscles with bones and joints).
Skeletal muscles pull on bones through tendons. They work in antagonistic pairs (biceps flexes and triceps extends the elbow) because a muscle can only pull, never push. The end on the fixed bone is the origin, the end on the moving bone the insertion.

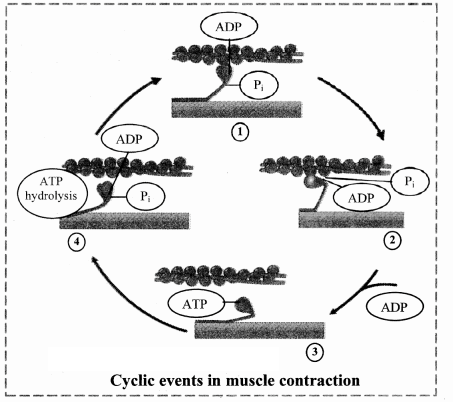

A sarcomere contains thick myosin and thin actin filaments. According to the sliding filament theory, a nerve impulse releases Ca²⁺, Ca²⁺ binds troponin, tropomyosin moves off actin's binding sites, myosin heads split ATP, attach and pull actin towards the centre. Relaxation also uses ATP. Without ATP after death, muscles lock (rigor mortis).

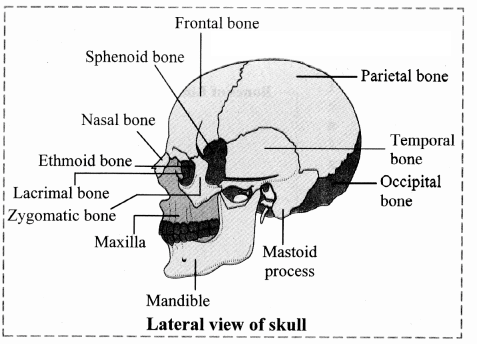

The adult skeleton has 206 bones: 80 axial (skull 22, hyoid 1, ear ossicles 6, vertebrae 26, sternum 1, ribs 24) and 126 appendicular (girdles and limbs). Bone + joint + muscle work like levers of all three classes.

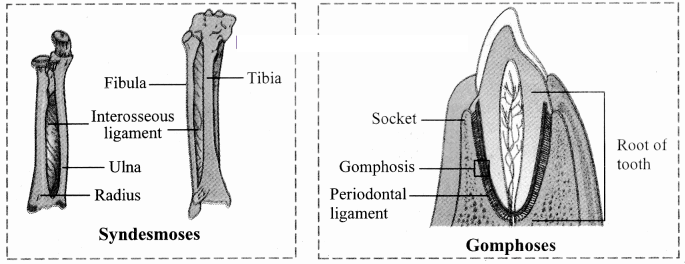

Joints are fibrous (immovable: sutures, syndesmoses, gomphoses), cartilaginous (slightly movable: synchondroses, symphyses) or synovial (freely movable: ball and socket, hinge, pivot, condyloid, saddle, gliding). Disorders include muscular dystrophy, myasthenia gravis, osteoarthritis, gout, rheumatoid arthritis and osteoporosis.
Get a ✓ Verified tutor for “Skeleton and Movement” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Raju does biceps curls with a dumbbell. Which joints move and which stay still?
Answer: Only the elbow joint moves; the shoulder and wrist stay stationary.

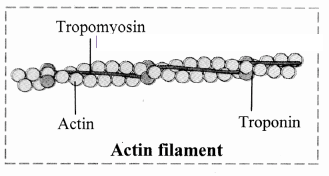

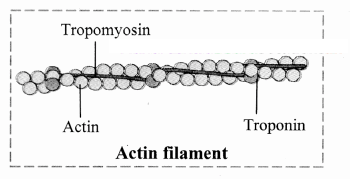

Describe in words a labelled diagram of an actin filament.
Answer: Labels: G-actin, F-actin, tropomyosin, troponin, active (myosin-binding) site.
Explain the role of calcium ions in contraction and relaxation.
Answer: Ca²⁺ is the switch: its presence allows cross bridges to form; its removal ends contraction.
Why can a red muscle work for long while a white muscle tires quickly?
Answer: Red muscle works aerobically and resists fatigue; white muscle works anaerobically and fatigues sooner.

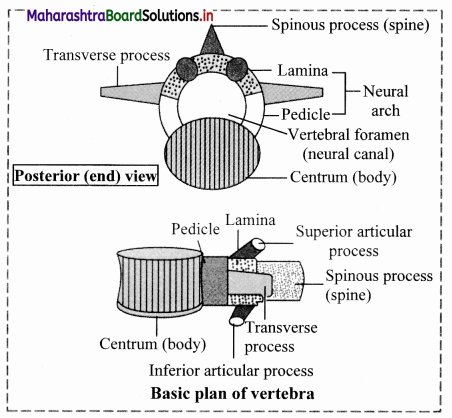

How do you identify a thoracic vertebra?
Answer: Heart-shaped centrum with rib facets = thoracic vertebra.
Differentiate between the skeleton of the palm (hand) and the foot.
Answer: Hand: 8 + 5 + 14 = 27 bones; foot: 7 + 5 + 14 = 26 bones.
Classify the joints at the shoulder, elbow, skull bones, intervertebral discs and atlas–axis.
Answer: Ball and socket, hinge, suture, symphysis, pivot.
| Part | Bones | Number |
|---|---|---|
| Skull | Cranium 8 + facial 14 | 22 |
| Hyoid and ear ossicles | Hyoid 1; malleus, incus, stapes × 2 | 1 + 6 |
| Vertebral column | 7 cervical, 12 thoracic, 5 lumbar, sacrum, coccyx | 26 |
| Thoracic cage | Sternum 1 + 12 pairs of ribs | 25 (axial total 80) |
| Pectoral girdles | Clavicle + scapula on each side | 4 |
| Upper limbs | Humerus, radius, ulna, 8 carpals, 5 metacarpals, 14 phalanges | 30 × 2 = 60 |
| Pelvic girdle | Two hip (coxal) bones | 2 |
| Lower limbs | Femur, patella, tibia, fibula, 7 tarsals, 5 metatarsals, 14 phalanges | 30 × 2 = 60 (appendicular total 126) |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Choose the correct option: A. functional unit of striated muscle; B. broken ankle bone; C. muscle fatigue due to; D. NOT an antagonistic pair; E. sprained foot in hot salt water; F. role of calcium; G. hypersecretion of parathormone; H. type of suture between two nasal bones (four suture sketches).
Answer: A. Sarcomere. B. Tarsals. C. Lactic acid. D. Sphincter–supinator — they do not act against each other at one joint. E. Osmosis — the hypertonic salt water draws excess tissue fluid out. F. It binds troponin, changing its shape so actin's binding sites are exposed. G. Osteoporosis — too much parathormone removes calcium from bone. H. The sketch with plain square edges meeting end to end — a butt joint.
2. Short answers: (A) What contraction occurs in your neck muscles while you read? (B) Observe the diagram of the atlas and state the importance of A, B and C. (C) Raju trains biceps with dumbbells — which joints stay stationary, which move?
Answer: (A) A steady, sustained contraction of the neck (mainly back-of-neck) muscles — partial, tonic or isometric contraction — that holds the head up and slightly bent without visible movement. (B) A, the transverse ligament, divides the atlas ring and holds the odontoid process of the axis in the front compartment so it cannot press on the spinal cord. B, the back part of the vertebral foramen, is where the spinal cord passes safely. C, the large facet on the upper surface, receives an occipital condyle of the skull, forming the 'yes' joint that lets us nod. (C) The elbow moves (flexion and extension); the shoulder and wrist are kept stationary.
3. (D) A passer-by tied a wooden plank to Moses's fractured leg before he was taken to hospital. Was this essential? Why? (E) Why can a sprain be more painful than a fracture? (F) Why does red muscle work longer than white muscle?
Answer: (D) Yes. The plank acts as a splint: it keeps the broken ends from moving, preventing further damage to muscles, nerves and blood vessels, stopping a closed fracture becoming open, and reducing pain and bleeding. (E) A sprain is a stretch or tear of ligaments around a joint. Ligaments and joint capsules have many pain receptors, the joint swells quickly with fluid, every movement stretches the injured tissue, and ligaments have a poor blood supply so they heal slowly; a cleanly broken and immobilised bone may hurt less. (F) Red fibres are rich in myoglobin, mitochondria and capillaries, so they make ATP aerobically and produce little lactic acid; white fibres have few mitochondria and little myoglobin, depend on anaerobic glycolysis, build up lactic acid and tire quickly.

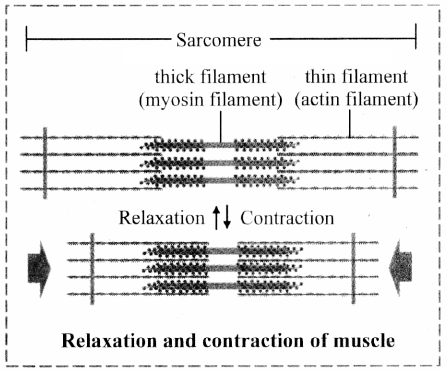

4. (A) How is the sarcomere suited to contraction? Explain by the sliding filament theory. (C) How do the structures of actin and myosin help contraction?
Answer: (A) A sarcomere lies between two Z lines. Thin actin filaments attach to each Z line and point inward; thick myosin filaments sit in the middle (A band) with heads facing both ends, so the heads on each half pull actin towards the centre. When stimulated, Ca²⁺ is released, binds troponin, tropomyosin moves aside, myosin heads split ATP, attach to actin and tilt, pulling the actin inward. The I band and H zone narrow and the Z lines come closer, but the filaments keep their length; many sarcomeres shortening together shorten the whole muscle. (C) Myosin's heads stick out as cross bridges, have ATPase to release energy and can hinge to make the power stroke; tails point to the centre so both halves pull inward. Actin has binding sites for myosin; tropomyosin covers them at rest so the muscle stays relaxed, and troponin acts as a calcium sensor that uncovers them only when an impulse arrives.
5. (B) Ragini, 50, gets hairline cracks in her feet after minor jerks. What is the cause, why has it occurred, what precautions should she have taken and what care should she take now?
Answer: She most probably has osteoporosis. Around menopause oestrogen falls, and bone breakdown outpaces bone formation; low dietary calcium and vitamin D and little exercise make it worse, so her bones have become porous and brittle and crack with small jerks. Earlier she should have taken enough calcium (milk, ragi, green leafy vegetables), vitamin D (sunlight), protein, and done regular weight-bearing exercise to build peak bone mass, and avoided smoking and excess caffeine. Now she should take the prescribed calcium, vitamin D and bone medicines, have her bone density checked, walk and exercise carefully, wear firm footwear and make her home safe to avoid falls.
6. (D) Justify the structure of the atlas and axis with respect to their position and function. (E) Report D: uric acid 9.2 (normal 2.5–7.0), blood urea nitrogen 24 mg/dl (normal 10–20). Diagnose.
Answer: (D) The atlas sits directly under the skull: it is a ring without a centrum or spine, with large kidney-shaped upper facets that cradle the occipital condyles and allow nodding ('yes'). Its foramen is large and divided by the transverse ligament — the front part holds the odontoid process of the axis, the back part the spinal cord. The axis's centrum projects upward as the odontoid process (the atlas's 'missing' centrum) on which the atlas and skull rotate side to side ('no', pivot joint). (E) High uric acid (hyperuricaemia) suggests gouty arthritis — urate crystals deposit in joints, often of the foot, causing painful swollen joints. The raised blood urea nitrogen hints that the kidneys are not clearing wastes well, which itself raises uric acid. Note: the report prints the uric acid unit as mg/l; uric acid is normally given in mg/dl (2.5–7.0 mg/dl).
7. Write short notes on (A) actin filament, (B) myosin filament, (C) role of calcium ions in contraction and relaxation.

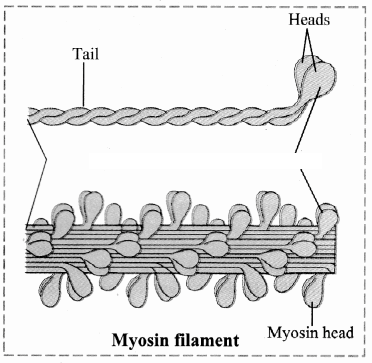

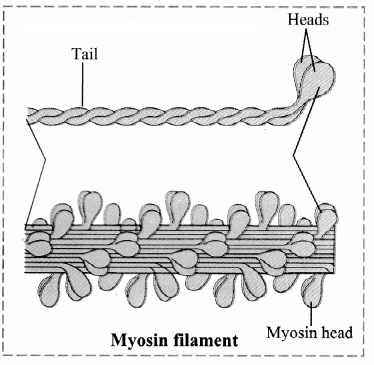

Answer: (A) Actin filament: thin filament made of F-actin — two twisted strands of G-actin, each unit with bound ADP and a myosin-binding active site; two tropomyosin strands lie along it, covering the active sites at rest; troponin complexes (three subunits) sit at intervals and bind Ca²⁺, actin and tropomyosin. (B) Myosin filament: thick filament built of many myosin molecules; each has two heavy chains twisted into a tail with two globular heads and four light chains; the heads form cross bridges, carry ATPase and point to the sides while tails point to the centre; myosin makes up about 55% of muscle protein. (C) Calcium: an impulse spreading along the T-tubules makes the sarcoplasmic reticulum release Ca²⁺; Ca²⁺ binds troponin, tropomyosin shifts, active sites open, cross bridges form and the muscle contracts. When stimulation stops Ca²⁺ is pumped back using ATP, the sites are covered again and the muscle relaxes.

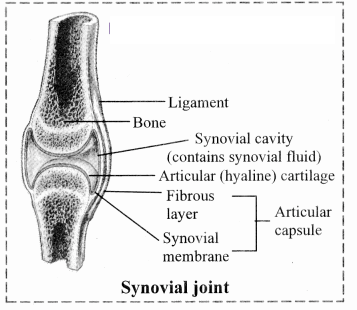

8. Draw labelled diagrams (describe in words): (A) synovial joint, (B) different cartilaginous joints. Project: identify diagrams A, B and C (head on neck, leg on tiptoe, bent arm).

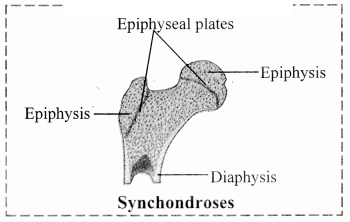

Answer: (A) Synovial joint: two bone ends facing each other, each capped with articular (hyaline) cartilage; between them the synovial cavity filled with synovial fluid; around them the articular capsule, whose outer fibrous layer joins the periosteum and whose inner lining is the synovial membrane; ligaments outside the capsule. (B) Synchondrosis: a long bone showing the epiphysis and diaphysis separated by a band of hyaline cartilage (epiphyseal plate), also the first rib joined to the sternum by cartilage. Symphysis: two vertebral bodies with a fibrocartilage intervertebral disc between them, or the two pubic bones joined at the pubic symphysis. Project: A — the skull balanced on the atlas, a class I lever (fulcrum in the middle, neck muscles behind, face in front). B — the leg raised on the toes, a class II lever (fulcrum at the toes, body weight in the middle, calf muscles pulling the heel). C — the forearm bent by the biceps, a class III lever (fulcrum at the elbow, biceps effort in the middle, load in the hand).
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. The functional unit of striated muscle is…
Answer: D. The segment between two Z lines contracts.
2. A person breaks an ankle bone. Which bones are involved?
Answer: B. Ankle bones are tarsals.
3. Muscle fatigue is due to accumulation of…
Answer: D. Anaerobic glycolysis produces lactic acid.
4. Which is NOT an antagonistic pair?
Answer: C. A sphincter and a supinator act on different parts.
5. Role of Ca²⁺ in contraction is to…
Answer: A. Troponin–tropomyosin moves aside.
6. Hypersecretion of parathormone can lead to…
Answer: A. Excess parathormone pulls calcium out of bone.
7. The suture between the two nasal bones is a…
Answer: A. It has square edges.
8. Soaking a sprained foot in strong salt water reduces swelling by…
Answer: B. Water moves out of the tissues into the hypertonic solution.
9. The pivot joint between atlas and axis lets you…
Answer: A. The atlas turns round the odontoid process.
10. Bending the forearm at the elbow is an example of a…
Answer: A. Effort (biceps) lies between fulcrum and load.
11. Ribs 11 and 12 are called…
Answer: C. They have no front attachment.
12. The sella turcica is part of the…
Answer: B. It holds the pituitary gland.
13. Intervertebral discs form which type of joint?
Answer: A. A fibrocartilage disc in the midline.
14. Synovial fluid is viscous because of…
Answer: B. Hyaluronic acid gives it thickness.
15. Myasthenia gravis affects the…
Answer: C. Antibodies block acetylcholine receptors.
