Textbook: Biology – Class 12 (Balbharati, official free PDF) · pages 153–181
Every cell needs a steady supply of oxygen and food and a way to get rid of carbon dioxide. This chapter links two systems that do this together. The first half covers respiratory surfaces in plants and animals, the human respiratory tract, breathing mechanics, lung volumes, exchange and transport of O₂ and CO₂, control of breathing and common lung disorders. The second half covers transport: open and closed, single and double circulation, blood and its cells, clotting, the structure and working of the human heart, the cardiac cycle, blood vessels, pulse, blood pressure, heart diseases, the ECG and the lymphatic system. Every exercise question, including the numericals, is solved at the end.
A respiratory surface must be large, thin, moist and well supplied with blood. Plants exchange gases by diffusion through stomata, lenticels and air spaces; animals use the body surface, tracheae, book lungs, gills or lungs.
Air passes nostrils → nasal cavity → pharynx → larynx → trachea → bronchi → bronchioles → alveoli. Inspiration is active (diaphragm and external intercostals contract, thoracic volume rises, pressure falls); quiet expiration is passive. Typical volumes: tidal 500 ml, IRV 2000–3000 ml, ERV 1000–1100 ml, residual about 1100–1200 ml, vital capacity 4100–4600 ml.
Gases diffuse down partial-pressure gradients (alveolar pO₂ 104 vs 40 mmHg in venous blood; pCO₂ 45 vs 40). About 97 % of O₂ travels as oxyhaemoglobin and its sigmoid dissociation curve shifts right with more CO₂, H⁺, heat or 2,3-DPG (Bohr effect). CO₂ travels about 70 % as bicarbonate (carbonic anhydrase, chloride shift), 23 % as carbaminohaemoglobin and 7 % dissolved. Breathing is controlled by centres in the medulla and pons, chemoreceptors and the Hering–Breuer reflex.

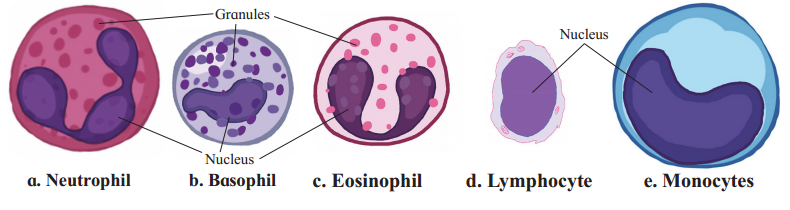

Blood (4–6 L; plasma about 55 %, cells about 45 %) contains RBCs (gas transport, 120-day life), five kinds of WBCs (defence) and platelets (clotting). Clotting is a cascade ending in thrombin turning fibrinogen into fibrin. Humans have closed double circulation with a four-chambered heart whose beat starts in the SA node and spreads via the AV node, bundle of His and Purkinje fibres.
One cardiac cycle takes 0.8 s (atrial systole 0.1 s, ventricular systole 0.3 s, joint diastole 0.4 s); cardiac output = stroke volume × heart rate ≈ 70 ml × 72 ≈ 5 L/min. Arteries, veins and capillaries differ in wall structure. Normal BP is 120/80 mmHg, measured with a sphygmomanometer; hypertension, atherosclerosis and angina are common disorders; the ECG shows P, QRS and T waves; lymph returns tissue fluid to the blood.
Get a ✓ Verified tutor for “Respiration and Circulation” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A student has TV = 500 ml, IRV = 2500 ml, ERV = 1000 ml and RV = 1200 ml, breathing 14 times a minute with 150 ml dead space. Find vital capacity, total lung capacity, minute ventilation and alveolar ventilation.
Answer: VC 4.0 L, TLC 5.2 L, 7.0 L/min breathed, of which 4.9 L/min actually reaches the alveoli.
A person has 15 g of haemoglobin per 100 ml of blood, each gram carrying 1.34 ml O₂ when fully saturated. Arterial blood is 97 % saturated and venous blood 75 %. How much O₂ do the tissues take from each 100 ml of blood?
Answer: About 4.4 ml O₂ per 100 ml blood (roughly 22 % of the load) at rest — a large reserve for exercise.
At rest, Arjun's heart rate is 75 beats/min and stroke volume 80 ml. During a run his rate rises to 150 and stroke volume to 110 ml. Find his cardiac output in both states and the length of one cardiac cycle at rest.
Answer: 6.0 L/min at rest (cycle 0.8 s) rising to 16.5 L/min — 2.75 times more — while running.
| Quantity | Normal value | Note |
|---|---|---|
| Tidal volume | 500 ml | Normal quiet breath |
| Vital capacity | TV + IRV + ERV ≈ 4100–4600 ml | Measured by spirometer |
| Alveolar pO₂ / pCO₂ | 104 / 40 mmHg | Venous blood 40 / 45 mmHg |
| O₂ carried by Hb | 97 % | 3 % dissolved |
| CO₂ transport | 70 % HCO₃⁻, 23 % carbamino-Hb, 7 % dissolved | Chloride shift |
| RBC count | 5.1–5.8 million/mm³ (men) | Life 120 days |
| WBC count | 5000–11000/mm³ | Neutrophils most numerous |
| Platelets | 2.5–4.5 lakh/mm³ | From megakaryocytes |
| Cardiac cycle | 0.8 s | AS 0.1, VS 0.3, joint diastole 0.4 |
| Cardiac output | CO = SV × HR ≈ 70 × 72 ≈ 5 L/min | Rises in exercise |
| Blood pressure | 120/80 mmHg | Hypertension ≥ 140/90 |
| ECG waves | P, QRS, T | Atrial dep., ventricular dep., ventricular repol. |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Q.1 MCQs: (1) Muscle separating thorax and abdomen. (2) Minimum plasma membranes O₂ crosses from alveolus to Hb in RBC. (3) Sound-producing organ. (4) Extra air inhaled beyond TV. (5) Muscle that contracts with external intercostals. (6) Movement of cytoplasm. (7) Animal without closed circulation. (8) Diapedesis by. (9) Pacemaker. (10) Without nucleus. (11) Cockroach circulation. (12) Diapedesis seen in. (13) Inferior vena cava valve. (14) Atrial depolarisation wave. (15) Fluid in intercellular spaces.
Answer: (1) b. diaphragm. (2) d. five. (3) a. larynx. (4) b. I.R.V. (5) d. diaphragm. (6) b. cyclosis. (7) c. butterfly. (8) d. leucocytes. (9) a. SA node. (10) a. red blood corpuscle. (11) a. open. (12) b. WBC. (13) c. Eustachian valve. (14) a. P. (15) c. interstitial fluid.
2. Q.2 Match the respiratory surface with the organism: plasma membrane, lungs, external gills, internal gills, trachea — insect, salamander, bird, Amoeba, fish. Q.3 (1) Why C-shaped tracheal rings? (2) Why is insect respiration called direct? (3) Why is alveolar exchange rapid? (4) Organ preventing food entering the trachea.
Answer: Q.2: Plasma membrane – Amoeba; lungs – bird; external gills – salamander; internal gills – fish; trachea – insect. Q.3: (1) Cartilage keeps the trachea from collapsing during inspiration, while the open back of the 'C' lets the oesophagus behind it expand when food is swallowed. (2) Tracheal tubes carry air straight to the tissues, so O₂ and CO₂ are exchanged with cells directly without blood transporting them. (3) The respiratory membrane is extremely thin, the alveolar surface is enormous (about 70–100 m²), it is moist and covered by a dense capillary network, and steep partial-pressure gradients are maintained by ventilation and blood flow. (4) The epiglottis.
3. Q.4 (1) Why breathe through the nose rather than the mouth? (2) Correct the incorrect statement: (a) large surface area, (b) kept dry, (c) thin, may be 1 mm or less. (3) Identify: (a) spasmodic contraction of expiratory muscles with forceful expulsion through nose and mouth; (b) an inspiration followed by many short convulsive expirations with facial expression. (4) Blood plasma. (5) Blood clotting.
Answer: (1) Nasal hairs and mucus filter dust and microbes, the vascular respiratory part warms and moistens the air, and smell can warn of harmful gases; mouth breathing sends cold, dry, unfiltered air to the lungs. (2) (b) is wrong: a respiratory surface must be kept moist. (c) is also imprecise — the alveolar membrane is far thinner than 1 mm, under 1 µm. (3) (a) Sneezing. (b) Laughing. (4) Plasma is the straw-coloured, slightly alkaline fluid part of blood (about 55 %). It is about 90 % water, 7–8 % proteins (albumin for osmotic pressure, globulins including antibodies, fibrinogen and prothrombin for clotting), about 1 % salts (Na⁺, K⁺, Ca²⁺, Cl⁻, HCO₃⁻), and small amounts of glucose, amino acids, fats, urea, hormones, vitamins, heparin and dissolved gases. It transports nutrients, wastes, hormones and heat and helps maintain pH. (5) Damage to tissue (extrinsic) or contact with a rough surface (intrinsic) starts a cascade of clotting factors that activates factor X; this forms prothrombinase which, with Ca²⁺, changes prothrombin to thrombin; thrombin changes soluble fibrinogen into insoluble fibrin threads, which trap platelets and blood cells to form a clot that seals the wound.
4. Q.4 (6) Pericardium. (7) Valves of the heart. (8) Role of papillary muscles and chordae tendineae. (9) Factors affecting blood pressure.
Answer: (6) A double sac around the heart: outer tough fibrous pericardium that anchors and protects it, and inner serous pericardium with a parietal layer and a visceral layer (epicardium); the pericardial space between them holds pericardial fluid that lubricates, cushions against shocks and keeps the heart moist. (7) Tricuspid valve between right atrium and ventricle; bicuspid (mitral) valve between left atrium and ventricle; pulmonary semilunar valve at the pulmonary trunk and aortic semilunar valve at the aorta, each with three cusps; Eustachian valve at the inferior vena cava opening; Thebesian valve at the coronary sinus. They keep blood flowing one way. (8) Chordae tendineae are tough cords joining the AV valve cusps to papillary muscles on the ventricle wall. When the ventricles contract the papillary muscles also contract and pull the chordae tight, so the cusps close firmly and cannot be pushed back into the atria. (9) Cardiac output, peripheral resistance (arteriole diameter; vasoconstrictors raise BP), blood volume (falls after blood loss), viscosity, elasticity of arteries (less with age), total vessel length, venous return, obesity, emotions and hormones, exercise, sleep, age and sex.
5. Q.5 Give reasons: (1) Closed circulation is more efficient than open. (2) Human heart is myogenic and autorhythmic. (3) Heart-transplant patients need lifelong immunosuppressants. (4) Arteries are thicker than veins. (5) Left ventricle is the thickest chamber. Q.6 Distinguish: (1) open and closed circulation, (2) artery and vein, (3) blood and lymph, (4) blood and lymph capillary.
Answer: Q.5 (1) Blood stays inside vessels at high pressure, flows fast, can be directed to organs that need it, and carries respiratory pigment — so supply is quicker and better controlled. (2) The beat begins in specialised cardiac muscle (the SA node), not in a nerve, and it sets its own rhythm, so the heart beats even when its nerves are cut. (3) The donor heart has foreign antigens; the recipient's T-cells would attack and reject it, so immunosuppressants are needed for life. (4) Arteries receive blood at high pressure in pulses from the ventricles, so they need thick muscular and elastic walls; veins carry blood at low pressure. (5) It pumps blood through the whole systemic circuit against high resistance, whereas other chambers pump only to the next chamber or the nearby lungs. Q.6 (1) Open: blood in sinuses/haemocoel, low pressure, slow, no respiratory pigment usually — arthropods; closed: blood in vessels, high pressure, fast, pigment present — vertebrates, annelids. (2) Artery: away from heart, thick muscular wall, narrow lumen, no valves, pulsates, mostly oxygenated, deep; vein: to heart, thin wall, wide lumen, valves, no pulse, mostly deoxygenated, often superficial. (3) Blood: red, has RBCs, platelets and many proteins, flows in blood vessels driven by the heart; lymph: colourless, no RBCs or platelets, fewer proteins, many lymphocytes, flows slowly in lymph vessels. (4) Blood capillary: joins arterioles to venules, open at both ends, carries blood; lymph capillary: blind-ended, very permeable, collects tissue fluid and proteins, carries lymph.
6. Q.7 (1) Smita fainted while working in a closed garage with an engine running — why and treatment? (2) Shreyas began wheezing after a winter morning in a garden — condition and treatment? (3) Why is a pulse felt in the wrist or neck but not over a vein? (4) Pulse rate 68, cardiac output 5500 cm³ — find stroke volume. (5) Which vessel of the heart has the most O₂? (6) With atrial systole 0.1 s and complete diastole 0.4 s, how is the cycle 0.8 s?
Answer: (1) Carbon monoxide poisoning: exhaust CO binds Hb about 200–250 times more strongly than O₂, forming carboxyhaemoglobin, so her tissues and brain got too little O₂. Move her to fresh air at once, loosen clothing, give 100 % oxygen (hyperbaric oxygen if severe) and artificial ventilation if breathing stops. (2) Asthma (allergic bronchial asthma) triggered by pollen and cold air: bronchioles constrict and fill with mucus. Use bronchodilator inhalers (and steroid inhalers if prescribed), keep warm, avoid allergens; seek medical help if severe. (3) Each ventricular systole sends a pressure wave along the elastic arteries, which are near the surface at the wrist and neck; by the time blood passes through capillaries into veins the pressure is low and steady, so veins show no pulse. (4) Stroke volume = 5500 ÷ 68 ≈ 80.9 cm³ (about 81 ml) per beat. (5) The pulmonary veins, which bring freshly oxygenated blood from the lungs to the left atrium. (6) Atrial systole 0.1 s, then ventricular systole 0.3 s, then joint diastole 0.4 s: 0.1 + 0.3 + 0.4 = 0.8 s (equivalently, atria are in diastole for 0.7 s and ventricles for 0.5 s).
7. Q.7 (7) How blood keeps moving in large leg veins. (8) Histology of artery, vein and capillary. (9) Blood pressure and its measurement. (10) Human blood and its functions.
Answer: (7) Valves allow flow only toward the heart; contraction of surrounding skeletal muscles squeezes the veins (muscle pump); lowered chest pressure during inspiration draws blood upward (respiratory pump); and the remaining push from the heart helps. (8) Artery: three layers — tunica externa of collagen, thick tunica media of smooth muscle and elastic fibres, tunica interna of endothelium on an elastic layer; small, rounded lumen, no valves. Vein: same three layers but thin media with little muscle, wide and often collapsed lumen, semilunar valves at intervals. Capillary: only endothelium (one layer of flat cells) on a basement membrane, sometimes with pores, allowing exchange and diapedesis. (9) Blood pressure is the force exerted by blood on vessel walls, normally 120/80 mmHg in arteries. It is measured with a sphygmomanometer: the cuff around the upper arm at heart level is inflated until the brachial artery is blocked; while slowly deflating, the stethoscope picks up the first Korotkoff sound (systolic) and the point where sounds disappear (diastolic). Factors: cardiac output, peripheral resistance, blood volume, viscosity, arterial elasticity, age, sex, obesity, exercise and emotion. (10) Blood is a red fluid connective tissue (4–6 L, pH 7.4): plasma about 55 % (water, proteins, salts, nutrients, wastes, hormones) and formed elements about 45 % (RBCs, WBCs, platelets). Functions: transport of O₂, CO₂, nutrients, wastes and hormones; defence by WBCs and antibodies; clotting by platelets and fibrinogen; regulation of body temperature, pH and water balance.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. Minimum number of plasma membranes O₂ crosses from alveolar air to Hb inside an RBC is…
Answer: B. In and out of the alveolar cell (2), in and out of the endothelial cell (2), into the RBC (1).
2. The sound-producing organ is the…
Answer: C. It holds the vocal cords.
3. Extra air inhaled by forced breathing beyond TV is…
Answer: B. Inspiratory reserve volume, 2000–3000 ml.
4. When external intercostals contract, which muscle also contracts?
Answer: D. Both contract in inspiration.
5. An animal without closed circulation is the…
Answer: C. Insects have open circulation.
6. Diapedesis is performed by…
Answer: C. WBCs slip out of capillaries.
7. Which cell lacks a nucleus?
Answer: B. Mature mammalian RBCs are enucleate.
8. The Thebesian valve guards the opening of the…
Answer: B. The Eustachian valve guards the IVC.
9. The P wave of an ECG represents…
Answer: A. Atria are excited first.
10. Fluid in intercellular spaces is…
Answer: A. It becomes lymph once inside lymph vessels.
11. A right shift of the oxygen dissociation curve happens with…
Answer: B. Acid conditions make Hb release O₂.
12. Most CO₂ in blood is carried as…
Answer: C. About 70 % as HCO₃⁻.
13. If heart rate is 80 and stroke volume 65 ml, cardiac output is…
Answer: B. 65 × 80 = 5200 ml.
14. The first Korotkoff sound while deflating the cuff gives…
Answer: D. Blood first spurts through at the systolic peak.
15. The thickest chamber wall in the heart belongs to the…
Answer: C. It pumps blood to the whole body.
