Textbook: Science – Class 7 (Balbharati, official free PDF) · pages 126–130
How can a steel bar be turned into a magnet, why does a compass needle point north, and what are magnetic lines of force? Learn the single and double touch methods, Gilbert's idea of the Earth as a giant magnet, Faraday's lines of force and their properties, how a magnetic field passes through materials, and how metal detectors work — with answers to every exercise.
Magnets are made from alloys of iron, cobalt and nickel; Nipermag (iron, nickel, aluminium, titanium) and alnico (aluminium, nickel, cobalt) are used for strong magnets. A steel bar can be magnetised by rubbing it with a magnet — the single touch or the double touch method.

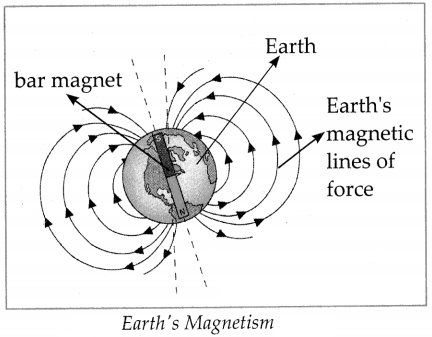

A freely hanging magnet always settles north–south. William Gilbert explained this with experiments: the Earth itself behaves like a huge magnet whose magnetic south pole lies near the geographic North Pole, which attracts the north pole of a magnet.
The space around a magnet where its force acts is its magnetic field. Michael Faraday pictured it with imaginary magnetic lines of force; where the lines are crowded the field is strong, where they are spread out it is weak.
Lines of force go from N to S outside a magnet, behave like stretched springs, push each other apart and never cross. These properties explain why unlike poles attract and like poles repel.
A magnetic field passes through cardboard, plastic and water, though it becomes weaker. Electromagnets are used in metal detectors at airports, temples and food factories. Repulsion is the true test of a magnet.
Get a ✓ Verified tutor for “Properties of a Magnetic Field” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Two steel bars are magnetised, one by single touch and one by double touch. Which will pick up more iron filings after a week, and why?
Answer: The double-touch bar, because the double touch method produces stronger magnetism that lasts longer; the single-touch bar's weak magnetism fades quickly.
| Property | What it means | What it explains |
|---|---|---|
| Imaginary lines | Drawn to picture the field | Faraday's model |
| N to S | Run from N pole to S pole outside a magnet | Direction of the field |
| Under tension | Behave like stretched springs | Unlike poles attract |
| Repel each other | Push sideways on one another | Like poles repel |
| Never intersect | Only one direction at each point | Clear field pattern |
| Crowding | More lines per area | Stronger field near poles |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Fill in the blanks: (a) The alloys … and … are used for making industrial magnets. (b) A magnetic field can pass through … and … (c) The intensity of a magnetic field is shown by the lines of … (d) The real test of a magnet is …
Answer: (a) Nipermag, alnico (b) cardboard, water (also plastic) (c) force (magnetic lines of force) (d) repulsion.
2. With whom should I pair up? (a) Compass (b) Door of a cupboard (c) Repulsion (d) Magnetic pole — 1. The highest magnetic force 2. Like poles 3. A magnet 4. A magnetic needle.
Answer: (a)–4, (b)–3, (c)–2, (d)–1.
3. (a) Distinguish between the two methods of making artificial magnets. (b) Which substances are used for making electromagnets?

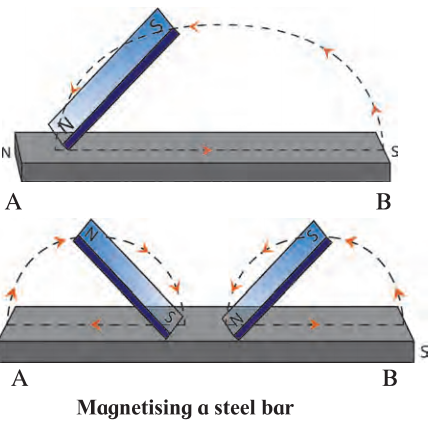

Answer: (a) Single touch: one pole of a magnet is rubbed along the steel bar from one end to the other, always in the same direction; the magnetism is weak and short-lived. Double touch: two opposite poles of two magnets are placed at the centre and dragged apart towards the two ends; the magnetism is stronger and lasts longer. (b) A soft iron core (rod or nail), insulated copper wire wound around it as a coil, and a source of electric current such as a cell or battery.
4. (c) Write a note on 'magnetic field'. (e) Explain how the intensity and direction of the magnetic field of a bar magnet can be found.

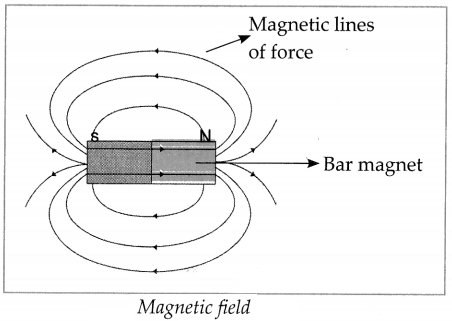

Answer: (c) The region around a magnet in which its magnetic force can be felt is its magnetic field. It acts without contact and can pass through cardboard, plastic and water, getting weaker. It is shown by imaginary lines of force drawn from the N pole to the S pole; the field is strongest near the poles where the lines are crowded. (e) Place the bar magnet under a card and sprinkle iron filings; tap the card. The filings line up along curved lines of force — where they crowd (near the poles) the field is strong, where they spread out it is weak. To find the direction, place a small compass at different points: its N end points along the field, from the magnet's N pole towards its S pole. Mark the needle's direction at many points and join the marks to draw the field lines.
5. (d) Why is a magnetic needle used in a compass?
Answer: A magnetic needle is a light magnet that can turn freely. Because of the Earth's magnetism it always comes to rest pointing north–south, so it shows directions anywhere — on land, at sea or in the air, and even when the sky is cloudy.
6. Give detailed information about how merchants of olden times used a magnet while travelling.

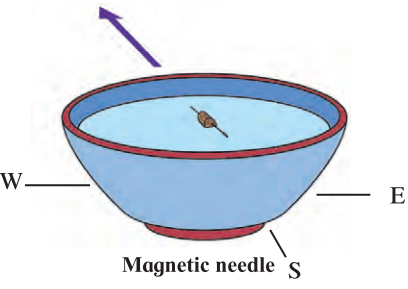

Answer: Long ago traders found that a natural magnetic stone (lodestone), or an iron needle rubbed with it, when hung by a thread or floated on water on a bit of wood, always turned north–south. On ships at sea, or crossing deserts where there were no landmarks, and on cloudy nights when stars could not be seen, merchants used this simple compass to keep to the right direction and reach distant ports and markets safely.
7. How will you find the magnet among several articles given to you? Why is repulsion the real test?
Answer: Bring one pole of a known magnet near one end of each article. A magnet as well as plain iron gets attracted, so attraction alone proves nothing. But if an end is pushed away, that article must be a magnet, because only like poles repel. So repulsion is the real test of a magnet.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. Alnico is an alloy of…
Answer: A. Al-Ni-Co.
2. The magnetism produced by the single touch method is…
Answer: B. Double touch lasts longer.
3. A freely suspended magnet settles in the…
Answer: B. Due to the Earth's magnetism.
4. Who first explained that the Earth is a giant magnet?
Answer: C. Using a magnetic sphere.
5. Near the geographic North Pole lies the Earth's…
Answer: C. It attracts a magnet's N pole.
6. Magnetic lines of force were introduced by…
Answer: A. To explain attraction and repulsion.
7. Where lines of force are crowded, the field is…
Answer: C. More lines per unit area.
8. Magnetic lines of force…
Answer: D. Only one direction at a point.
9. Unlike poles attract because lines of force are…
Answer: B. Like stretched springs.
10. A magnetic field can pass through…
Answer: C. Though it weakens.
11. Magnetic force is a…
Answer: A. It has direction.
12. Metal detectors are based on…
Answer: B. Used at airports.
13. The real test of a magnet is…
Answer: A. Iron is attracted but never repelled.
14. In a magnet the magnetic force is highest at…
Answer: B. Filings gather at the ends.
15. An electromagnet is made of…
Answer: A. Magnetic only while current flows.
