Textbook: Mathematics Part 2 (Geometry) – Class 10 (Balbharati, official free PDF) · pages 91–96
With a ruler and compass you can draw a triangle similar to a given one in any ratio — smaller or larger — using equal parts on a ray and parallel lines.
👋 New here? See how to study this chapter step by step — summary, notes, flashcards, quiz and games.
To construct a similar triangle, first find (or keep) the ratio of corresponding sides, called the scale factor.
If the ratio is less than 1 the new triangle is smaller; if greater than 1 it is larger.
Method: on a ray from a common vertex mark as many equal parts as the larger number of the ratio, join the last point to the vertex of the given triangle, and draw parallels.
Parallel lines make the sides proportional (BPT), and the common angle gives similarity (SAS).
Always draw a rough figure first and write the lengths you will need.
Get a ✓ Verified tutor for “Practice Set 4.1 – Constructing a Triangle Similar to a Given Triangle” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
AB = 4, BC = 6, CA = 5 and BC/QR = 2/3. Find PQ, QR, RP.
Answer: 6 cm, 9 cm, 7.5 cm
| What | Formula | Symbols |
|---|---|---|
| Scale factor | new side ÷ corresponding old side | |
| New side | old side × scale factor |
Solve each one in your notebook first. Then open the solution and compare every step.
1. ΔABC has AB = 4 cm, BC = 6 cm and CA = 5 cm. ΔPQR ~ ΔABC with BC/QR = 2/3. Find the sides of ΔPQR before constructing.
Answer: PQ = 6 cm, QR = 9 cm, RP = 7.5 cm

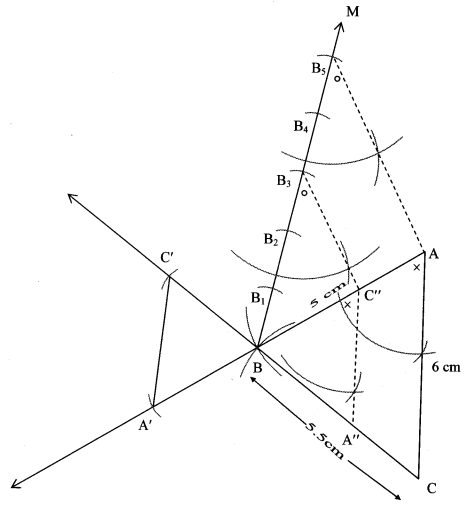

2. Write the steps to construct ΔA′BC′ ~ ΔABC with A′B/AB = 3/5 when B is the common vertex.
Answer: ΔA′BC′ is the required triangle
3. The ratio of corresponding sides is 7 : 5 and the given triangle's side is 5 cm. What length do you draw?
Answer: 7 cm
4. Why does the construction give a similar triangle?
Answer: By BPT and the SAS test
Read the question, answer it in your head, then tap the card to check. 10 cards.
10 questions. Tap an option — you will see at once if it is right and why.
1. AB = 4 cm and the scale factor is 3/2. The new side is…
Answer: C. 4 × 3/2.
2. For ratio 3 : 5, the number of equal parts marked is…
Answer: C. The larger number.
3. For ratio 3 : 5, the new triangle is…
Answer: A. 3/5 < 1.
4. The construction is justified by…
Answer: D. Parallels give proportional sides.
5. Ratio 7 : 5, given side 5 cm. New side?
Answer: A. 5 × 7/5.
6. In the method, B₅C is joined and a parallel is drawn through…
Answer: A. For ratio 3 : 5.
7. The common vertex angle in the two triangles is…
Answer: A. Common angle.
8. BC/QR = 2/3 and BC = 6 cm. QR = ?
Answer: D. 6 × 3/2.
9. Before constructing, you should…
Answer: D. Plan the construction.
10. If the ratio is 1, the triangles are…
Answer: C. Same size.
