Textbook: Mathematics Part 2 (Geometry) – Class 10 (Balbharati, official free PDF) · pages 97–98
Every tangent construction comes from a theorem: tangent ⟂ radius, the angle in a semicircle, or the tangent–secant angle.
👋 New here? See how to study this chapter step by step — summary, notes, flashcards, quiz and games.

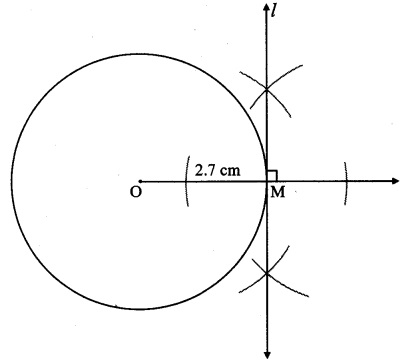

Tangent at a point on the circle (centre known): draw the radius and construct a perpendicular to it at the point.

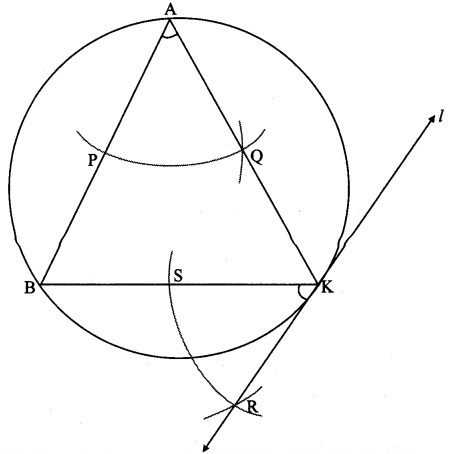

Tangent at a point (centre not known): copy an inscribed angle at the point — the converse of the tangent–secant angle theorem.
Tangents from an external point P: bisect OP at M, draw a circle with diameter OP; it cuts the circle at the points of contact.
The last method works because an angle in a semicircle is 90°, so OA ⟂ PA.
Two tangents from an external point are equal — check your drawing with a divider.
Get a ✓ Verified tutor for “Practice Set 4.2 – Constructing Tangents to a Circle” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Radius 3 cm, OP = 7 cm. How long are the tangents?
Answer: √40 ≈ 6.3 cm
| What | Formula | Symbols |
|---|---|---|
| Tangent length | √(OP² − r²) | |
| Angle in a semicircle | 90° |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Write the steps to construct a tangent at a point M on a circle with centre P and radius 3.5 cm.
Answer: The perpendicular to PM at M
2. Write the steps to draw tangents from a point P 7 cm from the centre O of a circle of radius 3 cm.
Answer: PA and PB are the tangents
3. In the construction above, how long will each tangent be?
Answer: √40 ≈ 6.3 cm
4. How can you draw a tangent at a point of a circle when its centre is NOT shown?
Answer: Copy the inscribed angle at A (alternate segment method)
Read the question, answer it in your head, then tap the card to check. 10 cards.
10 questions. Tap an option — you will see at once if it is right and why.
1. To draw a tangent at a point M with the centre known, draw…
Answer: A. Tangent theorem.
2. For tangents from P, the circle is drawn with diameter…
Answer: B. Centre M, midpoint of OP.
3. The angles at the points of contact are 90° because they are…
Answer: A. Semicircle on OP.
4. Radius 3 cm, OP = 7 cm. Tangent length ≈ ?
Answer: A. √40.
5. Number of tangents from an external point:
Answer: B. Two.
6. If the centre is not known, a tangent at A is drawn by…
Answer: D. Alternate segment method.
7. The two tangents from P are…
Answer: C. Tangent segment theorem.
8. Number of tangents at a point on the circle:
Answer: A. Exactly one.
9. M is the midpoint of OP. The circle drawn has radius…
Answer: B. Half of OP.
10. The no-centre method is justified by…
Answer: A. Equal angles ⇒ tangent.
