Sometimes you are not told the two slanting sides of a triangle separately, only their total. This set shows how to build such a triangle with a ruler, compass and protractor. The trick is a helper point and one perpendicular bisector, which splits the total into the two correct sides for you.
A triangle can be drawn when you know its base, one angle on the base and the total length of the other two sides.
Draw the base, draw the given angle at the correct end, and mark a helper point on that ray at a distance equal to the total.
Join the helper point to the other end of the base and draw the perpendicular bisector of this joining segment.
Where the perpendicular bisector cuts the ray is the third vertex: it is equally far from the helper point and the base end, which splits the total correctly.
The method works only when the given total is longer than the base (triangle inequality).
Get a ✓ Verified tutor for “Practice Set 4.1 – Base, One Base Angle and the Sum of the Other Two Sides” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Why must AK equal AC in this method?
Answer: AK = AC, so A is on the perpendicular bisector of KC
Construct △LMN with MN = 5.5 cm, ∠M = 60° and LM + LN = 8 cm.
Answer: △LMN is drawn; LM ≈ 3.2 cm, LN ≈ 4.8 cm
For △DEF with EF = 6 cm, ∠F = 55° and DE + DF = 9.5 cm, from which point is the helper point measured?
Answer: From F, the vertex that carries the given angle
A triangle has base 4 cm, perimeter 11 cm and an angle of 70° at one end of the base. What total do you mark?
Answer: Mark 7 cm
| What | Formula | Symbols |
|---|---|---|
| Perpendicular bisector property | P on the perpendicular bisector of XY ⇔ PX = PY | used to split the total |
| Helper point | BK = AB + AC, so AK = AC | K on the ray from the angle's vertex |
| Perimeter to sum | AB + AC = perimeter − BC | 10 − 3.2 = 6.8 cm |
| Existence check | AB + AC > BC | otherwise no triangle |
Solve each one in your notebook first. Then open the solution and compare every step.

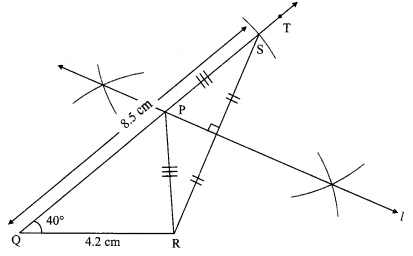

1. 1. Construct △PQR with QR = 4.2 cm, ∠Q = 40° and PQ + PR = 8.5 cm.
Answer: △PQR drawn; PQ ≈ 5.2 cm, PR ≈ 3.3 cm

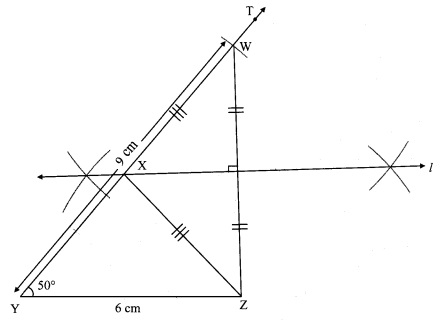

2. 2. Construct △XYZ with YZ = 6 cm, ∠XYZ = 50° and XY + XZ = 9 cm.
Answer: △XYZ drawn; XY ≈ 4.4 cm, XZ ≈ 4.6 cm

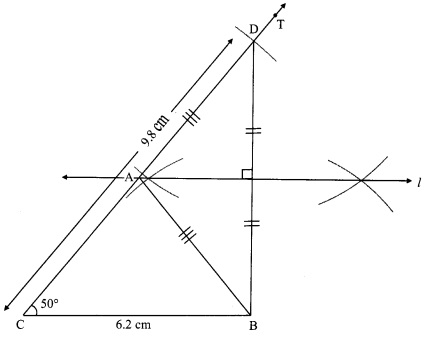

3. 3. Construct △ABC with BC = 6.2 cm, ∠ACB = 50° and AB + AC = 9.8 cm.
Answer: △ABC drawn; AC ≈ 5.0 cm, AB ≈ 4.8 cm

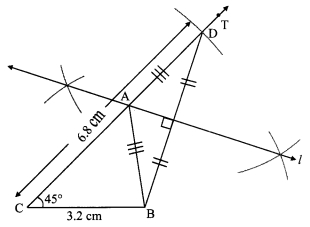

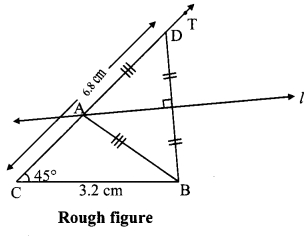

4. 4. Construct △ABC with BC = 3.2 cm, ∠ACB = 45° and perimeter 10 cm.
Answer: △ABC drawn; AC ≈ 4.0 cm, AB ≈ 2.8 cm
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. In this construction, which line gives the third vertex together with the ray?
Answer: D. The vertex must be equidistant from two points.
2. Base BC = 6 cm, ∠B = 50°, AB + AC = 9 cm. On ray BX, the helper point is placed at…
Answer: D. Measure the total from the angle's vertex.
3. A point on the perpendicular bisector of KC is…
Answer: A. That is the property of the bisector.
4. Perimeter of △ABC is 12 cm and BC = 4.5 cm. AB + AC =
Answer: C. 12 − 4.5.
5. Which data CANNOT give a triangle?
Answer: B. The sum must exceed the base.
6. In △XYZ the angle ∠XZY is at…
Answer: A. The middle letter names the vertex.
7. If BK = AB + AC and A lies on BK, then…
Answer: B. BK = AB + AK too.
8. The segment that is bisected joins the helper point to…
Answer: B. K is joined to the far end of the base.
9. Which instrument draws the 40° ray?
Answer: D. Angles are measured with a protractor.
10. To draw a perpendicular bisector you need…
Answer: A. Two pairs of equal arcs and a ruler.
11. BC = 4 cm, ∠C = 60°, AB + AC = 7 cm. The ray is drawn from…
Answer: B. The angle is at C.
12. The 'sum of two sides' is measured along…
Answer: C. That ray contains one of the two sides.
13. After finding vertex A, you finally join…
Answer: C. This completes the third side.
14. Perimeter 10 cm and base 3.2 cm give a sum of…
Answer: C. 10 − 3.2.
15. Which is the best final check?
Answer: A. The sum is the condition that was given.
