Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 53–55
Here you know the base of a triangle, one angle on the base, and by how much one slanting side is longer than the other. Again a helper point and a perpendicular bisector do the job. The only new idea is deciding on which side of the base vertex to place the helper point.
Given: the base, one base angle and the difference of the other two sides.
Case 1 — the side next to the given angle is the longer one: mark the helper point ON the angle's ray, at a distance equal to the difference.
Case 2 — the side next to the given angle is the shorter one: mark the helper point on the OPPOSITE ray, at a distance equal to the difference.
Join the helper point to the other end of the base and draw the perpendicular bisector of that segment; it meets the angle's ray at the third vertex.
The difference must be smaller than the base, otherwise the triangle cannot exist.
Get a ✓ Verified tutor for “Practice Set 4.2 – Base, One Base Angle and the Difference of the Other Two Sides” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Construct △ABC with BC = 7 cm, ∠B = 45° and AB − AC = 1.5 cm.
Answer: △ABC drawn; AB ≈ 6.8 cm, AC ≈ 5.3 cm
Construct △ABC with BC = 6 cm, ∠B = 70° and AC − AB = 1.5 cm.
Answer: △ABC drawn; AB ≈ 4.8 cm, AC ≈ 6.3 cm
△PQR: QR is the base, ∠R = 65°, PQ − PR = 2 cm. Which case is it?
Answer: Case 2 (helper point on the opposite ray from R)
Can △ABC be drawn with BC = 3 cm, ∠B = 50° and AB − AC = 4 cm?
Answer: No; the difference must be less than the base
| What | Formula | Symbols |
|---|---|---|
| Case 1 (side on ray longer) | BK = AB − AC on ray BA ⇒ AK = AC | K between B and A |
| Case 2 (side on ray shorter) | BK = AC − AB on the opposite ray ⇒ AK = AC | K below the base |
| Locating the vertex | A = ray ∩ perpendicular bisector of KC | both cases |
| Existence check | difference of two sides < base | 2.5 cm < 6.5 cm ✓ |
Solve each one in your notebook first. Then open the solution and compare every step.

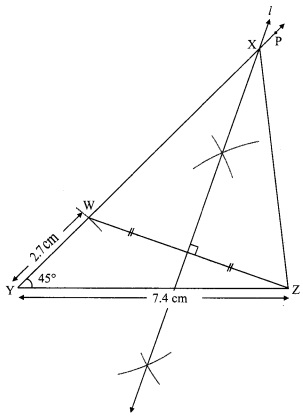

1. 1. Construct △XYZ with YZ = 7.4 cm, ∠XYZ = 45° and XY − XZ = 2.7 cm.
Answer: △XYZ drawn; XY ≈ 9.4 cm, XZ ≈ 6.7 cm
2. 2. Construct △PQR with QR = 6.5 cm, ∠PQR = 40° and PQ − PR = 2.5 cm.
Answer: △PQR drawn; PQ ≈ 7.3 cm, PR ≈ 4.8 cm

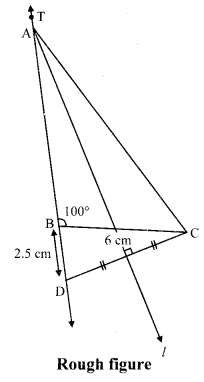

3. 3. Construct △ABC with BC = 6 cm, ∠ABC = 100° and AC − AB = 2.5 cm.
Answer: △ABC drawn; AB ≈ 10.2 cm, AC ≈ 12.7 cm
4. Extra check for Q3: why does the 100° angle make the triangle so tall?
Answer: The data force long sides; the construction is still correct
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. ∠B is given and AB − AC = 3 cm. The helper point K is marked…
Answer: B. AB is longer, so Case 1.
2. ∠B is given and AC − AB = 2 cm. The helper point K is marked…
Answer: D. AB is shorter, so Case 2.
3. In both cases, which segment is bisected perpendicularly?
Answer: A. A must be equally far from K and C.
4. In Case 1, AK equals…
Answer: D. AK = AB − BK.
5. A triangle with base 5 cm can have difference of the other two sides equal to…
Answer: B. It must be less than 5.
6. XY − XZ = 2.7 cm means…
Answer: B. The first one is longer.
7. The opposite ray of ray BT…
Answer: C. Same starting point, opposite direction.
8. In Case 2, B lies…
Answer: D. K and A are on opposite rays from B.
9. ∠R given with base QR and PQ − PR = 2 cm. Side on the ray is…
Answer: A. The ray from R carries PR.
10. The third vertex is found as the meeting point of…
Answer: A. That is the method.
11. Base 6.5 cm, ∠Q = 40°, PQ − PR = 2.5 cm. Distance QK is…
Answer: B. Mark the difference.
12. Which is true for every triangle?
Answer: B. Triangle inequality.
13. Why is a rough figure drawn first?
Answer: D. It plans the construction.
14. After locating A you finally join…
Answer: A. AC is the missing side.
15. If you put K on the wrong side, the triangle you get has…
Answer: B. The difference condition fails.
