Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 86–88
This problem set closes the Circle chapter. It mixes quick multiple-choice checks on chords, two constructions (incircle and circumcircle) and three short figure problems. Almost everything rests on two facts: the perpendicular from the centre cuts a chord into two equal halves, and chords that are the same distance from the centre have the same length. Add Pythagoras' theorem and you can crack every question.
A perpendicular drawn from the centre to a chord bisects that chord, so half-chord, distance and radius form a right triangle.
Radius² = (half chord)² + (distance of chord from centre)².
Chords at equal distances from the centre are equal; equal chords are at equal distances from the centre.
Angle bisectors of a triangle meet at the incentre (centre of the incircle); perpendicular bisectors of the sides meet at the circumcentre (centre of the circumcircle).
In an equilateral triangle the incentre and circumcentre are the same point and circumradius : inradius = 2 : 1.
Get a ✓ Verified tutor for “Problem Set 6 – Chords, Incircle and Circumcircle – Revision” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A circle has radius 17 cm. A chord is 8 cm from the centre. How long is the chord?
Answer: 30 cm.
In a circle of radius 10 cm, chord PQ is 12 cm long. How far from the centre is another chord of length 12 cm?
Answer: 8 cm.
Radius 13 cm; parallel chords of 10 cm and 24 cm lie on opposite sides of the centre. Find the gap between them.
Answer: 17 cm (it would be 7 cm if both were on one side).
An equilateral triangle has side 6 cm. Its inradius is about 1.73 cm. What should you expect the circumradius to measure?
Answer: About 3.46 cm (ratio 2 : 1).
| What | Formula | Symbols |
|---|---|---|
| Half chord | half chord = √(r² − d²) | r = 17, d = 8 → 15, chord 30 |
| Radius from chord | r = √((half chord)² + d²) | half 12, d 5 → r = 13 |
| Distance of chord | d = √(r² − (half chord)²) | r = 10, half 6 → d = 8 |
| Parallel chords | opposite sides: d₁ + d₂; same side: d₁ − d₂ | 12 and 5 → 17 or 7 |
| Equilateral triangle | circumradius : inradius = 2 : 1 | inradius 1.73 → circumradius 3.46 |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Q1 (i)–(iv). Choose the right option. (i) Radius 10 cm, chord 6 cm from the centre: chord length? (ii) Meeting point of all angle bisectors of a triangle? (iii) Circle through all vertices of a triangle? (iv) Chord 24 cm, 5 cm from the centre: radius?
Answer: (i) A, 16 cm (ii) C, incentre (iii) A, circumcircle (iv) B, 13 cm.
2. Q1 (v)–(vii). (v) Longest chord when radius is 2.9 cm? (vi) Radius 4 cm, OP = 4.2 cm: where is P? (vii) Radius 5 cm, parallel chords 6 cm and 8 cm on opposite sides of the centre: distance between them?
Answer: (v) D, 5.8 cm (vi) C, outside (vii) D, 7 cm.

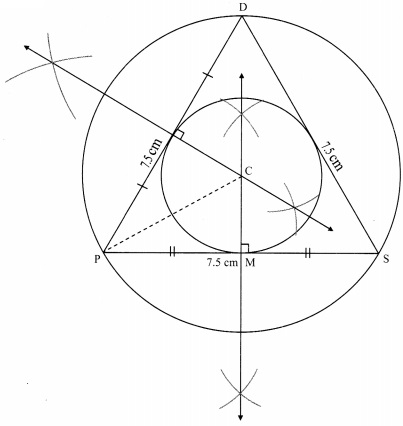

3. Q2. Draw an equilateral triangle DSP of side 7.5 cm, construct its incircle and circumcircle, measure both radii and find circumradius : inradius.
Answer: Circumradius ≈ 4.3 cm, inradius ≈ 2.2 cm; ratio 2 : 1.

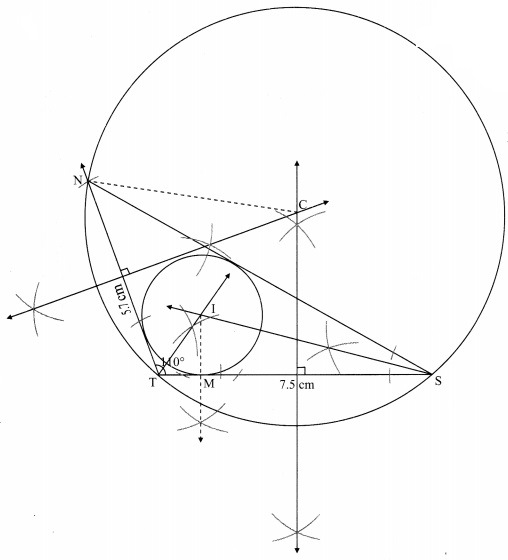

4. Q3. Construct triangle NTS with NT = 5.7 cm, TS = 7.5 cm, angle NTS = 110°, and draw its incircle and circumcircle.
Answer: Construction as above; inradius about 1.7 cm, circumradius about 5.8 cm (measured values may differ slightly).
5. Q4. In the figure, C is the centre, QT is a diameter and chord RS is perpendicular to QT at P. CT = 13 and CP = 5. Find RS.
Answer: RS = 24 units.
6. Q5. P is the centre. Chords AB and CD cross at E, a point on a diameter, and angle AEP ≅ angle DEP. Prove AB = CD.
Answer: AB = CD, proved.
7. Q6. In the figure, CD is a diameter of the circle with centre O and it is perpendicular to chord AB at E. Show that triangle ABC is isosceles.
Answer: CA = CB, so triangle ABC is isosceles.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. Radius 10 cm, chord at distance 6 cm. Chord length =
Answer: C. Half chord = √(100 − 36) = 8, so chord = 16.
2. The angle bisectors of a triangle meet at the…
Answer: A. Incentre is the meeting point of angle bisectors.
3. A circle through all vertices of a triangle is the…
Answer: C. Circum = around the triangle.
4. Chord 24 cm is 5 cm from the centre. Radius =
Answer: A. √(12² + 5²) = 13.
5. Longest chord of a circle of radius 2.9 cm is…
Answer: D. Diameter = 2 × 2.9.
6. Radius 4 cm and OP = 4.2 cm. P lies…
Answer: B. 4.2 is more than the radius.
7. Radius 5 cm; parallel chords 6 cm and 8 cm on opposite sides. Gap =
Answer: D. Distances 4 and 3; opposite sides → 4 + 3.
8. Same chords as above but on the same side. Gap =
Answer: A. 4 − 3 = 1 cm.
9. Perpendicular bisectors of a triangle's sides meet at the…
Answer: A. Each such point is equidistant from two vertices.
10. Equilateral triangle with inradius 2 cm has circumradius…
Answer: B. Ratio 2 : 1.
11. Radius 13 cm, chord 10 cm. Distance from centre =
Answer: C. √(169 − 25) = 12.
12. In triangle NTS, angle T = 110°. The circumcentre lies…
Answer: C. An obtuse triangle's circumcentre is outside.
13. To prove two chords equal, it is enough to show that…
Answer: D. Equidistant chords are equal.
14. Diameter CD ⟂ chord AB at E. Then triangle ABC is…
Answer: B. CE is the perpendicular bisector of AB, so CA = CB.
15. The inradius is the distance from the incentre to…
Answer: A. The incircle touches the sides.
