Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 87–94
To tell a friend where a seat is in a cinema you say the row and the seat number — two numbers, in a fixed order. Co-ordinate geometry does the same for points on a flat page. Two number lines crossing at right angles, the X-axis and the Y-axis, let us name every point with an ordered pair (x, y). The signs of x and y then tell us at once which quarter of the plane the point is in, or whether it sits on an axis.
The X-axis is a horizontal number line; the Y-axis is a vertical number line; they cross at the origin O(0, 0).
Every point is named by an ordered pair (x, y): x first, then y. (2, 5) and (5, 2) are different points.
The axes split the plane into four quadrants, numbered I to IV going anticlockwise from the top-right.
Signs: I (+, +), II (−, +), III (−, −), IV (+, −).
A point with y = 0 lies on the X-axis; a point with x = 0 lies on the Y-axis. Points on the axes belong to no quadrant.
Get a ✓ Verified tutor for “Practice Set 7.1 – Axes, Quadrants and Co-ordinates of a Point” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A point is 4 units to the left of the Y-axis and 6 units above the X-axis. Write its co-ordinates and quadrant.
Answer: (−4, 6), Quadrant II.
Where do these lie: (−8, −1), (6, −0.5), (0, −7), (11, 0)?
Answer: III, IV, Y-axis, X-axis.
Plot R(−2, −3) and say where it is.
Answer: R lies in Quadrant III.
| What | Formula | Symbols |
|---|---|---|
| Origin | O = (0, 0) | Where the axes cross |
| Quadrant I | (+, +) | (3, 7) |
| Quadrant II | (−, +) | (−3, 7) |
| Quadrant III | (−, −) | (−3, −7) |
| Quadrant IV | (+, −) | (3, −7) |
| On the axes | X-axis: (a, 0); Y-axis: (0, b) | (9, 0) on X-axis, (0, −2) on Y-axis |
Solve each one in your notebook first. Then open the solution and compare every step.

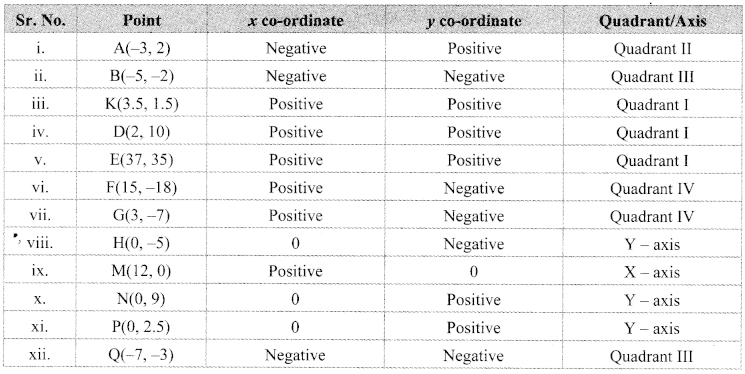

1. Q1 (part 1). State the quadrant or axis for A(−3, 2), B(−5, −2), K(3.5, 1.5), D(2, 10), E(37, 35), F(15, −18).
Answer: A: II, B: III, K: I, D: I, E: I, F: IV.
2. Q1 (part 2). State the quadrant or axis for G(3, −7), H(0, −5), M(12, 0), N(0, 9), P(0, 2.5), Q(−7, −3).
Answer: G: IV, H: Y-axis, M: X-axis, N: Y-axis, P: Y-axis, Q: III.
3. Q2. In which quadrant is a point when (i) both co-ordinates are positive (ii) both are negative (iii) x is positive and y negative (iv) x is negative and y positive?
Answer: (i) I (ii) III (iii) IV (iv) II.
4. Q3. Draw the axes and plot L(−2, 4), M(5, 6), N(−3, −4), P(2, −3), Q(6, −5), S(7, 0), T(0, −5).
Answer: Points plotted: L in II, M in I, N in III, P and Q in IV, S on the X-axis, T on the Y-axis.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. The point (−5, −2) lies in…
Answer: D. Both signs negative.
2. The point (0, −5) lies…
Answer: A. x = 0.
3. A point with x positive and y negative is in…
Answer: A. (+, −).
4. A point with x negative and y positive is in…
Answer: A. (−, +).
5. The co-ordinates of the origin are…
Answer: C. Both distances are zero.
6. Which point is on the X-axis?
Answer: C. y = 0.
7. (3.5, 1.5) lies in…
Answer: A. Both positive.
8. (2, 7) and (7, 2) are…
Answer: A. Order matters.
9. The x co-ordinate of a point is its distance from…
Answer: B. It is measured left–right from the Y-axis.
10. A point 6 units below the X-axis on the Y-axis is…
Answer: A. On the Y-axis x = 0, below means negative y.
11. Quadrants are numbered starting from the…
Answer: D. Quadrant I is top right; then anticlockwise.
12. (37, 35) lies in…
Answer: C. Both positive.
13. (3, −7) lies in…
Answer: A. (+, −).
14. Points on the axes belong to…
Answer: C. Quadrants exclude the axes.
15. To plot (−2, 4) from O you move…
Answer: A. x = −2 is left, y = 4 is up.
