Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 99–105
How do surveyors find the height of a tower without climbing it? They use trigonometry — the study of how the sides and angles of a right-angled triangle are linked. Because all right triangles with the same acute angle are similar, the ratio of any two of their sides depends only on that angle. Three such ratios get special names: sine, cosine and tangent. This set teaches you to pick out the opposite side, the adjacent side and the hypotenuse for an angle and write these ratios.
In a right-angled triangle the hypotenuse is the side facing the right angle; it is the longest side.
For an acute angle θ, the opposite side faces θ and the adjacent side is the other side touching θ (not the hypotenuse).
sin θ = opposite ÷ hypotenuse, cos θ = adjacent ÷ hypotenuse, tan θ = opposite ÷ adjacent.
These ratios depend only on the angle, not on the size of the triangle, because right triangles with an equal acute angle are similar.
Similar triangles also let us find heights from shadows: height of object ÷ its shadow = height of stick ÷ stick's shadow.
Get a ✓ Verified tutor for “Practice Set 8.1 – Sine, Cosine and Tangent Ratios” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A 1.5 m stick casts a 2 m shadow. At the same moment a pole casts a 12 m shadow. How tall is the pole?
Answer: 9 m.
In triangle ABC, angle B = 90°. For angle C name the opposite side, adjacent side and hypotenuse.
Answer: Opposite AB, adjacent BC, hypotenuse AC.
Right triangle DEF has angle E = 90°, DE = 9, EF = 12, DF = 15. Find sin F, cos F and tan F.
Answer: sin F = 3/5, cos F = 4/5, tan F = 3/4.
In triangle XYZ, W is on YZ with XW ⟂ YZ. Angle XYW = β and angle WXZ = φ. Write tan β and sin φ.
Answer: tan β = XW/YW, sin φ = WZ/XZ.
| What | Formula | Symbols |
|---|---|---|
| sine | sin θ = opposite / hypotenuse | 9/15 = 3/5 |
| cosine | cos θ = adjacent / hypotenuse | 12/15 = 4/5 |
| tangent | tan θ = opposite / adjacent | 9/12 = 3/4 |
| Pythagoras | hypotenuse² = leg² + leg² | 9² + 12² = 15² |
| Shadow method | height = (stick height ÷ stick shadow) × object shadow | 1.5 ÷ 2 × 12 = 9 m |
Solve each one in your notebook first. Then open the solution and compare every step.

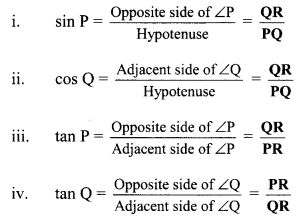

1. Q1. In triangle PQR, angle R is the right angle. Write (i) sin P (ii) cos Q (iii) tan P (iv) tan Q.
Answer: (i) QR/PQ (ii) QR/PQ (iii) QR/PR (iv) PR/QR.

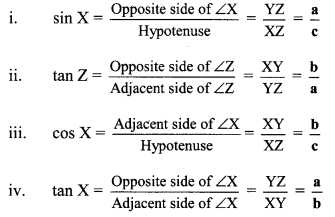

2. Q2. In triangle XYZ, angle XYZ = 90°, with XY = b, YZ = a and XZ = c (as in the figure). Write (i) sin X (ii) tan Z (iii) cos X (iv) tan X.
Answer: (i) a/c (ii) b/a (iii) b/c (iv) a/b.

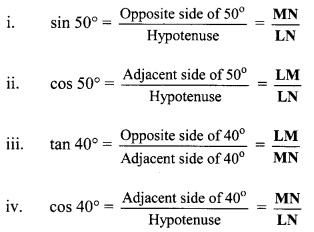

3. Q3. In triangle LMN, angle LMN = 90°, angle L = 50° and angle N = 40°. Write (i) sin 50° (ii) cos 50° (iii) tan 40° (iv) cos 40°.
Answer: (i) MN/LN (ii) LM/LN (iii) LM/MN (iv) MN/LN.
4. Q4. In the figure, PQ is perpendicular to RS (angle PQR = angle PQS = 90°), angle PRQ = α and angle QPS = θ. Write (i) sin α, cos α, tan α (ii) sin θ, cos θ, tan θ.
Answer: (i) PQ/PR, RQ/PR, PQ/RQ (ii) QS/PS, PQ/PS, QS/PQ.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. sin θ equals…
Answer: A. S-O-H.
2. cos θ equals…
Answer: A. C-A-H.
3. tan θ equals…
Answer: A. T-O-A.
4. In triangle PQR with angle R = 90°, cos Q =
Answer: B. Adjacent to Q is QR; hypotenuse PQ.
5. In triangle PQR with angle R = 90°, tan P =
Answer: B. Opposite QR, adjacent PR.
6. Triangle XYZ, angle Y = 90°, XY = b, YZ = a, XZ = c. tan X =
Answer: D. Opposite a, adjacent b.
7. Same triangle: cos X =
Answer: C. Adjacent b over hypotenuse c.
8. In triangle LMN, angle M = 90°, angle L = 50°. cos 50° =
Answer: B. Adjacent to L is LM.
9. Same triangle: cos 40° =
Answer: D. 40° is at N; adjacent MN.
10. The longest side of a right triangle is the…
Answer: C. It faces the 90° angle.
11. Sides 5, 12, 13. sin of the angle opposite 5 is…
Answer: D. Opposite 5, hypotenuse 13.
12. Sides 5, 12, 13. tan of the angle opposite 12 is…
Answer: D. Opposite 12, adjacent 5.
13. Sun-shadow height method works because the triangles are…
Answer: A. Parallel sunrays give equal angles.
14. A 2 m stick has a 3 m shadow; a wall's shadow is 9 m. Wall height?
Answer: B. 9 × 2 ÷ 3.
15. For the other acute angle of the same right triangle…
Answer: D. The hypotenuse stays fixed; the two legs swap roles.
Get a ✓ Verified tutor for “Practice Set 8.1 – Sine, Cosine and Tangent Ratios” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Done with the notes? Revise Practice Set 8.1 – Sine, Cosine and Tangent Ratios the fun way: match key terms, beat the 60-second lightning round and spot true or false facts. Every game uses only this lesson, so each round is real exam revision.
