Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 97–100
This problem set gathers the whole Co-ordinate Geometry chapter in one place: the form of points on each axis, quadrants from signs, reading co-ordinates off a figure, plotting points, and lines parallel to the axes. If you can name the sign pattern of each quadrant and remember that y = b is horizontal while x = a is vertical, every question here takes only a line or two.
A point on the X-axis looks like (a, 0); a point on the Y-axis looks like (0, b).
Quadrants by sign: I (+, +), II (−, +), III (−, −), IV (+, −).
The X-axis is y = 0 and the Y-axis is x = 0.
Points with the same y lie on a line parallel to the X-axis; points with the same x lie on a line parallel to the Y-axis.
The line x = a is |a| units from the Y-axis, and y = b is |b| units from the X-axis.
Get a ✓ Verified tutor for “Problem Set 7 – Co-ordinate Geometry – Revision” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Which of these lie on y = x: (3, 3), (−1, 1), (0, 0), (2.5, 2.5)?
Answer: (3, 3), (0, 0) and (2.5, 2.5).
Without plotting, place (−14, −0.5), (9, −20), (0, 11).
Answer: III, IV, Y-axis.
Write all lines parallel to the Y-axis at a distance of 2.5 units from it.
Answer: x = 2.5 and x = −2.5.
Points A, B, C all lie on a vertical line through 4 on the X-axis, at heights 2, 0 and −3. Write their co-ordinates.
Answer: A(4, 2), B(4, 0), C(4, −3); the line is x = 4.
| What | Formula | Symbols |
|---|---|---|
| Point on X-axis | (a, 0) | (−6, 0) |
| Point on Y-axis | (0, b) | (0, −3) |
| Point on y = x | (a, a) | (−4, −4) |
| Axes as lines | X-axis: y = 0; Y-axis: x = 0 | |
| Distance of x = a from Y-axis | |a| | x = −7 → 7 units |
| Lines at distance d from X-axis | y = d and y = −d | d = 5 → y = 5, y = −5 |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Q1 (i)–(iii). (i) Form of a point on the X-axis: (b, b), (0, b), (a, 0), (a, a)? (ii) Form of any point on y = x: (a, a), (0, a), (a, 0), (a, −a)? (iii) Equation of the X-axis: x = 0, y = 0, x + y = 0, x = y?
Answer: (i) C (ii) A (iii) B.
2. Q1 (iv)–(vi). (iv) Quadrant of (−4, −3)? (v) Nature of the line through (−5, 5), (6, 5), (−3, 5), (0, 5)? (vi) Which of P(−1, 1), Q(3, −4), R(1, −1), S(−2, −3), T(−4, 4) are in Quadrant IV?
Answer: (iv) C (v) C (vi) B.

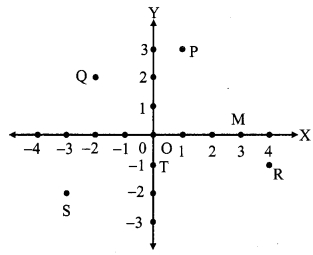

3. Q2. From the figure (points P, Q, R, S, T, M plotted on a grid): (i) co-ordinates of Q and R (ii) co-ordinates of T and M (iii) which point is in Quadrant III (iv) which point has equal x and y co-ordinates?
Answer: (i) Q(−2, 2), R(4, −1) (ii) T(0, −1), M(3, 0) (iii) S (iv) the origin O.

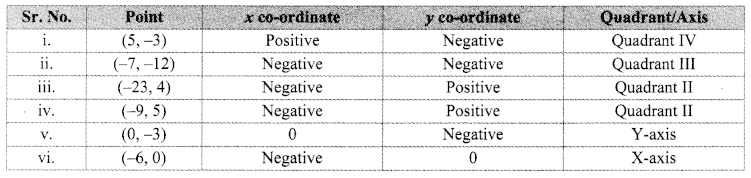

4. Q3. Without plotting, place (i) (5, −3) (ii) (−7, −12) (iii) (−23, 4) (iv) (−9, 5) (v) (0, −3) (vi) (−6, 0).
Answer: (i) IV (ii) III (iii) II (iv) II (v) Y-axis (vi) X-axis.

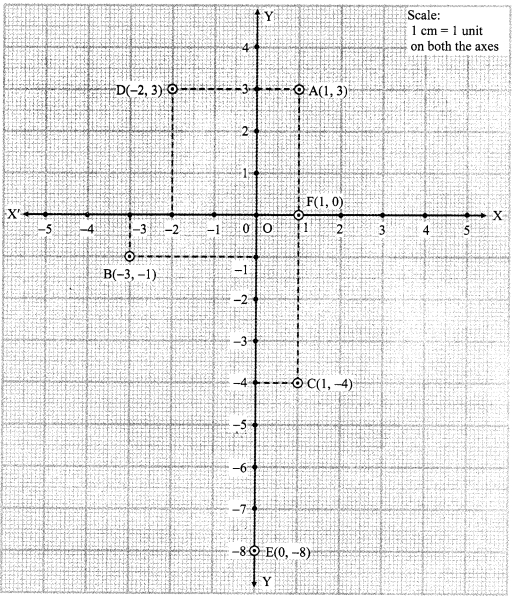

5. Q4. Plot A(1, 3), B(−3, −1), C(1, −4), D(−2, 3), E(0, −8), F(1, 0) on one set of axes.
Answer: Six points plotted: A in I, D in II, B in III, C in IV, E on the Y-axis, F on the X-axis.

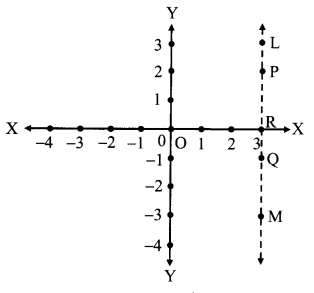

6. Q5. In the figure, line LM is parallel to the Y-axis and passes through 3 on the X-axis, with points L, P, R, Q, M on it. (i) Distance of LM from the Y-axis? (ii) Co-ordinates of P, Q, R? (iii) Difference of the x co-ordinates of L and M?
Answer: (i) 3 units (ii) P(3, 2), Q(3, −1), R(3, 0) (iii) 0.

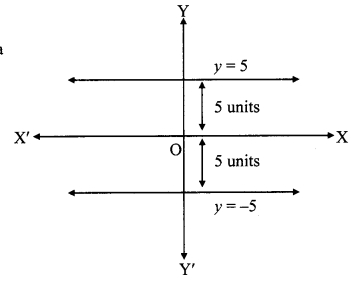

7. Q6. How many lines are parallel to the X-axis at a distance of 5 units from it?
Answer: Two lines: y = 5 and y = −5.
8. Q7*. If a is a real number, what is the distance between the Y-axis and the line x = a?
Answer: |a| units.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. Co-ordinates of a point on the X-axis have the form…
Answer: B. y = 0 on the X-axis.
2. Any point on the line y = x has the form…
Answer: A. Equal co-ordinates.
3. The equation of the X-axis is…
Answer: B. All its points have y = 0.
4. (−4, −3) lies in which quadrant?
Answer: A. (−, −).
5. (−5, 5), (6, 5), (−3, 5), (0, 5) lie on a line that…
Answer: D. All have y = 5.
6. Of P(−1, 1), Q(3, −4), R(1, −1), S(−2, −3), T(−4, 4), the Quadrant IV points are…
Answer: C. Q and R are (+, −).
7. (−9, 5) lies in…
Answer: B. (−, +).
8. (−6, 0) lies…
Answer: D. y = 0.
9. Distance between the Y-axis and the line x = −3 is…
Answer: B. |−3| = 3.
10. How many lines parallel to the X-axis are 5 units from it?
Answer: A. y = 5 and y = −5.
11. L(3, 3) and M(3, −3) lie on one vertical line. Difference of their x co-ordinates?
Answer: D. Both x = 3.
12. The point (0, −8) is plotted…
Answer: D. x = 0, y = −8.
13. Which point is on the line y = x?
Answer: A. Equal co-ordinates.
14. A line parallel to the Y-axis through (3, 2) is…
Answer: D. Same x everywhere.
15. (5, −3) lies in…
Answer: D. (+, −).
