Textbook: Chemistry – Class 12 (Balbharati, official free PDF) · pages 192–209
Cisplatin fights cancer, haemoglobin carries oxygen and EDTA measures the hardness of your tap water — all three are coordination compounds. This chapter covers ligands and denticity, coordination number, charge and oxidation state, Werner's theory, IUPAC naming, the EAN rule, geometric, optical and structural isomers, stability constants, valence bond theory (inner and outer orbital complexes), crystal field theory with high-spin/low-spin diagrams and colour, plus fully worked answers to the exercise.
A coordination compound has a central metal atom or ion (a Lewis acid, electron-pair acceptor) bonded through coordinate bonds to ligands (Lewis bases, electron-pair donors). The metal and its ligands written inside square brackets form the coordination sphere; ions outside the bracket are counter ions.
Ligands are monodentate (Cl⁻, NH₃, H₂O, CN⁻), bidentate (en, C₂O₄²⁻), hexadentate (EDTA⁴⁻) or ambidentate (NO₂⁻/ONO⁻, SCN⁻/NCS⁻). Coordination number = number of donor atoms attached to the metal. Werner explained complexes with primary (ionisable) and secondary (non-ionisable, directional) valencies.

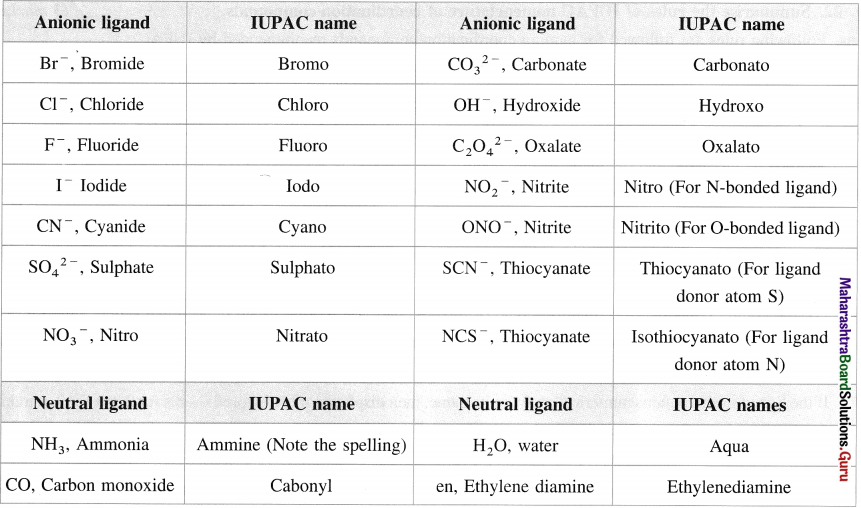

IUPAC names list ligands alphabetically before the metal, use -o endings for anionic ligands, give the oxidation state in Roman numerals and end the metal name in -ate in an anionic complex. The EAN rule (Sidgwick) says a stable complex often has an electron count equal to the next noble gas: EAN = Z − X + Y.

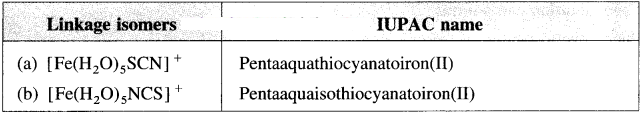

Isomers: stereoisomers (geometric cis/trans; optical d/l) and structural isomers (linkage, ionisation, coordination, solvate). Stability of a complex is measured by its formation (stability) constant K; a high charge-to-size ratio of the metal and a strongly basic ligand give large K.

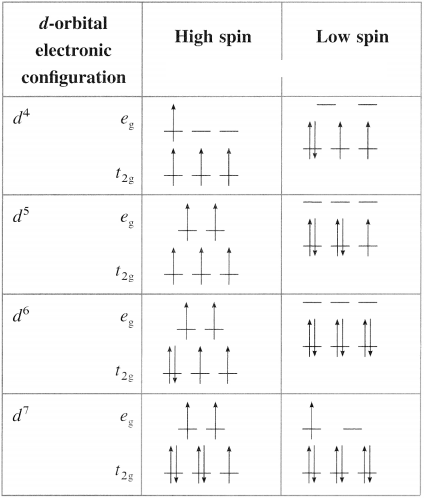

VBT explains geometry and magnetism through hybridisation (sp³ tetrahedral, dsp² square planar, d²sp³ inner-orbital and sp³d² outer-orbital octahedral). CFT treats ligands as point charges that split the d orbitals into t₂g and e_g (gap Δo); strong-field ligands give low-spin complexes, and d–d transitions across Δo give complexes their colour.
Get a ✓ Verified tutor for “Coordination Compounds” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Find the coordination number and oxidation state of the metal in (a) [CrCl₂(C₂O₄)₂]³⁻ and (b) [Ni(en)₂(H₂O)₂]Cl₂.
Answer: (a) C.N. 6, Cr +3 (b) C.N. 6, Ni +2.
A complex PtCl₄·2NH₃ gives no precipitate with AgNO₃ and its solution does not conduct. Pt has C.N. 6. Write its formula and name.
Answer: [Pt(NH₃)₂Cl₄], diamminetetrachloroplatinum(IV).
Name (a) K₂[Zn(OH)₄] (b) [Co(en)₂(H₂O)Cl]²⁺ (c) [Cr(NH₃)₃(NO₂)₃].
Answer: (a) Potassium tetrahydroxozincate(II) (b) Aquachlorobis(ethylenediamine)cobalt(III) ion (c) Triamminetrinitrochromium(III).
Does [Mn(CO)₆]⁺ obey the EAN rule? What about Mn(CO)₅ (a neutral monomer)?
Answer: [Mn(CO)₆]⁺ obeys (36); monomeric Mn(CO)₅ would have 35 and does not.
Compare the stability of [Ag(CN)₂]⁻ and [Ag(NH₃)₂]⁺ numerically.
Answer: [Ag(CN)₂]⁻ is about 3.4 × 10¹¹ times more stable; CN⁻ is the stronger Lewis base.

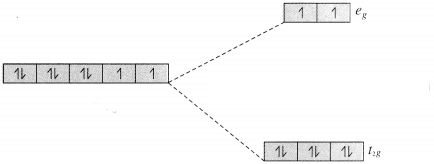

Give the VBT description of [Fe(H₂O)₆]²⁺ (high spin) and find its spin-only magnetic moment.
Answer: sp³d², octahedral, high spin, 4 unpaired electrons, paramagnetic, μ ≈ 4.90 BM.

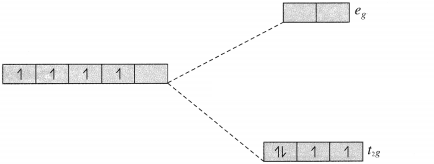

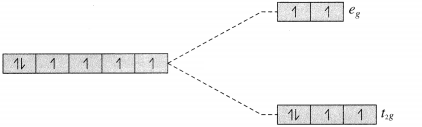

Use CFT to predict the configuration and number of unpaired electrons in (a) [Mn(CN)₆]³⁻ and (b) [Fe(H₂O)₆]²⁺. Find the crystal field stabilisation energy (CFSE) of (a), ignoring pairing energy.
Answer: (a) t₂g⁴, 2 unpaired, CFSE −1.6 Δo (b) t₂g⁴e_g², 4 unpaired; both paramagnetic.
| Idea | Rule / formula | Example |
|---|---|---|
| Oxidation state | charge of complex = O.S. of metal + Σ ligand charges | [Fe(CN)₆]⁴⁻: x − 6 = −4 → Fe +2 |
| Coordination number | number of donor atoms bonded to metal | [Co(en)₃]³⁺ → 6 |
| Effective atomic number | EAN = Z − X + Y | [Co(NH₃)₆]³⁺ = 27 − 3 + 12 = 36 |
| Stability constant | K = [MLₙ] ÷ ([M][L]ⁿ) | larger K → more stable |
| Spin-only magnetic moment | μ = √[n(n + 2)] BM | n = 4 → 4.90 BM |
| Octahedral splitting | t₂g at −0.4 Δo, e_g at +0.6 Δo | Δo = 10 Dq |
| Tetrahedral splitting | Δt ≈ (4/9) Δo | always high spin |

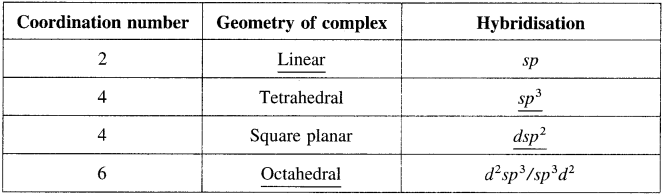

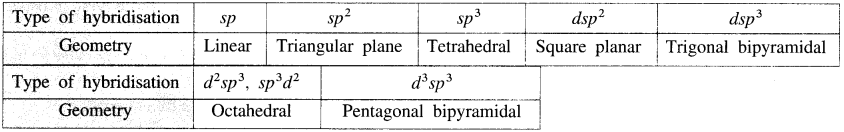

| Hybridisation → shape | sp linear; sp³ tetrahedral; dsp² square planar; d²sp³/sp³d² octahedral | [Ni(CN)₄]²⁻ dsp² |
| AgNO₃ test | mol AgCl = Cl⁻ outside the bracket | [Co(NH₃)₅Cl]Cl₂ → 2 mol |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Q1. Choose the correct option. (i) Oxidation state of cobalt in [Co(NH₃)₅Br]SO₄. (ii) IUPAC name of [Pt(en)₂(SCN)₂]²⁺. (iii) Formula of sodium hexacyanoferrate(III). (iv) Which exist as cis and trans isomers: 1. [Cr(NH₃)₂Cl₄]⁻ 2. [Co(NH₃)₅Br]²⁺ 3. [PtCl₂Br₂]²⁻ (square planar) 4. [FeCl₂(NCS)₂]²⁻ (tetrahedral)?
Answer: (i) b. +3 (ii) a. bis(ethylenediamine)dithiocyanatoplatinum(IV) ion (iii) d. Na₃[Fe(CN)₆] (iv) 1 and 3 (the book prints '1 and 3' as both options a and c — either letter carries that answer).

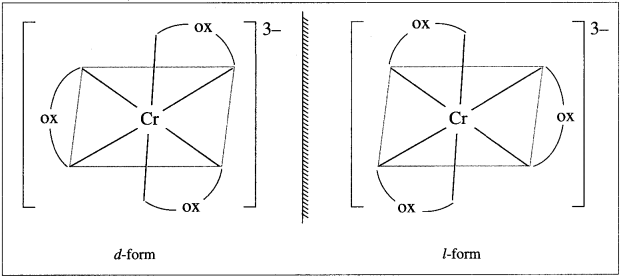

2. Q1 (contd). (v) Which are chiral: 1. [Co(en)₂Cl₂]⁺ 2. [Pt(en)Cl₂] 3. [Cr(C₂O₄)₃]³⁻ 4. [Co(NH₃)₄Cl₂]⁺? (vi) Unpaired electrons in [CrF₆]³⁻ by CFT. (vii) One mole AgCl is precipitated by excess AgNO₃: formula of the complex? (viii) Sum of C.N. and oxidation number of M in [M(en)₂C₂O₄]Cl.
Answer: (v) a. 1 and 3 (vi) c. 3 (vii) a. [CoCl₂(NH₃)₄]Cl (viii) c. 9
3. Q2. Answer in one or two sentences. (i) Formula of tetraammineplatinum(II) chloride. (ii) Is [Cr(en)₂(H₂O)₂]³⁺ chiral? (iv) Lewis acids and bases in [PtCl₂(NH₃)₂]. (v) Shape when C.N. = 4. (vi) Is [CoF₆] with Co(III) cationic or anionic? (vii) Isomerism in [Cu(NH₃)₄][PtCl₄] and [Pt(NH₃)₄][CuCl₄]. (viii) Two applications.
Answer: (i) [Pt(NH₃)₄]Cl₂ (ii) Only the cis isomer is chiral (iv) Acid Pt²⁺; bases Cl⁻, NH₃ (v) Tetrahedral or square planar (vi) Anionic, [CoF₆]³⁻ (vii) Coordination isomerism (viii) Any two of the above.
4. Q3. Answer in brief. (i) Bidentate ligands. (ii) C.N. and oxidation state in [Pt(NH₃)Cl₅]⁻. (iii) Double salt vs complex. (iv) Classify [Cu(NH₃)₄]SO₄, [Cu(en)₂(H₂O)Cl]⁺ (book prints 2+), [Fe(H₂O)₅(NCS)]²⁺, tetraamminezinc(II) nitrate. (v) Formulae: potassium amminetrichloroplatinate(II); dicyanoaurate(I) ion. (vi) Ionisation isomers. (vii) High- and low-spin complexes.
Answer: (ii) C.N. 6, Pt +4 (iv) Homoleptic: [Cu(NH₃)₄]SO₄, [Zn(NH₃)₄](NO₃)₂; heteroleptic: the other two (v) K[Pt(NH₃)Cl₃]; [Au(CN)₂]⁻
5. Q3 (contd). (viii) [CoCl₄]²⁻ is tetrahedral: box diagram and orbitals used. (ix) Strong- and weak-field ligands with one example each. (x) Why is [Cr(en)₃]³⁺ coloured?
Answer: (viii) sp³ using 4s + 4p; 3 unpaired (ix) Strong: CN⁻; weak: F⁻ (x) A d–d (t₂g → e_g) transition in visible light makes it coloured.

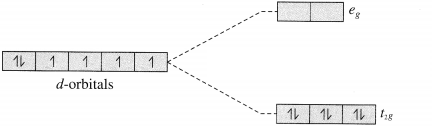

6. Q4. (i) VBT description of [VCl₄]⁻: box diagram, hybrid orbitals, unpaired electrons. (ii) d-orbital splitting for [Fe(CN)₆]⁴⁻: unpaired electrons, magnetism, colour.
Answer: (i) sp³, tetrahedral, 2 unpaired (ii) t₂g⁶, 0 unpaired, diamagnetic, coloured (pale yellow) because a d–d transition is possible.

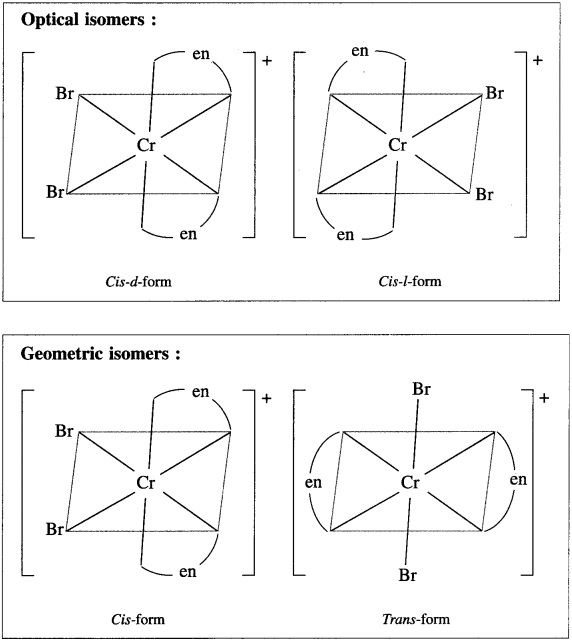

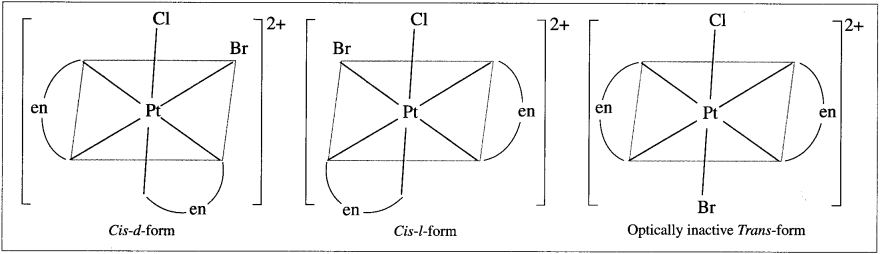

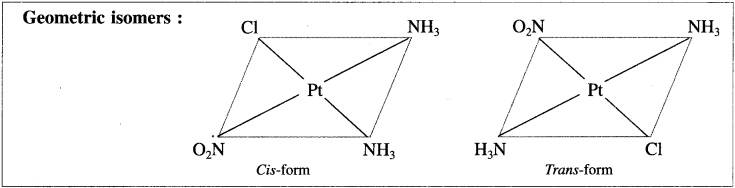

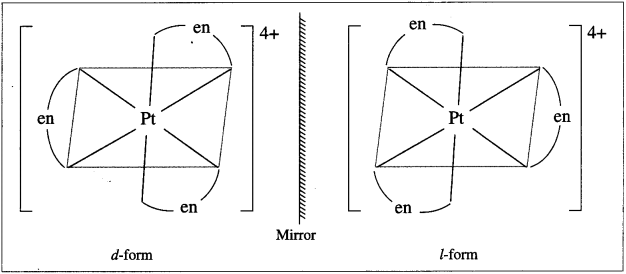

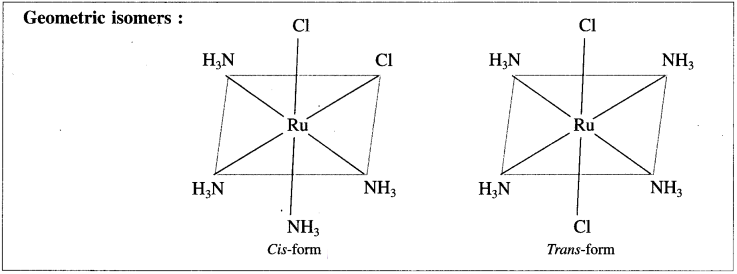

7. Q4 (contd). (iii) Draw isomers of [Pt(NH₃)₂ClNO₂], [Ru(NH₃)₄Cl₂], [Cr(en)₂Br₂]⁺. (iv) Geometric isomers and enantiomers of [Pt(en)₃]⁴⁺ and [Pt(en)₂ClBr]²⁺.
Answer: [Pt(NH₃)₂ClNO₂]: cis, trans (+ linkage); [Ru(NH₃)₄Cl₂]: cis, trans; [Cr(en)₂Br₂]⁺: trans + cis-d + cis-l; [Pt(en)₃]⁴⁺: d and l; [Pt(en)₂ClBr]²⁺: trans + cis-d + cis-l.

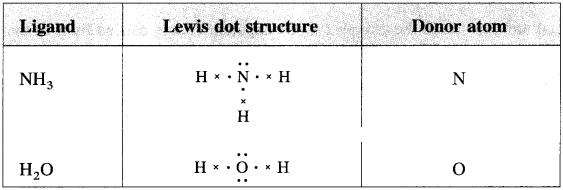

8. Q4 (contd). (v) Ligands and their types. (vi) Cationic, anionic and neutral complexes. (vii) Stability in terms of equilibrium constants. (viii) Factors governing the stability constant.
Answer: See steps — K = [MLₙ]/([M][L]ⁿ); factors: charge/size of metal ion and basicity of the ligand.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. The coordination number of Co in [Co(en)₂Cl₂]⁺ is…
Answer: A. Two en give 4 donor atoms, two Cl⁻ give 2: total 6.
2. Oxidation state of Ni in [Ni(CO)₄] is…
Answer: C. CO is neutral and the complex is neutral.
3. Which ligand is ambidentate?
Answer: B. SCN⁻ can bind through S or N.
4. One mole of CoCl₃·4NH₃ (C.N. 6) gives 1 mol AgCl. Its formula is…
Answer: D. Only one Cl⁻ is outside the bracket.
5. The correct IUPAC name of K₃[Al(C₂O₄)₃] is…
Answer: A. Anionic complex → -ate ending.
6. EAN of Cr in Cr(CO)₆ is…
Answer: A. 24 − 0 + 12 = 36.

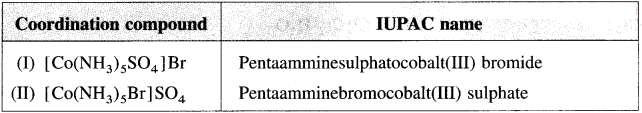

7. [Co(NH₃)₅SO₄]Br and [Co(NH₃)₅Br]SO₄ are…
Answer: A. A ligand and the counter ion swap places.
8. Which complex is chiral?
Answer: C. Three chelate rings make a propeller with no mirror plane.
9. Hybridisation of Co in [Co(NH₃)₆]³⁺ is…
Answer: D. Low spin; two inner 3d orbitals are used.
10. [NiCl₄]²⁻ is…
Answer: A. Cl⁻ is weak; sp³ with two unpaired electrons.
11. Which is the strongest-field ligand?
Answer: D. CO is at the strong end of the spectrochemical series.
12. In an octahedral field the t₂g set is lowered by…
Answer: D. e_g rises by 0.6 Δo and t₂g falls by 0.4 Δo.

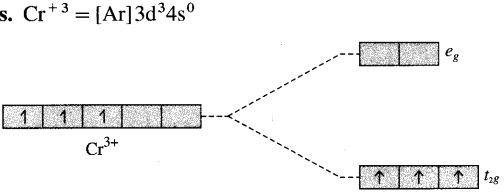

13. Number of unpaired electrons in [CrF₆]³⁻ (CFT) is…
Answer: A. Cr³⁺ is d³: t₂g³.
14. Which complex is used to estimate the hardness of water?
Answer: A. EDTA titration binds Ca²⁺ and Mg²⁺.
15. Higher stability constant of [Ag(CN)₂]⁻ than [Ag(NH₃)₂]⁺ is due to…
Answer: C. A more basic ligand donates its lone pair more readily.
