Textbook: Science – Class 8 (Balbharati, official free PDF) · pages 28–38
What is inside an atom, and how did scientists find out? Follow the atomic models of Dalton, Thomson, Rutherford and Bohr, learn about protons, neutrons and electrons, atomic number and mass number, how electrons fill the K, L, M, N shells, how valency comes from valence electrons, isotopes and their uses, and how a nuclear reactor works — with answers to every exercise.
An atom is the smallest particle of an element that keeps its chemical identity in physical and chemical changes. Kanad called such particles 'paramanu' and Democritus 'atomos'; Dalton (1803) said atoms are hard, indivisible spheres.

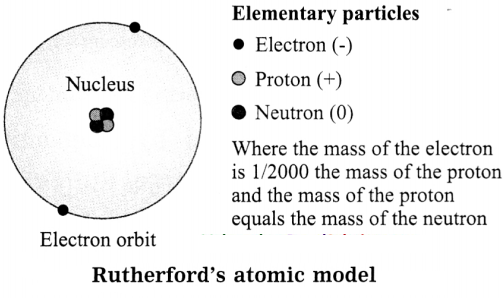

Thomson (1904) found the electron and pictured the atom as spread-out positive charge with electrons embedded in it (plum pudding). Rutherford's gold-foil experiment (1911) showed a tiny, heavy, positive nucleus with mostly empty space around it. Bohr (1913) placed electrons in fixed circular orbits of definite energy.
The nucleus holds protons (+1e, about 1 u) and neutrons (no charge, about 1 u); electrons (−1e, negligible mass) move in shells K, L, M, N outside. Atomic number Z = number of protons; mass number A = protons + neutrons; neutrons N = A − Z.
Shell n can hold at most 2n² electrons (2, 8, 18, 32). Electrons in the outermost (valence) shell decide valency: valency = x when valence electrons x ≤ 4, and 8 − x when x ≥ 4; a full octet or duplet means valency zero.
Isotopes are atoms of one element with the same atomic number but different mass numbers (C-12, C-13, C-14). Radioactive isotopes are used in power, medicine, industry and dating; in a nuclear reactor U-235 undergoes a controlled fission chain reaction.
Get a ✓ Verified tutor for “Inside the Atom” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Calcium has atomic number 20 and mass number 40. How many protons, electrons and neutrons does a calcium atom have?
Answer: 20 protons, 20 electrons and 20 neutrons.
Find the valency of chlorine from its electronic configuration 2, 8, 7.
Answer: Valency of chlorine = 1 (as in HCl).
| Model / particle | Key idea | Remember |
|---|---|---|
| Dalton (1803) | Atoms indivisible solid spheres | No inner structure |
| Thomson (1904) | Plum pudding: electrons in spread-out positive charge | Found the electron |
| Rutherford (1911) | Small heavy positive nucleus, mostly empty space | Gold foil and α-particles; unstable model |
| Bohr (1913) | Electrons in fixed orbits of constant energy | Explains stability and yellow sodium light |
| Proton | +1e, about 1 u, in nucleus | Number = atomic number Z |
| Neutron | No charge, about 1 u, in nucleus | N = A − Z |
| Electron | −1e, negligible mass, in shells | Equals protons in a neutral atom |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Answer: (a) How do Thomson's and Rutherford's atomic models differ? (b) What is valency? How is it related to valence electrons? (c) What is mass number? Explain how carbon has atomic number 6 and mass number 12. (d) What are subatomic particles? Describe the three in terms of charge, mass and location.
Answer: (a) Thomson: positive charge spread evenly through the whole atom with electrons embedded in it; no nucleus; mass spread throughout. Rutherford: positive charge and nearly all the mass in a tiny central nucleus; electrons revolve around it; most of the atom is empty space. (b) Valency is the number of chemical bonds an atom forms. If the number of valence electrons x is 4 or less, valency = x; if x is 4 or more, valency = 8 − x (the electrons needed to complete the octet). (c) Mass number A is the total number of protons and neutrons in the nucleus. A carbon nucleus has 6 protons, so Z = 6, and 6 neutrons, so A = 6 + 6 = 12. (d) Particles smaller than an atom that make it up: proton — charge +1e, mass about 1 u, in the nucleus; neutron — no charge, mass about 1 u, in the nucleus; electron — charge −1e, mass negligible (about 1/1800 of a hydrogen atom), moving in shells outside the nucleus.
2. Give scientific reasons: (a) Nearly all the mass of an atom is in the nucleus. (b) An atom is electrically neutral. (c) Atomic mass number is a whole number. (d) Atoms are stable even though electrons revolve in them.
Answer: (a) The nucleus holds the protons and neutrons, each about 1 u, while electrons are about 1800 times lighter than a hydrogen atom; so almost all the mass is in the nucleus. (b) The number of electrons equals the number of protons, and each carries an equal but opposite charge (−1e and +1e), so the charges cancel. (c) It is a count of particles — the number of protons plus neutrons — and a count is always a whole number. (d) According to Bohr, electrons move only in certain fixed orbits in which their energy stays constant; they do not lose energy while in an orbit, so they do not fall into the nucleus.
3. Define: (a) atom (b) isotope (c) atomic number (d) atomic mass number (e) moderator in a nuclear reactor.
Answer: (a) The smallest particle of an element that keeps its chemical identity through physical and chemical changes. (b) Atoms of the same element having the same atomic number but different mass numbers. (c) The number of protons in an atom's nucleus (Z). (d) The total number of protons and neutrons in the nucleus (A). (e) A substance such as graphite or heavy water used to slow down the neutrons so that the chain reaction can be controlled.
4. Draw neat labelled diagrams: (a) Rutherford's scattering experiment (b) Thomson's model (c) electronic configuration of magnesium (Z = 12) (d) electronic configuration of argon (Z = 18).
Answer: (a) An α-particle source in a lead block with a slit, a beam going to a thin gold foil, a circular fluorescent screen around the foil; show most paths going straight, some bent slightly, a few bent a lot and one bouncing back. Label source, slit, gold foil, screen. (b) A circle (sphere of positive charge, marked +) with small negative electrons dotted all through it. (c) Magnesium: nucleus marked 12p, 12n at the centre, then three circles: K with 2 dots, L with 8 dots, M with 2 dots — 2, 8, 2. (d) Argon: nucleus 18p, 22n (mass number 40), circles K 2, L 8, M 8 — 2, 8, 8.
5. Fill in the blanks: (a) Electron, proton and neutron are types of ___ in an atom. (b) An electron carries a ___ charge. (c) The ___ electron shell is nearest to the nucleus. (d) Magnesium's configuration is 2, 8, 2, so its valence shell is ___. (e) Hydrogen has valency one from H₂O; so the valency of Fe from Fe₂O₃ is ___.
Answer: (a) subatomic particles. (b) negative. (c) K. (d) M. (e) three.
6. Match: (a) proton (b) electron (c) neutron with (i) negatively charged (ii) neutral (iii) positively charged.
Answer: (a) – (iii), (b) – (i), (c) – (ii).
7. Deduce: (i) neutron number of ²³₁₁Na (ii) mass number of ¹⁴₆C (iii) proton number of ³⁷₁₇Cl.
Answer: (i) 12 neutrons. (ii) Mass number 14. (iii) 17 protons.
8. Write configuration, valence electrons and valency of Li (3), C (6), Mg (12), O (8); and find Z and A for sulphur with 16 protons and 16 neutrons.
Answer: Li: 2, 1 — 1 valence electron — valency 1. C: 2, 4 — 4 — valency 4. Mg: 2, 8, 2 — 2 — valency 2. O: 2, 6 — 6 — valency 8 − 6 = 2. Sulphur: Z = 16, A = 16 + 16 = 32.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. 'Paramanu' was the word used by…
Answer: B. Indian philosopher.
2. The plum pudding model was given by…
Answer: D. In 1904.
3. In Rutherford's experiment most α-particles…
Answer: A. So the atom is mostly empty.
4. Rutherford's experiment showed the nucleus is…
Answer: D. It deflected a few α-particles.
5. According to Bohr, an electron absorbs energy when it…
Answer: A. It needs the energy difference.
6. The mass of an electron is about ___ that of a hydrogen atom.
Answer: A. Negligible mass.
7. Atomic number is the number of…
Answer: A. Written Z.
8. Mass number of an atom with 11 protons and 12 neutrons is…
Answer: B. A = p + n.
9. Maximum electrons in the L shell is…
Answer: B. 2 × 2² = 8.
10. Electronic configuration of magnesium (Z = 12) is…
Answer: A. K 2, L 8, M 2.
11. Valency of oxygen (2, 6) is…
Answer: C. 8 − 6.
12. Neon has valency 0 because it has…
Answer: B. Inert gases do not combine.
13. C-12, C-13 and C-14 differ in the number of…
Answer: B. They are isotopes.
14. Which isotope is used to treat goitre?
Answer: A. Thyroid disease.
15. In a reactor the moderator…
Answer: B. Graphite or heavy water.
