How do we describe a moving bus, a falling stone or a spinning fan? Learn distance and displacement, speed, velocity and acceleration, distance-time and velocity-time graphs, the three equations of motion, uniform circular motion, Newton's three laws, momentum and its conservation, with solved numericals and answers to every exercise.
Motion is relative: an object is moving if its position changes with respect to its surroundings, and at rest if it does not. Distance is the length of the actual path followed; displacement is the shortest straight-line gap between start and finish, with a direction.
Speed = total distance ÷ time (a scalar). Velocity = displacement ÷ time (a vector). Velocity changes if the speed changes, if the direction changes, or if both change. Acceleration is the rate of change of velocity: a = (v − u) ÷ t.
Graphs tell the story of motion. A straight distance-time line means uniform motion; its slope is the speed. On a velocity-time graph the area under the line gives the distance, and a straight sloping line means uniform acceleration.

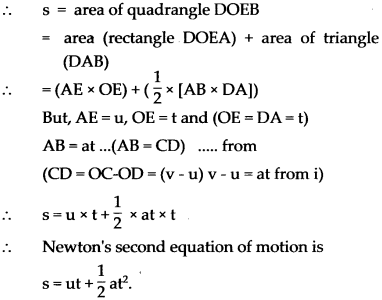

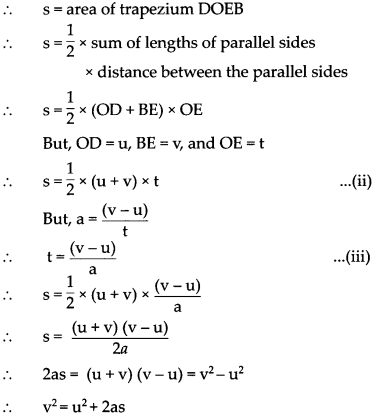

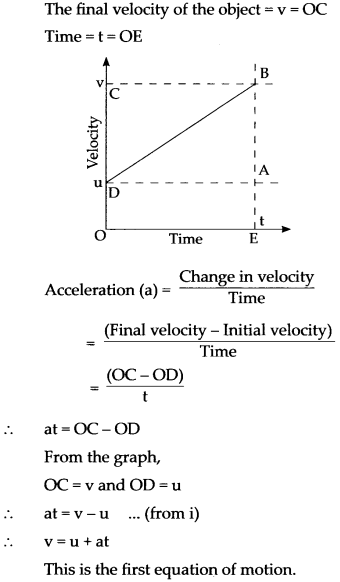

For uniform acceleration along a straight line: v = u + at, s = ut + ½at² and v² = u² + 2as. In uniform circular motion the speed stays the same but the direction keeps changing, so the motion is accelerated; speed v = 2πr ÷ t.

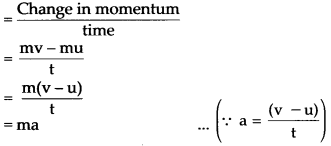

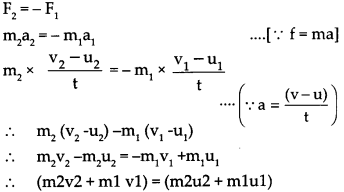

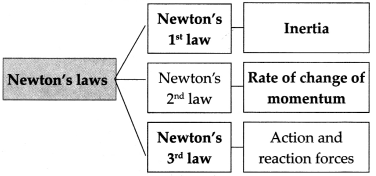

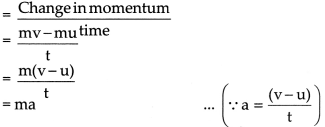

Newton's first law (inertia): an object keeps its state of rest or uniform straight-line motion unless an unbalanced force acts. Second law: force = rate of change of momentum, F = ma. Third law: every action has an equal and opposite reaction acting on a different object. With no outside force, total momentum stays constant — this explains gun recoil and rockets.
Get a ✓ Verified tutor for “Laws of Motion” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.

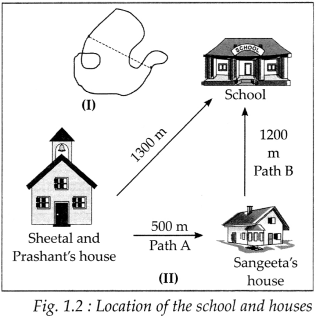

Sheetal takes 5 min for 500 m and then 24 min for 1200 m. Her straight-line displacement is 1300 m. Find her average speed and velocity.
Answer: Average speed ≈ 58.6 m/minute; velocity ≈ 44.8 m/minute towards the school.
From the car's velocity-time graph, the velocity is 16 m/s at 10 s and 32 m/s at 20 s. Find the distance covered between 10 s and 20 s.
Answer: 240 m
A motorboat starts from rest and reaches 15 m/s in 5 s with uniform acceleration. Find the acceleration and the distance covered.
Answer: a = 3 m/s²; s = 37.5 m.
An athlete runs 400 m around a circular track in 25 s and returns to the start. Find his average speed and average velocity.
Answer: Average speed 16 m/s; average velocity 0 m/s.

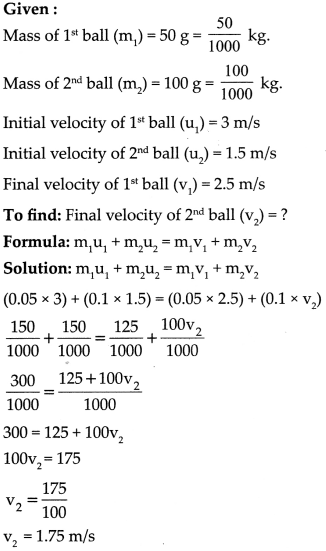

Balls of 50 g and 100 g move in the same direction at 3 m/s and 1.5 m/s. After colliding, the first moves at 2.5 m/s. Find the velocity of the second.
Answer: v₂ = 1.75 m/s in the same direction.
| Quantity | Formula | SI unit and note |
|---|---|---|
| Speed | distance ÷ time | m/s; scalar |
| Velocity | displacement ÷ time | m/s; vector |
| Acceleration | a = (v − u) ÷ t | m/s²; negative = deceleration |
| First equation | v = u + at | velocity–time relation |
| Second equation | s = ut + ½at² | displacement–time relation |
| Third equation | v² = u² + 2as | displacement–velocity relation |
| Circular motion speed | v = 2πr ÷ t | r = radius, t = time for one round |
| Momentum | p = mv | kg m/s; vector |
| Force (2nd law) | F = ma | newton (N) = kg m/s²; CGS: dyne |

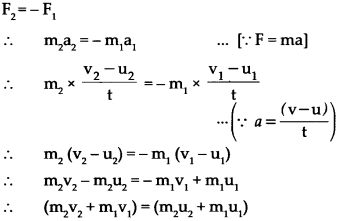

| Conservation of momentum | m₁u₁ + m₂u₂ = m₁v₁ + m₂v₂ | no external force; recoil v₂ = −(m₁/m₂)v₁ |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Match the columns: (1) Negative acceleration, (2) Positive acceleration, (3) Zero acceleration with 'velocity constant / decreases / increases' and the examples 'car from rest to 50 km/h in 10 s', 'vehicle moving at 25 m/s', 'vehicle at 10 m/s stops after 5 s'.
Answer: (1) Negative acceleration – velocity of the object decreases – a vehicle moving at 10 m/s stops after 5 s. (2) Positive acceleration – velocity increases – a car at rest reaches 50 km/h in 10 s. (3) Zero acceleration – velocity remains constant – a vehicle moving with a velocity of 25 m/s.
2. Clarify the differences: (A) distance and displacement, (B) uniform and non-uniform motion.
Answer: (A) Distance is the length of the actual path; it is a scalar, always positive, and can never be less than displacement. Displacement is the shortest straight-line length between start and finish with a direction; it is a vector and can be zero (e.g. a full round of a track). (B) In uniform motion an object covers equal distances in equal time intervals, and its distance-time graph is a straight line (a car steadily at 40 km/h on a highway). In non-uniform motion it covers unequal distances in equal intervals, and the graph is curved (a bus in city traffic).
3. Complete the table: (i) u = 2, a = 4, t = 3, v = ? (ii) u = ?, a = 5, t = 2, v = 20 (iii) u = 5, a = 12, t = 3, s = ? (iv) u = 7, a = ?, t = 4, s = 92 (v) u = 4, a = 3, s = ?, v = 8 (vi) u = ?, a = 5, s = 8.4, v = 10. (SI units)
Answer: v = 14 m/s; u = 10 m/s; s = 69 m; a = 8 m/s²; s = 8 m; u = 4 m/s.
4. Complete the sentences and explain: (a) The minimum distance between start and finish points is the … (b) Deceleration is … acceleration. (c) In uniform circular motion, its … changes at every point. (d) During collision … remains constant. (e) The working of a rocket depends on Newton's … law.
Answer: (a) displacement — it is the shortest straight-line gap between the two points. (b) negative — the velocity decreases, so acceleration is opposite to motion. (c) velocity (direction) — speed stays the same but the direction turns at each point. (d) total momentum — with no outside force, momentum is only shared between the objects. (e) third — hot gases pushed backwards push the rocket forward.
5. Give scientific reasons: (a) A freely falling object has uniform acceleration. (b) Action and reaction are equal and opposite, yet their effects do not cancel. (c) It is easier to stop a tennis ball than a cricket ball moving at the same velocity. (d) The velocity of an object at rest is considered uniform.
Answer: (a) Only the Earth's gravitational pull acts on it (ignoring air), and this pull gives the same acceleration, about 9.8 m/s², at every moment, so its velocity rises by equal amounts each second. (b) Action and reaction act on two different objects; forces cancel only when they act on the same object. (c) Momentum = mass × velocity. At the same velocity the lighter tennis ball has much less momentum, so a smaller force is needed to bring it to rest. (d) At rest the velocity is zero all the time; it does not change, so the acceleration is zero and the velocity is uniform (constant).
6. Give 5 examples from your surroundings explained by Newton's laws.
Answer: Sample: (1) Passengers lurch forward when a bus brakes suddenly — inertia of motion (first law). (2) Dust leaves a carpet when it is beaten — inertia of rest (first law). (3) A cricketer pulls his hands back while catching — more time, less force for the same change in momentum (second law). (4) Pushing an empty trolley is easier than a loaded one — for the same force, smaller mass gives larger acceleration (second law). (5) We walk because our foot pushes the ground backwards and the ground pushes us forward; a boat moves back when you jump ashore (third law).
7. (a) An object moves 18 m in the first 3 s, 22 m in the next 3 s and 14 m in the last 3 s. Find its average speed.
Answer: 6 m/s

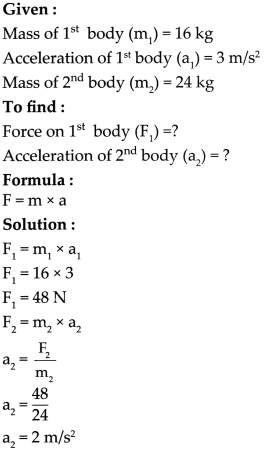

8. (b) A 16 kg object moves with acceleration 3 m/s². Find the force. What acceleration will the same force give a 24 kg object?
Answer: 48 N; 2 m/s².
9. (c) A 10 g bullet moving at 1.5 m/s hits a 900 g plank at rest, gets embedded and both move together. Find their velocity.
Answer: About 0.016 m/s (1.6 cm/s). Note: the book prints the answer as 0.15 m/s, but with the data given (1.5 m/s) conservation of momentum gives about 0.0165 m/s; a bullet speed of 15 m/s would give about 0.165 m/s.
10. (d) A person swims 100 m in the first 40 s, 80 m in the next 40 s and 45 m in the last 20 s. Find the average speed.
Answer: 2.25 m/s (the book prints the unit as m/s², but speed is measured in m/s).
11. Project: List common gadgets that work on Newton's laws of motion.
Answer: Sample: seat belts and airbags (first law — they stop the body's forward inertia, and airbags increase stopping time); a washing-machine spin dryer (water flies off along tangents when not held); a lawn sprinkler and a rocket or water rocket (third law); a garden hose pushing back on your hand (third law); shock absorbers and padded helmets (second law — longer impact time, smaller force); a cricket bat and a hammer (second law — large change in momentum).
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.

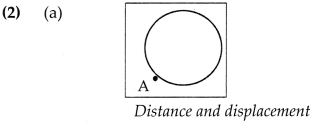

1. A girl walks once around a circular field of radius 100 m. Her displacement is…
Answer: B. She ends where she started.
2. Which is a vector quantity?
Answer: B. Velocity has direction.
3. Velocity of a car can change by…
Answer: A. Velocity depends on speed and direction.
4. SI unit of acceleration is…
Answer: A. Change in velocity per second.
5. A straight-line distance-time graph shows…
Answer: D. Equal distances in equal times.
6. The area under a velocity-time graph gives…
Answer: B. Velocity × time = distance.
7. Which equation links displacement and velocity without time?
Answer: C. It has no t.
8. A plane starts from rest with acceleration 3.2 m/s² for 30 s. Distance on the runway?
Answer: C. s = ½ × 3.2 × 30² = 1440 m.
9. In uniform circular motion, the quantity that stays constant is…
Answer: B. Only the direction keeps changing.
10. A coin thrown off a spinning disc moves along the…
Answer: A. Tangent is perpendicular to the radius.
11. Newton's first law explains…
Answer: B. It is called the law of inertia.
12. A 16 kg object accelerates at 3 m/s². The force is…
Answer: B. F = ma = 16 × 3.
13. 1 newton is equal to…
Answer: A. F = ma in SI units.
14. A rocket rising upward works on…
Answer: A. Gases pushed down, rocket pushed up.
15. A cannon of 500 kg recoils at 0.25 m/s. Its momentum is…
Answer: D. p = 500 × 0.25.
