Textbook: Science – Class 9 (Balbharati, official free PDF) · pages 138–149
What do a diamond ring, a pencil, a lump of coal and the food on your plate have in common? Carbon. Learn about organic and inorganic compounds, where carbon occurs, its allotropes (diamond, graphite, fullerene, coal, charcoal, coke), hydrocarbons and covalent bonds, the preparation, properties and uses of carbon dioxide, methane, biogas, and answers to every exercise.
Carbon (C, atomic number 6, atomic mass 12, electron configuration 2, 4, valency 4) is a non-metal found both free and in compounds. All organic compounds — food, clothes, fuels, medicines, even DNA and RNA — contain carbon, so organic chemistry is called the chemistry of carbon compounds.
Elements that exist in more than one physical form with the same chemical properties show allotropy. Carbon's crystalline allotropes are diamond, graphite and fullerene; its amorphous forms include coal, charcoal and coke.
Carbon completes its octet by sharing four electrons, forming four covalent bonds. Compounds of only carbon and hydrogen are hydrocarbons: saturated (single bonds only, like ethane) or unsaturated (at least one double or triple bond, like ethene and ethyne).
Carbon dioxide (CO₂) is made in the lab from calcium carbonate and dilute HCl. It is colourless, odourless, heavier than air, does not support burning, turns limewater milky and forms weak carbonic acid in water. It is used in fizzy drinks, fire extinguishers, dry ice and decaffeination.
Methane (CH₄), or marsh gas, makes up most of natural gas and 55–60% of biogas. It burns with a blue flame giving much heat, and reacts with chlorine in light. Biogas plants turn dung and wet waste into fuel and manure without air.
Get a ✓ Verified tutor for “Carbon: An Important Element” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A sample of coal is hard, burns with little smoke and is about 95% carbon. Which type is it, and which type gives the least heat?
Answer: It is anthracite; peat gives the least heat.
How many grams of CO₂ are formed when 16 g of methane burns completely? (C = 12, H = 1, O = 16)
Answer: 44 g of CO₂.
| Form | Structure | Key property and use |
|---|---|---|

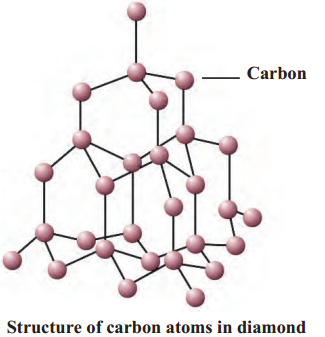

| Diamond | Each C bonded to 4 others, 3-D network | Hardest, non-conductor; cutting tools, jewellery |

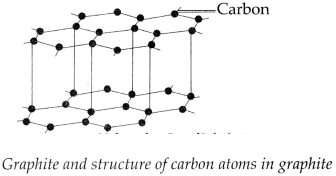

| Graphite | Each C bonded to 3, hexagonal layers | Soft, slippery, conducts; pencils, electrodes, lubricant |
| Fullerene (C₆₀) | Hollow ball or tube of carbon atoms | Soluble in organic solvents; buckyballs, nanotubes |
| Coal | Amorphous, with H, O, N, S | Fuel; source of coke, coal gas, coal tar |
| Charcoal | Amorphous; from wood or bones | Purifying water |
| Coke | Amorphous, nearly pure carbon | Fuel, reducing agent, water gas |
| Anthracite | About 95% carbon | Hardest, best quality coal |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Complete the statements (single, all, double, ionic, carbon, give and take, hydrogen, multiple, share, most, covalent): (a) A carbon atom forms a …… bond with other atoms; in it the two atoms …… electrons. (b) All carbon bonds in a saturated hydrocarbon …… electrons. (c) At least one carbon bond in an unsaturated hydrocarbon is …… (d) …… is essential in all organic compounds. (e) Hydrogen is present in …… organic compounds.
Answer: (a) covalent; share. (b) share (each bond is a single bond formed by sharing one pair). (c) multiple. (d) Carbon. (e) most.
2. (a) Why are carbon and its compounds used as fuels? (b) In which compound forms does carbon occur? (c) Write the uses of diamond.
Answer: (a) Carbon and its compounds burn in air to give large amounts of heat and light; they are easy to store and carry, burn at a controlled rate and are widely available (coal, petrol, LPG, natural gas, wood). (b) As CO₂ and carbonates (limestone, marble, calamine), fossil fuels (coal, petroleum, natural gas), nutrients (carbohydrates, proteins, fats) and natural fibres (cotton, wool, silk). (c) Cutting glass and drilling rock, jewellery, eye-surgery knives, diamond dust for polishing, and radiation-proof windows in spacecraft and satellites.
3. Explain the difference between (a) diamond and graphite (b) crystalline and non-crystalline forms of carbon.
Answer: (a) Diamond: each C bonded to 4 others in 3-D; hardest; transparent and brilliant; density 3.5 g/cm³; non-conductor; used in cutting tools and jewellery. Graphite: each C bonded to 3 others in sliding layers; soft and slippery; black; density 1.9–2.3 g/cm³; good conductor; used in pencils, lubricants and electrodes. (b) Crystalline: regular arrangement of atoms, definite shape with sharp edges, high melting points — diamond, graphite, fullerene. Non-crystalline (amorphous): irregular arrangement, no definite shape — coal, charcoal, coke.
4. Give scientific reasons: (a) Graphite conducts electricity. (b) Graphite is not used in ornaments. (c) Limewater turns milky with CO₂. (d) Biogas is an eco-friendly fuel.
Answer: (a) Each carbon uses only three of its four electrons in bonding; the fourth is free to move along the layer and carries current. (b) Graphite is black, dull, soft and brittle — it rubs off and breaks easily and has no sparkle, unlike diamond. (c) CO₂ reacts with calcium hydroxide to form insoluble white calcium carbonate: Ca(OH)₂ + CO₂ → CaCO₃ + H₂O; the suspended particles make it milky. (d) Biogas is made from waste (dung, garbage) which would otherwise rot; it burns cleanly with no smoke or soot, gives little pollution, reduces cutting of trees for firewood, and leaves slurry that is a good manure.
5. Explain: (a) Diamond, graphite and fullerenes are crystalline forms of carbon. (b) Methane is called marsh gas. (c) Petrol, diesel and coal are fossil fuels.
Answer: (a) In all three the carbon atoms are arranged in a regular, repeating pattern with a definite shape, so they are crystalline, though their patterns differ (3-D network, layers, cages). (b) Plant matter rotting without air under marsh water produces methane, which bubbles up on marshy land. (c) They formed over millions of years from remains of plants and animals buried under the earth and changed by heat and pressure.
6. Explain: (d) uses of the allotropes of carbon (e) use of CO₂ in fire extinguishers (f) practical uses of CO₂.

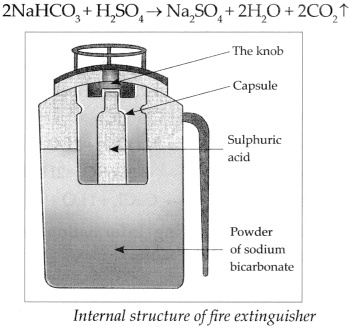

Answer: (d) Diamond — cutting, drilling, jewellery, surgery knives; graphite — pencils, lubricants, electrodes, arc lamps, paints; fullerene — research materials, catalysts, superconductors; coal — fuel and power; charcoal — purification; coke — fuel, reducing agent, water gas. (e) CO₂ is heavier than air and does not burn or support burning, so it covers the fire like a blanket and cuts off oxygen; it does not conduct electricity or corrode, so it suits electrical fires. In soda-acid type, 2NaHCO₃ + H₂SO₄ → Na₂SO₄ + 2H₂O + 2CO₂. (f) Fizzy drinks, dry ice for cooling and stage mist, fire extinguishers, removing caffeine from coffee, dry cleaning, and photosynthesis.
7. Write two physical properties each of (a) diamond (b) charcoal (c) fullerene.
Answer: (a) Diamond: hardest natural substance; density 3.5 g/cm³ (also: does not conduct electricity, insoluble in all solvents). (b) Charcoal: black, porous, light amorphous solid; does not dissolve in water and absorbs (adsorbs) impurities and gases. (c) Fullerene: occurs as hollow balls or tubes of 30–900 carbon atoms; dissolves in organic solvents such as carbon disulphide and chlorobenzene.
8. Complete the reactions: (1) …… + …… → CO₂ + 2H₂O + heat (2) …… + …… → CH₃Cl + HCl (3) 2NaOH + CO₂ → …… + ……
Answer: (1) CH₄ + 2O₂ → CO₂ + 2H₂O + heat. (2) CH₄ + Cl₂ → CH₃Cl + HCl (in UV light). (3) 2NaOH + CO₂ → Na₂CO₃ + H₂O.
9. (a) What are the types of coal and their uses? (b) How will you prove experimentally that graphite conducts electricity?
Answer: (a) Peat (under 60% C, much water, little heat), lignite (60–70% C), bituminous (70–90% C) and anthracite (about 95% C, hardest). Coal is used as fuel in homes and industry, in thermal power plants, and to make coke, coal gas and coal tar. (b) Connect a cell, a small bulb and wires in series, leaving a gap. Take the graphite lead out of a pencil (or sharpen both ends) and place it across the gap. The bulb glows, so current passes through graphite — it is a conductor.
10. (c) Explain the properties of carbon. (d) Classify carbon.
Answer: (c) Carbon is a non-metal with valency 4; it forms covalent bonds by sharing electrons and links to itself to form chains (catenation); it shows allotropy; its forms are insoluble in water; it burns in oxygen to give CO₂ (C + O₂ → CO₂), turning moist blue litmus slightly red; most forms are poor conductors except graphite. (d) Carbon → free state and combined state. Free state → crystalline (diamond, graphite, fullerene) and non-crystalline/amorphous (coal: peat, lignite, bituminous, anthracite; charcoal; coke). Combined state → CO₂ and carbonates, fossil fuels, food nutrients, natural fibres.
11. How will you verify the properties of carbon dioxide?

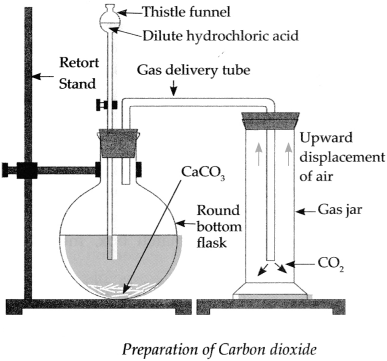

Answer: Prepare CO₂ from marble and dilute HCl and collect jars by upward displacement. Colour: look — colourless. Smell: waft gently — no smell. Burning candle lowered into a jar: it goes out (CO₂ does not support burning). Pour the jar over a candle: it goes out, showing CO₂ is heavier than air. Shake with water and add universal indicator: shows weakly acidic (CO₂ + H₂O → H₂CO₃). Moist blue litmus turns slightly red; red litmus stays red. Add limewater and shake: turns milky (Ca(OH)₂ + CO₂ → CaCO₃ + H₂O).
12. Project: Make a model of a biogas plant and explain gas production.
Answer: Sample: Use a large plastic bottle as the digester with a pipe at the top for gas and a valve; a funnel tube for the inlet and another tube for the outlet slurry. Explain: dung and water slurry enters the digester; without air, bacteria first break it into organic acids, then methanogenic bacteria convert the acids into methane and CO₂; the gas collects at the top and is piped out for cooking; spent slurry overflows into the outlet tank and is used as manure.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. The valency of carbon is…
Answer: B. Configuration 2, 4.
2. Urea was first made in a lab by…
Answer: C. From ammonium cyanate.
3. Which is NOT an allotrope of carbon?
Answer: C. Calamine is zinc carbonate.
4. In graphite each carbon is bonded to…
Answer: A. Forming hexagonal layers.
5. Which allotrope conducts electricity?
Answer: A. Free electrons in layers.
6. The hardest natural substance is…
Answer: C. Due to its 3-D network.
7. Which coal has the highest carbon content?
Answer: D. About 95%.
8. Which is a saturated hydrocarbon?
Answer: D. Only single bonds.
9. Ethyne contains a…
Answer: D. HC≡CH.
10. Covalent compounds generally…
Answer: A. They are usually insoluble in water.
11. CO₂ is collected by upward displacement of air because it is…
Answer: B. It sinks and pushes air up.
12. CO₂ passed through NaOH solution gives…
Answer: C. 2NaOH + CO₂ → Na₂CO₃ + H₂O.
13. CO₂ extinguishers suit electrical fires because CO₂…
Answer: B. And it does not corrode.
14. Methane forms about … of natural gas.
Answer: C. As the chapter states.
15. Methane + chlorine in light gives…
Answer: B. Chlorination.
