Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 54–57
What if you know only the perimeter of a triangle and the two angles on its base? Lay the whole perimeter flat as one straight segment, build a helper triangle on it using half of each base angle, and then cut the segment into the three sides with two perpendicular bisectors.
Given: the perimeter and the two angles at the ends of the base.
Draw one segment PQ as long as the whole perimeter.
At P draw half of one base angle and at Q half of the other; the two rays meet at the top vertex A.
The perpendicular bisectors of AP and AQ cut PQ at the two base vertices B and C.
Join AB and AC: AB = PB and AC = QC, so AB + BC + CA equals the perimeter.
Get a ✓ Verified tutor for “Practice Set 4.3 – Perimeter and the Two Base Angles” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
If AB = 4 cm, BC = 3 cm, CA = 5 cm, how long is PQ?
Answer: PQ = 12 cm
Base angles are ∠B = 64° and ∠C = 48°. Which angles are drawn at P and Q?
Answer: 32° at P and 24° at Q
Construct △ABC with perimeter 12 cm, ∠B = 60° and ∠C = 70°.
Answer: △ABC drawn; BC ≈ 3.6 cm, CA ≈ 4.0 cm, AB ≈ 4.4 cm
△LMN has ∠M = 50° and ∠N = 90°. Which side is the base and which half-angles are drawn?
Answer: Base MN; draw 25° and 45°
| What | Formula | Symbols |
|---|---|---|
| Perimeter as one segment | PQ = PB + BC + CQ = AB + BC + CA | PB = AB, CQ = CA |
| Exterior angle theorem | ∠ABC = ∠BPA + ∠BAP | remote interior angles |
| Half-angles | ∠APB = ½∠B, ∠AQC = ½∠C | 70° → 35°, 80° → 40° |
| Third angle | ∠A = 180° − ∠B − ∠C | 180 − 70 − 60 = 50° |
Solve each one in your notebook first. Then open the solution and compare every step.

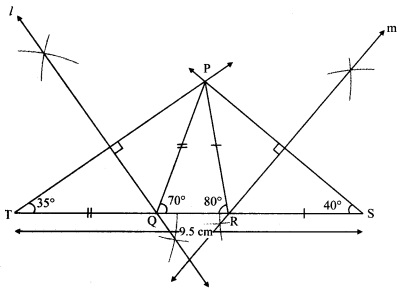

1. 1. Construct △PQR with ∠Q = 70°, ∠R = 80° and PQ + QR + PR = 9.5 cm.
Answer: △PQR drawn; QR ≈ 2.0 cm, PR ≈ 3.7 cm, PQ ≈ 3.9 cm

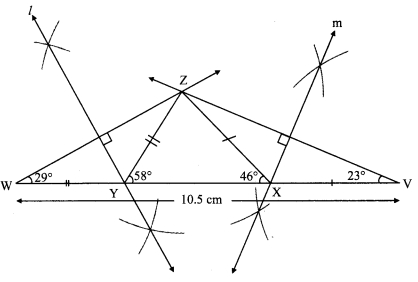

2. 2. Construct △XYZ with ∠Y = 58°, ∠X = 46° and perimeter 10.5 cm.
Answer: △XYZ drawn; XY ≈ 4.0 cm, YZ ≈ 3.0 cm, XZ ≈ 3.5 cm

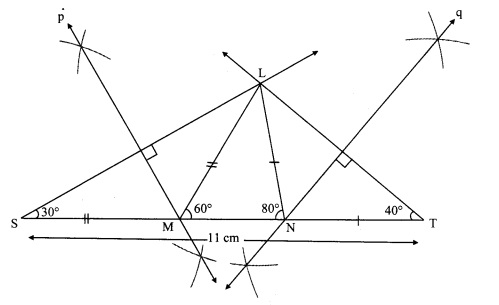

3. 3. Construct △LMN with ∠M = 60°, ∠N = 80° and LM + MN + NL = 11 cm.
Answer: △LMN drawn; MN ≈ 2.8 cm, LN ≈ 3.8 cm, LM ≈ 4.3 cm
4. Reasoning check: in Q1, show that the angle at Q of the final triangle really is 70°.
Answer: ∠PQR = 70°
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. Perimeter 9.5 cm, ∠Q = 70°, ∠R = 80°. The first segment drawn is…
Answer: B. The full perimeter.
2. For ∠B = 70°, the angle drawn at P is…
Answer: D. Half of ∠B.
3. In △PBA, PB = BA. So…
Answer: A. Angles opposite equal sides are equal.
4. An exterior angle of a triangle equals…
Answer: B. Exterior angle theorem.
5. B is found on PQ using…
Answer: D. BA = BP.
6. If PB = AB and CQ = AC then PQ equals…
Answer: C. PB + BC + CQ.
7. ∠X = 46°, ∠Y = 58°. Third angle ∠Z =
Answer: C. 180 − 104.
8. Half of 58° is…
Answer: A. 58 ÷ 2.
9. The helper triangle PAQ is drawn by which test-like rule?
Answer: D. Side PQ and two angles at its ends.
10. ∠M = 60°, ∠N = 80°. Angles drawn at the ends are…
Answer: A. Halves.
11. Which statement is false?
Answer: A. BC is only part of PQ.
12. For △XYZ with ∠X and ∠Y given, the top vertex is…
Answer: A. X and Y are on the base.
13. ∠B = 70°, ∠C = 60°, perimeter 11.2 cm. ∠A is…
Answer: B. 180 − 130.
14. A 23° angle is best drawn by…
Answer: B. 23° is not a standard compass angle.
15. If the two base angles were 100° and 90°…
Answer: B. Their sum exceeds 180°.
