Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 56–58
This problem set mixes all the triangle constructions of the chapter: sum of two sides, difference of two sides, perimeter with two base angles, and one new twist where the sides are given as a ratio. The skill to practise is spotting the type quickly and choosing the right method.
Base + base angle + sum of other two sides: mark the sum on the angle's ray, then bisect the segment joining that point to the other base end.
Base + base angle + difference of other two sides: mark the difference on the ray (if that side is longer) or on its opposite ray (if it is shorter), then bisect.
Perimeter + two base angles: draw the perimeter as one segment, draw half-angles at its ends, then bisect the two slanting segments.
Perimeter + ratio of sides: share the perimeter in the ratio to get the three sides, then construct by SSS.
Always start with a rough figure, and check the finished triangle by measuring.
Get a ✓ Verified tutor for “Problem Set 4 – Revision of Triangle Constructions” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Which method suits: BC = 5 cm, ∠C = 65°, AB − AC = 1 cm?
Answer: Difference method, helper point on the opposite ray
Perimeter 15 cm, sides in the ratio 3 : 5 : 7. Find the sides.
Answer: 3 cm, 5 cm and 7 cm
BC = 5 cm, ∠B = 60°, AB + AC = 8 cm. Where is the helper point and what are the sides?
Answer: BK = 8 cm; AB ≈ 3.5 cm, AC ≈ 4.5 cm
Perimeter 10 cm, ∠B = 90°, ∠C = 60°. Which angles are drawn at the ends?
Answer: 45° and 30°
| What | Formula | Symbols |
|---|---|---|
| Sum method | BK = AB + AC, A on perpendicular bisector of KC | K on the ray |
| Difference method | BK = |AB − AC|, A on perpendicular bisector of KC | K on the ray or opposite ray |
| Perimeter method | PQ = perimeter, angles ½∠B and ½∠C at P and Q | 70°, 60° → 35°, 30° |
| Sides from a ratio | side = perimeter × term ÷ (sum of terms) | 14.4 × 2 ÷ 9 = 3.2 cm |
Solve each one in your notebook first. Then open the solution and compare every step.

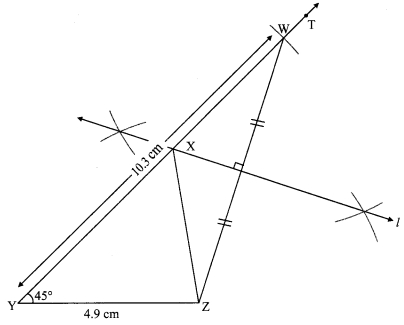

1. 1. Construct △XYZ with XY + XZ = 10.3 cm, YZ = 4.9 cm and ∠XYZ = 45°.
Answer: △XYZ drawn; XY ≈ 6.0 cm, XZ ≈ 4.3 cm

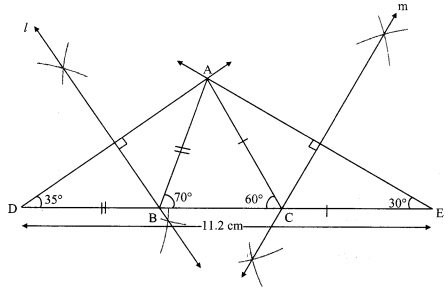

2. 2. Construct △ABC with ∠B = 70°, ∠C = 60° and AB + BC + AC = 11.2 cm.
Answer: △ABC drawn; BC ≈ 3.3 cm, AB ≈ 3.8 cm, AC ≈ 4.1 cm
3. 3. A triangle has perimeter 14.4 cm and its sides are in the ratio 2 : 3 : 4. Construct it.
Answer: Sides 3.2 cm, 4.8 cm, 6.4 cm; triangle drawn by SSS

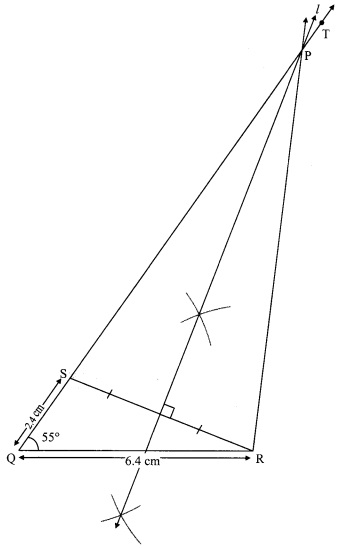

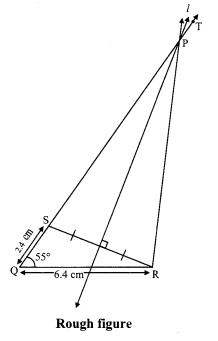

4. 4. Construct △PQR with PQ − PR = 2.4 cm, QR = 6.4 cm and ∠PQR = 55°.
Answer: △PQR drawn; PQ ≈ 13.8 cm, PR ≈ 11.4 cm
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. BC = 5 cm, ∠B = 45°, AB + AC = 8 cm. Which method?
Answer: B. A sum of two sides is given.
2. Perimeter 14.4 cm, ratio 2 : 3 : 4. Longest side?
Answer: C. 4 × 1.6.
3. Perimeter 11.2 cm, ∠B = 70°, ∠C = 60°. Angle at P is…
Answer: A. Half of ∠B.
4. In the difference method with AB longer, K is on…
Answer: B. Case 1.
5. Ratio 1 : 2 : 2, perimeter 10 cm. Sides?
Answer: B. One part = 2 cm.
6. Which set CANNOT form a triangle?
Answer: B. 2 + 3 < 6.
7. In the sum method the bisected segment joins…
Answer: C. KC.
8. PQ − PR = 2.4 cm, ∠Q given: helper point is…
Answer: C. PQ is the longer side on the ray.
9. A triangle with angles 70°, 60° has third angle…
Answer: D. 180 − 130.
10. The segment drawn first in the perimeter method equals…
Answer: B. AB + BC + CA laid flat.
11. Which instrument is enough for an SSS triangle (with a ruler)?
Answer: D. Arcs mark the side lengths.
12. Ratio 2 : 3 : 4 has how many parts?
Answer: D. 2 + 3 + 4.
13. The perpendicular bisector of a segment passes through…
Answer: D. Definition.
14. XY + XZ = 10.3 cm, YZ = 4.9 cm, ∠Y = 45°. K is on the 45° ray at…
Answer: C. Mark the sum.
15. The triangle with sides 3.2, 4.8, 6.4 cm is…
Answer: A. 3.2² + 4.8² = 33.28 < 6.4² = 40.96.
