Textbook: Mathematics – Class 9 (Balbharati, official free PDF) · pages 93–98
Plot several points that all have the same y value and they line up in a horizontal row; points sharing the same x value line up in a vertical column. That simple observation gives the equations y = b and x = a for lines parallel to the axes. In this set we also draw the graph of an equation such as 2x + y = 1 by making a small table of values, plotting the points and joining them with a straight line.

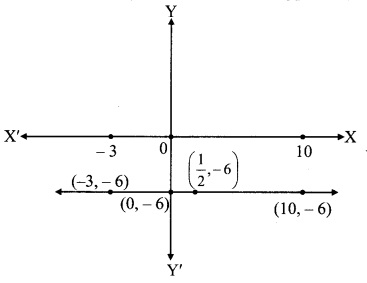

All points with the same y co-ordinate b lie on one line parallel to the X-axis; its equation is y = b.

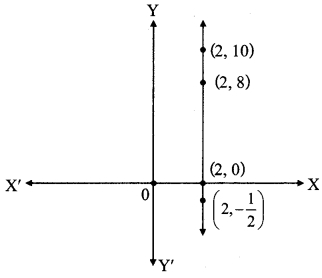

All points with the same x co-ordinate a lie on one line parallel to the Y-axis; its equation is x = a.
y = b is above the X-axis if b is positive and below it if b is negative; x = a is to the right of the Y-axis if a is positive and to the left if a is negative.
The X-axis itself is y = 0 and the Y-axis itself is x = 0.
To graph a linear equation in x and y, find at least three ordered pairs that satisfy it, plot them and join them; they lie on one straight line.
Get a ✓ Verified tutor for “Practice Set 7.2 – Lines Parallel to the Axes and Graphs of Equations” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Write the equation of the line parallel to the X-axis, 2.5 units above it. Is (−9, 2.5) on it?
Answer: y = 2.5; yes.
A line parallel to the Y-axis passes through (8, −1). Write its equation and its distance from the Y-axis.
Answer: x = 8; 8 units.
Where do the lines x − 2 = 0 and 2y + 8 = 0 meet?
Answer: (2, −4).
Draw the graph of x − y = 3 and find where it cuts the axes.
Answer: A straight line through (0, −3) and (3, 0).
| What | Formula | Symbols |
|---|---|---|
| Parallel to X-axis | y = b | 4 units below: y = −4 |
| Parallel to Y-axis | x = a | 7 units left: x = −7 |
| The axes | X-axis: y = 0; Y-axis: x = 0 | (5, 0) is on y = 0 |
| Distance from axis | y = b is |b| from the X-axis; x = a is |a| from the Y-axis | x = −4 is 4 units away |
| Meeting point | x = a and y = b meet at (a, b) | x = −1.5, y = 5 → (−1.5, 5) |
Solve each one in your notebook first. Then open the solution and compare every step.

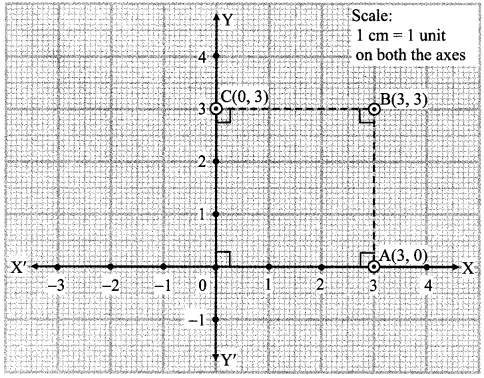

1. Q1. Plot A(3, 0), B(3, 3), C(0, 3) on graph paper and join AB and BC. Which figure is formed?
Answer: A square (OABC, side 3 units).
2. Q2. Equation of the line parallel to the Y-axis and 7 units to its left?
Answer: x = −7.
3. Q3. Equation of the line parallel to the X-axis, 5 units from it and below it?
Answer: y = −5.

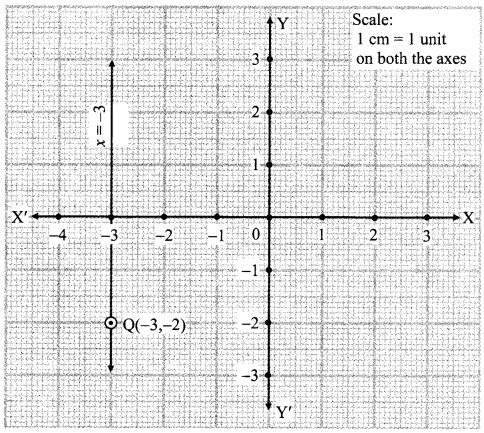

4. Q4. Q(−3, −2) lies on a line parallel to the Y-axis. Write the equation and draw the graph.
Answer: x = −3, a vertical line 3 units left of the Y-axis.
5. Q5. The X-axis and the line x = −4 — how far apart are they?
Answer: 4 units (the question's "X-axis" should read "Y-axis"; the book's answer 4 is that distance).
6. Q6. Which graphs are parallel to the X-axis and which to the Y-axis? (i) x = 3 (ii) y − 2 = 0 (iii) x + 6 = 0 (iv) y = −5
Answer: (i) Y-axis (ii) X-axis (iii) Y-axis (iv) X-axis.

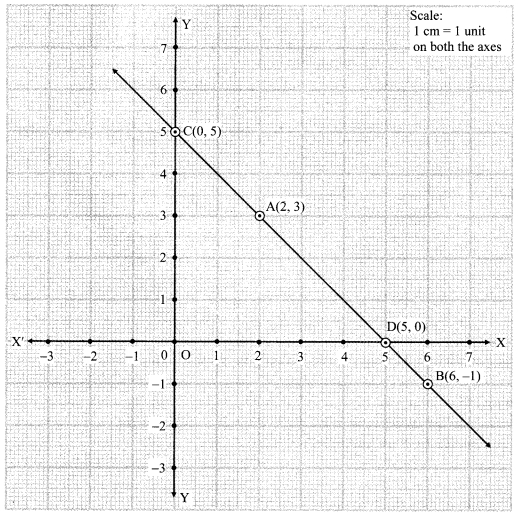

7. Q7. Plot A(2, 3), B(6, −1), C(0, 5). If they are collinear, draw the line and give the points where it meets the X-axis and the Y-axis.
Answer: Collinear; meets the X-axis at (5, 0) and the Y-axis at (0, 5).

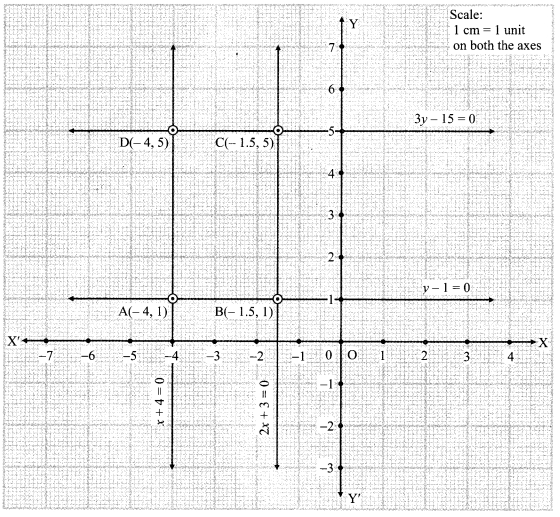

8. Q8. On one set of axes draw x + 4 = 0, y − 1 = 0, 2x + 3 = 0, 3y − 15 = 0 and write their points of intersection.
Answer: (−4, 1), (−1.5, 1), (−1.5, 5), (−4, 5).

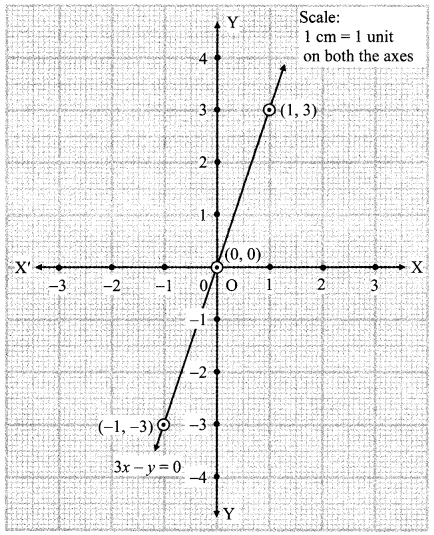

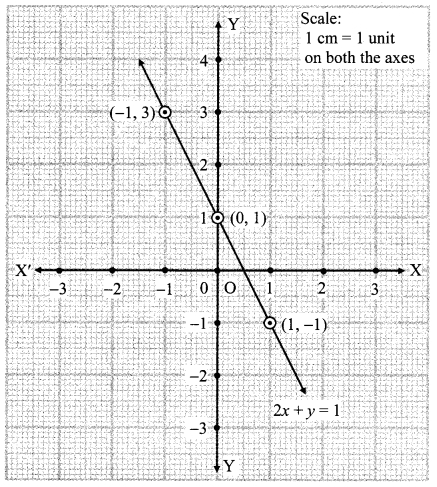

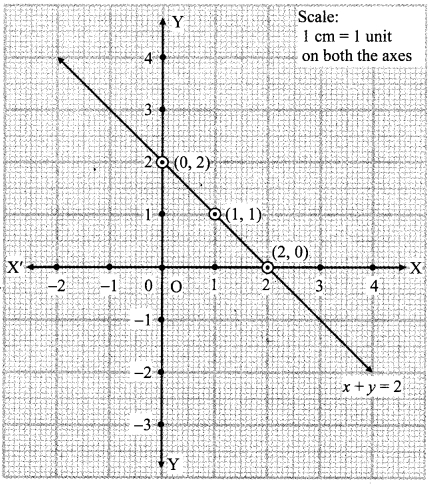

9. Q9. Draw the graphs of (i) x + y = 2 (ii) 3x − y = 0 (iii) 2x + y = 1.
Answer: Three straight lines through the points listed.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. A line parallel to the Y-axis, 7 units to its left, is…
Answer: C. Left of Y-axis → negative x.
2. A line parallel to the X-axis, 5 units below it, is…
Answer: D. Below → negative y.
3. The graph of y − 2 = 0 is parallel to…
Answer: A. It is y = 2.
4. The graph of x + 6 = 0 is parallel to…
Answer: D. It is x = −6.
5. The equation of the Y-axis is…
Answer: C. Every point on it has x = 0.
6. Lines x = −4 and y = 1 meet at…
Answer: A. (a, b) = (−4, 1).
7. Distance of the line x = −4 from the Y-axis is…
Answer: D. Distance is |−4| = 4.
8. Which point lies on 3x − y = 0?
Answer: D. 3(1) − 3 = 0.
9. The line x + y = 2 cuts the Y-axis at…
Answer: D. Put x = 0: y = 2.
10. Where does y = 5 − x cut the X-axis?
Answer: C. Put y = 0: x = 5.
11. 2x + 3 = 0 is the line…
Answer: D. x = −3/2.
12. Points A(3, 0), B(3, 3), C(0, 3) and O form a…
Answer: B. All sides 3 units, right angles.
13. All points with x co-ordinate 2 lie on a line…
Answer: B. x = 2 is vertical.
14. Which point is on 2x + y = 1?
Answer: B. 2 − 1 = 1.
15. 3y − 15 = 0 is the same line as…
Answer: D. 3y = 15.
