Motion in a PlaneClass 11 Physics Chapter 3 Notes – Maharashtra Board

Textbook: Physics – Class 11 (Balbharati, official free PDF) · pages 30–46

From a car braking on a straight road to a cricket ball flying over the boundary and a stone whirled on a string, this chapter describes motion with vectors. Revise displacement, velocity and acceleration in one dimension, read x-t and v-t graphs, derive the equations of motion, then extend them to two dimensions: relative velocity, projectile motion (time of flight, range, maximum height, parabolic path), uniform circular motion, centripetal acceleration and the conical pendulum — with every exercise solved.

🎧 Listen to the summary

Summary: Motion in a Plane

Motion can be along a line (rectilinear), in a plane (two dimensions) or in space (three dimensions). Displacement is the change in position vector, path length is the actual distance covered; average velocity = displacement ÷ time, average speed = path length ÷ time. Instantaneous velocity is v = dx/dt and instantaneous acceleration is a = dv/dt.

On an x-t graph the slope gives velocity; on a v-t graph the slope gives acceleration and the area under the curve gives displacement. For constant acceleration the v-t graph is a straight line, which leads to v = u + at, s = ut + ½at² and v² = u² + 2as.

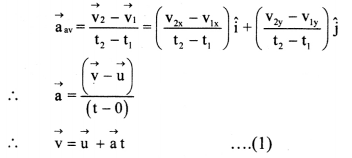

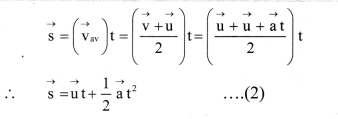

In a plane every vector has x and y components. With constant acceleration, v⃗ = u⃗ + a⃗t and s⃗ = u⃗t + ½a⃗t² hold in vector form, and they split into two independent straight-line motions along x and y. Relative velocity of A with respect to B is v⃗_AB = v⃗_A − v⃗_B.

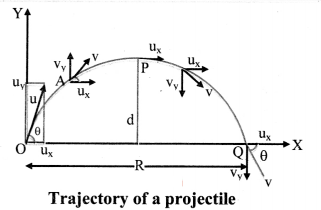

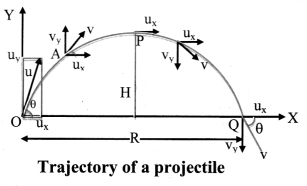

A projectile has a_x = 0 and a_y = −g, so its horizontal velocity u cosθ never changes while its vertical velocity u sinθ − gt falls to zero at the top. Time of flight T = 2u sinθ/g, maximum height H = u² sin²θ/(2g), range R = u² sin2θ/g (largest, u²/g, at θ = 45°). Its path y = (tanθ)x − gx²/(2u² cos²θ) is a parabola.

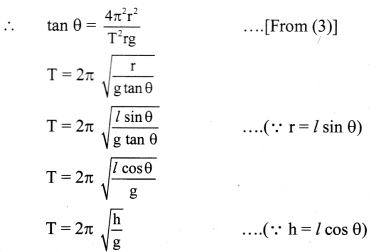

In uniform circular motion the speed is constant but the direction changes, so there is a centripetal acceleration a = v²/r = ω²r directed to the centre, needing a centripetal force mv²/r. Angular speed ω = 2π/T = v/r. For a conical pendulum tanθ = v²/(rg) and period T = 2π√(l cosθ/g).

Key points to remember

  • Displacement is a vector (change in position); path length is a scalar and is never smaller than the magnitude of displacement
  • Average velocity = Δx/Δt; average speed = path length/time; both have dimensions [L¹M⁰T⁻¹]
  • Instantaneous velocity v = dx/dt = slope of the tangent to the x-t graph; instantaneous speed always equals |instantaneous velocity|
  • Acceleration a = dv/dt, dimensions [L¹M⁰T⁻²]; it is the slope of the v-t graph
  • Area under a v-t graph between t₁ and t₂ = displacement in that interval (∫v dt = x(t₂) − x(t₁))
  • Equations for constant acceleration: v = u + at, s = ut + ½at², v² = u² + 2as
  • Starting from rest with uniform acceleration, distances in successive equal time intervals are in the ratio 1 : 3 : 5 : 7 …
  • Relative velocity v⃗_AB = v⃗_A − v⃗_B; v⃗_BA has the same magnitude but opposite direction; chain rule v⃗_AZ = v⃗_AB + v⃗_BC + … + v⃗_YZ
  • Motion in a plane = two independent rectilinear motions along perpendicular axes
  • Projectile: T = 2u sinθ/g, H = u² sin²θ/(2g), R = u² sin2θ/g = 2u_x u_y/g; R_max = u²/g at 45°
  • Trajectory of a projectile is a parabola: y = Ax − Bx²
  • Uniform circular motion: T = 2πr/v, ω = 2π/T = v/r (rad/s), centripetal acceleration v²/r = ω²r towards the centre, a⃗ = −ω²r⃗
  • Conical pendulum: T cosθ = mg, T sinθ = mv²/r, tanθ = v²/(rg), period 2π√(l cosθ/g) = 2π√(h/g)
