Textbook: Physics – Class 11 (Balbharati, official free PDF) · pages 47–77
Why does a rolling ball stop, why do you feel heavier in a lift that starts upward, and why does a bat hurt less when you pull your hands back? This chapter builds dynamics on Newton's three laws: F = dp/dt, inertial and non-inertial frames, pseudo forces, the four fundamental forces, conservative forces and work by a variable force, conservation of momentum, collisions and the coefficient of restitution, impulse, torque and couples, equilibrium, and centre of mass — with derivations, solved numericals and every textbook exercise answered.
Mechanics splits into statics (bodies at rest under balanced forces) and kinetics. Kinetics has two parts: kinematics only describes motion, while dynamics also asks what causes it (force or torque). Whether the path is a line, a circle or a parabola depends on how the initial velocity u and the acceleration a are oriented.
Aristotle thought a steady push is needed to keep a body moving; Galileo showed that bodies stop only because friction or drag acts. Newton's first law defines force and inertia, the second law gives F = dp/dt (which becomes F = ma only when mass is constant), and the third law says forces come in equal, opposite pairs acting on two different bodies.
Newton's laws hold in inertial frames. In a frame accelerating with a, we must add a pseudo force −ma (measurable, but not one of the four fundamental forces). This explains the weighing-scale reading in a lift: mg + ma going up with acceleration, mg − ma with downward acceleration.
Work done by a conservative force (gravity) does not depend on the path and is stored as potential energy; friction and air drag are non-conservative. For a variable force, W = ∫F ds = area under the F–s graph. Without external force the total linear momentum of a system stays constant — the starting equation for every collision and explosion problem.
Collisions are elastic (e = 1, KE conserved), inelastic (0 < e < 1) or perfectly inelastic (e = 0, bodies stick, maximum KE loss = ½·m₁m₂/(m₁+m₂)·(u₁−u₂)²). Impulse J = Δp = ∫F dt. Torque τ = r × F (τ = rF sin θ) is the turning effect of a force; a couple has torque rF that does not depend on the axis. The centre of mass, r = Σmᵢrᵢ/M, lets us treat a real body as a point mass.
Get a ✓ Verified tutor for “Laws of Motion” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A garden hose throws water horizontally at 2 m/s through a nozzle of area 5 cm². Find the force the gardener must apply to hold it still (density of water 1000 kg/m³).
Answer: 2 N, applied forward (in the direction of the jet) to balance the recoil.
A 60 kg student stands on a scale in a lift. What does the scale read (in N and kg wt) when the lift (a) accelerates up at 2 m/s², (b) accelerates down at 2 m/s²? Take g = 10 m/s².
Answer: (a) 720 N (72 kg wt); (b) 480 N (48 kg wt).
A force F = (2x + 3) N acts along x. Find the work it does as a body moves from x = 1 m to x = 3 m.
Answer: 14 J
Masses of 3 kg and 2 kg hang on either side of a light frictionless pulley (Atwood machine). Find the acceleration and the tension. g = 10 m/s².
Answer: a = 2 m/s² (3 kg goes down); T = 24 N.
A 2 kg ball moving at 6 m/s hits a 1 kg ball at rest and they stick together. Find the common velocity and the loss of kinetic energy.
Answer: 4 m/s; 12 J of kinetic energy is lost.
A 150 g cricket ball arrives at 20 m/s and is hit straight back at 30 m/s. Contact lasts 0.01 s. Find the impulse and the average force.
Answer: Impulse 7.5 N s; average force 750 N towards the bowler.
A 0.25 m spanner is pushed with 40 N at 30° to the handle. Find the torque. What is the largest torque this force can give?
Answer: 5 N m; maximum 10 N m when the push is at right angles to the spanner.
Masses of 2 kg and 3 kg are placed at x = 0 and x = 5 m. Locate their centre of mass.
Answer: 3 m from the 2 kg mass (2 m from the heavier one).
| Quantity / law | Formula | Unit and note |
|---|---|---|
| Second law | F = dp/dt = m dv/dt + v dm/dt | N; F = ma when mass is constant |
| Recoil of a jet | F = v dm/dt = ρAv² | hose pipe, rocket |
| Pseudo force | F = −ma (a = frame's acceleration) | lift: W = m(g ± a) |
| Gravitational force | F = Gm₁m₂/r²; g = GM/R² | G = 6.67 × 10⁻¹¹ N m²/kg² |
| Work, variable force | W = ∫F·ds = area under F–s graph | J; constant force: Fs cos θ |
| Potential energy | dU = −F·dx | only for conservative forces |
| Atwood machine | a = (m₂ − m₁)g/(m₁ + m₂); T = 2m₁m₂g/(m₁ + m₂) | light, frictionless pulley |
| Momentum conservation | m₁u₁ + m₂u₂ = m₁v₁ + m₂v₂ | no external force |
| Coefficient of restitution | e = (v₂ − v₁)/(u₁ − u₂) | 1 elastic, 0 perfectly inelastic |
| Elastic collision | v₁ = [(m₁ − m₂)u₁ + 2m₂u₂]/(m₁ + m₂) | swap 1 and 2 for v₂ |
| KE loss (perfectly inelastic) | ½·m₁m₂/(m₁ + m₂)·(u₁ − u₂)² | × (1 − e²) for general e |
| Impulse | J = Δp = F t = ∫F dt | N s; area under F–t graph |
| Torque | τ = r × F; τ = rF sin θ | N m; couple: τ = rF |
| Centre of mass | r = Σmᵢrᵢ/Σmᵢ = ∫r dm/M | cut-out: (MR − mr)/(M − m) |
Solve each one in your notebook first. Then open the solution and compare every step.
1. MCQ i) Equal and opposite pairs: (P) gravitational pulls of two point masses on each other, (Q) the couple used to turn a water tap, (R) weight and normal force on a book on a table. For which pair(s) do the forces NOT cancel each other's translational effect? (A) Only P (B) Only P and Q (C) Only R (D) Only Q and R
Answer: (A) Only P.
2. MCQ ii) Which of these are electromagnetic: (w) tension in a string, (x) normal force, (y) air resistance, (z) buoyant force? (A) w, y, z (B) w, x, y (C) x, y, z (D) All four
Answer: (D) All four.
3. MCQ iii) Point masses m, 2m and 3m are equidistant (side r). Considering only their mutual gravity, which mass feels the largest force? (A) m (B) 2m (C) 3m (D) all equal
Answer: (C) Mass 3m experiences the maximum force (9Gm²/r²).
4. MCQ iv) F₁ (a pull) and F₂ (a push), both at angle θ to the horizontal, just start a block sliding on a rough table. F₂ > F₁ because… (A) a component of F₂ adds to the weight and increases the normal reaction (B) a component of F₁ adds to the weight (C) a component of F₂ adds to the opposing force (D) a component of F₁ adds to the opposing force
Answer: (A)
5. MCQ v) Mass 2m moving with speed u approaches head-on a mass m moving with speed 2u; e = 0.5. Ratio of their speeds after collision? (A) 2/3 (B) 3/2 (C) 2 (D) 1/2
Answer: (D) 1/2 (both bounce back).
6. MCQ vi) A uniform rod of mass 2m hangs horizontally from two vertical strings at its ends. A boy of mass 3m hangs at one-third of its length. Ratio of tension in the string near the boy to the other? (A) 2 (B) 1.5 (C) 4/3 (D) 5/3
Answer: (B) 1.5
7. MCQ vii) Select the WRONG statement about centre of mass: (A) the c.m. of a 'C'-shaped uniform rod can never lie on the rod (B) if a force's line of action passes through the c.m., its moment is zero (C) the Earth's c.m. is not at its geometric centre (D) when an object is balanced on a pivot, the line of action of its weight passes through its c.m.
Answer: (B) is the statement that fails in general (moment depends on the chosen axis). Note: if a fixed axis is not intended, (C) can also be argued wrong, since the Earth's mass is almost symmetric about its centre.
8. MCQ viii) For which objects will the c.m. NOT be at the geometric centre? (I) an egg (II) a cylindrical box full of rice (III) a cubical box of assorted sweets. (A) Only I (B) Only I and II (C) Only III (D) All three
Answer: (D) All three (strictly, I and III certainly; II only slightly, because of settling of rice).
9. 2 i) Match each force with all types that apply: A tension in a string, B normal force, C frictional force, D resistive force of air or water; P EM force, Q reaction force, R conservative force, S non-conservative force.
Answer: A – P, Q, R; B – P, Q, R; C – P, Q, S; D – P, Q, S.
10. 2 ii, iii) Why don't real objects keep moving uniformly on a horizontal surface unless something is done? What must be done? We never use the first law directly — why study it?
Answer: Friction from the surface and drag from the air always oppose motion, so the body loses momentum and stops. To keep uniform velocity we must apply a force just equal and opposite to these resistive forces so that the net force is zero. The first law is studied because it defines force (whatever changes the state of motion), defines inertia and mass, shows that rest and uniform motion are equivalent states, and identifies inertial frames — the frames in which the second and third laws can be applied.
11. 2 iv, v) When can't we apply Newton's laws, and what is the alternative? In a closed capsule you suddenly feel pushed to your right — explain. Is it real? Give one more such case.
Answer: Newton's laws fail (a) in non-inertial frames — fix by adding a pseudo force −ma; (b) at speeds close to that of light — use Einstein's special relativity; (c) for atoms, molecules and smaller particles — use quantum mechanics; they are framed for point masses and rigid bodies. In the capsule, the capsule must have accelerated towards your LEFT (or turned left); in its frame you feel a pseudo force −ma to the right. It is real in the sense that it is measurable (a spring balance would record it), though it is not a fundamental force. Similar cases: being thrown forward when a bus brakes, feeling heavier in a lift starting upward, or being pushed outward on a turning merry-go-round.
12. 2 vi, vii, viii) Which fundamental force governs daily life? Odd man out: string becoming taut, weight of an object, force with which we hold an object. Do you and a friend sitting nearby attract gravitationally? Why don't you come together?
Answer: The electromagnetic force: friction, normal reaction, tension, muscle force, elastic and viscous forces, chemical bonding — practically all daily forces except our weight are EM. Odd man out: weight of an object (gravitational; the other two are EM). Yes, two people attract each other, but for 50 kg each at 1 m the force is only about 1.7 × 10⁻⁷ N, far smaller than the limiting friction between us and the ground, so we do not move. Friction (an EM force) and the Earth's pull through the normal reaction come into the picture.
13. 2 ix) Distinguish: (A) real and pseudo forces (B) conservative and non-conservative forces (C) contact and non-contact forces (D) inertial and non-inertial frames.
Answer: (A) Real forces belong to the four fundamental interactions and obey Newton's laws in inertial frames (gravity, friction); pseudo forces −ma appear only in accelerated frames, are measurable but not fundamental (feeling heavier in a lift). (B) Conservative: work depends only on end points, mechanical energy conserved, PE defined (gravity, spring); non-conservative: work depends on path, energy lost as heat or sound (friction, drag). (C) Contact forces need physical touching and are EM (normal force, friction, collision forces); non-contact forces act at a distance (gravitational, electrostatic, magnetic). (D) Inertial frame: first law holds, frame is unaccelerated (ground for daily work); non-inertial frame: accelerating, needs pseudo forces (a car starting or turning).
14. 2 x, xi) State the formula for work. What are its limitations and the way out? Justify: 'work and energy are two sides of a coin'.
Answer: W = F·s = Fs cos θ, θ being the angle between force and displacement. It holds only when both the force and the displacement are constant and finite; for a force that varies with position (gravity over large heights, drag depending on speed) we split the path into tiny ds, find dW = F·ds and integrate: W = ∫F·ds, which equals the area under the F–s graph. Work and energy are two sides of one coin because work done on a body always shows up as an equal change in its energy — as KE (work–energy theorem), as PE for a conservative force, or as heat and sound against friction — and energy is precisely the capacity to do work; both are measured in joules.
15. 2 xii) A ball of mass m is dropped from a terrace of height H and hits the ground with speed v. Is mgH = ½mv² exact? How do you account for any difference? Will it bounce back to the same height?
Answer: Not exactly. Air resistance acts on the ball, so mgH = ½mv² + W(air), where W(air) = ∫F ds is the work done against the speed-dependent drag (appearing as heat and sound). Hence ½mv² is slightly less than mgH. The ball will not return to H: the impact with the ground is inelastic (e < 1), some KE is lost as heat, sound and deformation, and air resistance acts again on the way up.
16. 2 xiii) State the law of conservation of linear momentum. Of which law is it a consequence? Give a daily example. Does it hold during the bursting of a cracker?
Answer: If no net external force acts on a system, its total linear momentum remains constant during any interaction. It follows from Newton's second law (F = dp/dt = 0 ⇒ p constant) and is also consistent with the third law, since internal forces cancel in pairs. Example: a gun recoils backward when the bullet goes forward; a boat moves back when a person jumps ashore. Yes, it holds when a cracker bursts: the explosive forces are internal, so the vector sum of momenta of all fragments equals the momentum just before bursting (zero for a cracker at rest), although kinetic energy increases.
17. 2 xiv) Define coefficient of restitution and find its value for an elastic and a perfectly inelastic collision.
Answer: e is the negative of the ratio of the relative velocity of separation to the relative velocity of approach. Elastic: v₂ − v₁ = u₁ − u₂, so e = 1. Perfectly inelastic: bodies move together, v₂ − v₁ = 0, so e = 0. For all real collisions 0 ≤ e ≤ 1.
18. 2 xv) Special cases of elastic head-on collisions: (i) identical bodies, (ii) a very heavy body hits a light one at rest, (iii) a very light body hits a massive one at rest.
Answer: (i) They exchange velocities (v₁ = u₂, v₂ = u₁). (ii) v₁ ≈ u₁ and v₂ ≈ 2u₁ — the heavy body hardly changes, the light one flies off at double speed. (iii) v₁ ≈ −u₁ and v₂ ≈ 0 — the light body bounces back with the same speed, like a ball dropped on the Earth.
19. 2 xvi) A bullet of mass m₁ moving at u embeds in a block of mass m₂ at rest. Find the loss in KE. Does this violate energy conservation?
Answer: Loss in KE = m₁m₂u² / [2(m₁ + m₂)]. It does not violate conservation of energy: total energy is conserved, but the lost kinetic energy turns into heat, sound and the work of deforming the wood as the bullet penetrates.
20. 2 xvii) Which quantity relates to the change of momentum produced by a force? Explain it for a variable force. When do we use it instead of force?
Answer: Impulse J = change in momentum = p₂ − p₁. For a constant force J = F t. For a varying force J = ∫F dt, which is the area under the F–t graph (force axis from zero). We use impulse when a large force acts for a very short, hard-to-measure time — a bat hitting a ball, a kick, a hammer on a nail, a ball bouncing — because the change in momentum can be measured even though the force and the time cannot be measured separately.
21. 2 xviii, xix) When is it easy to rotate an object (door, tap)? Define the vector involved. How does it differ for a single force and a couple? Why is the moment of a couple independent of the axis?
Answer: Rotation is easy when the force is applied far from the axis and at right angles to the line joining the axis to the point of application, since τ = rF sin θ is then maximum. The vector is torque, τ = r × F (N m), perpendicular to the plane of r and F. A single force's torque depends on the axis and point of application and can also cause translation; a couple (two equal, opposite, non-collinear forces) gives pure rotation, its torque = F × perpendicular separation, and it can be balanced only by another couple. Wherever the axis is, the two individual torques add (x + y)F or subtract (q − p)F to give the same rF, because only the separation of the lines of action matters.
22. 2 xx, xxi) Explain mechanical equilibrium. A rotating fan has zero overall linear velocity — is it in mechanical equilibrium? Why do we need the centre of mass, and when can it differ from the c.g.?
Answer: A system is in mechanical equilibrium when the net force on every part of it is zero, so every part has constant (or zero) momentum and no acceleration. A rotating fan is not in mechanical equilibrium: each blade element moves in a circle and has centripetal acceleration, so a net (centripetal) force acts on it, even though the velocity of the fan as a whole (its c.m.) is zero. We need the c.m. because Newton's laws are written for point masses; the c.m. lets us treat a real body as a particle carrying all its mass. The c.g. differs from the c.m. only when g varies across the body — for objects whose size is comparable to the Earth (thousands of km); then the c.g. lies slightly lower than the c.m.
23. 3 i) A 5 ton truck at 36 km/h stops in 1 km after its engine fails. What fraction of its weight is the friction? What if a 1 ton car does the same?
Answer: 1/200 of the weight for both truck and car (matches the book).

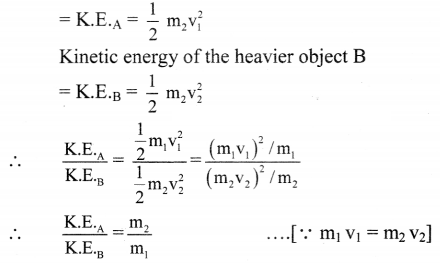

24. 3 ii) A lighter body A and a heavier body B at rest are given the same momentum. Which starts with more kinetic energy?
Answer: A, the lighter body (matches the book).
25. 3 iii) A weighing machine in a lift reads 50 kg wt, then for a few seconds 45 kg wt. What happened?
Answer: The lift had a downward acceleration of 1 m/s² (g/10) — it was starting to move down (or slowing while going up). Matches the book.
26. 3 iv) A 35 kg block on a rough table (maximum resistive force 10% of its weight) has a 20 kg wt load hanging on the left and a 2 kg wt pan on the right. How many 1 kg wt weights (minimum and maximum) can be put in the pan so the block does not slide?
Answer: Minimum 15, maximum 21 weights (matches the book).
27. 3 v) A constant force F acts on a body of mass m starting from rest. Power at time t is proportional to (a) t (b) t² (c) √t (d) t⁰. Derive P in terms of F, m and t.
Answer: P = F²t/m, so P ∝ t: option (a). Matches the book.
28. 3 vi) 40000 litres of oil (density 0.9 g/cc) are pumped 10 m up in half an hour. Find the pump's power.
Answer: 2 kW (matches the book).
29. 3 vii) Ten identical masses m hang one below another on 10 strings. Holding the topmost string, the system is accelerated upward at g/2. Find the tension in the 6th string from the top.
Answer: The book prints 6 mg; the correct answer is 7.5 mg (6 mg would be the tension in the 7th string, which holds four masses).
30. 3 viii) Galaxies of 9 billion and 4 billion solar masses are 5 million light years apart. Where on the line joining them is the Sun pulled equally by both?
Answer: 3 million light years from the 9-billion-solar-mass galaxy (matches the book).
31. 3 ix) A force decreasing linearly from 5 N to 3 N displaces a body from 3 m to 5 m. Find the work done.
Answer: The book prints 8 N; the correct answer is 8 J (work is measured in joules).
32. 3 x) F = 6x² − 4x − 8 (N) displaces a body from x = 1 m to x = 2 m. Find the work done.
Answer: Zero (matches the book).
33. 3 xi) A 100 g ball dropped from 5 m keeps bouncing; at each bounce 64% of its energy is kept as KE. Find (a) e, (b) the speed going up after the third bounce, (c) the impulse in that bounce, (d) the average force if contact lasts 250 ms, (e) the pressure if contact area is 0.5 cm².
Answer: 0.8; 5.12 m/s; 1.152 N s; 4.608 N; 9.216 × 10⁴ N/m² (all match the book).
34. 3 xii) A 0.5 kg ball falls freely for 10 s and then explodes into fragments in the mass ratio 1 : 2. The lighter one continues down at 60 m/s. Find the KE supplied by the explosion.
Answer: 200 J (matches the book).
35. 3 xiii) A marble of mass 2m moving at 6 cm/s is followed by a marble of mass m at 12 cm/s. After the collision the heavier one moves at the average of the two initial speeds. Find e.
Answer: e = 0.5 (matches the book).
36. 3 xiv) A 2 m, 20 kg plank rests on pivots 0.5 m from each end. A 40 kg person walks from one pivot towards the farther end. How far can the person go before the plank tips?
Answer: 1.25 m (matches the book).
37. 3 xv) A 2 m, 10 kg ladder leans on a smooth wall with its foot 1.2 m out. The ground can give a horizontal force up to half the normal reaction. How far up can a 20 kg monkey climb, and what is the horizontal reaction at the wall then?
Answer: 1.5 m along the ladder (matches the book). The book prints the wall reaction as 15 N; the correct answer is 150 N (= 15 kg wt).
38. 3 xvi) Uniform solid cubes of edges 10, 20, 30 and 40 cm stand on the ground touching in that order. Locate the centre of mass.
Answer: (65 cm, 17.7 cm) from the outer edge of the 10 cm cube at ground level (matches the book).
39. 3 xvii) A spherical cavity of radius R/2 is made in a uniform solid sphere of radius R, touching both the centre and the surface. Locate the c.m. of the rest.
Answer: x = −R/14, i.e. R/14 from the centre on the side opposite the cavity (matches the book).
40. 3 xviii) Match each type with all suitable illustrations: (a) elastic, (b) inelastic, (c) perfectly inelastic, (d) head-on — (i) ball hit by a bat, (ii) gas molecules hitting the wall, (iii) stationary marble A hit by B, B comes to rest, (iv) clay sticking to the ground, (v) kicking a wall, (vi) striker hitting the carrom boundary at right angles and rebounding.
Answer: (a) elastic – ii, iii; (b) inelastic – i, vi; (c) perfectly inelastic – iv, v (the foot does not rebound); (d) head-on – iii, iv, vi (and v if the kick is straight at the wall).
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. Which branch of mechanics describes motion without its cause?
Answer: B. Kinematics only describes.
2. F = ma cannot be used directly for…
Answer: D. Its mass changes, so the v dm/dt term is needed.
3. A 50 kg person in a lift accelerating up at 2 m/s² (g = 10) has apparent weight…
Answer: B. m(g + a) = 50 × 12.
4. Pseudo forces are…
Answer: D. A scale records them, yet they are non-real.
5. Friction, tension and normal reaction are basically…
Answer: C. They come from intermolecular EM forces.
6. Which is a conservative force?
Answer: D. Its work is path independent.
7. F = 4x N acts from x = 0 to x = 2 m. Work done is…
Answer: D. ∫4x dx = 2x² = 8 J.
8. For a perfectly inelastic collision e equals…
Answer: D. Bodies move together, separation speed zero.
9. Two equal masses collide elastically head-on, one at rest. After the collision the striker…
Answer: C. Velocities are exchanged.
10. A very heavy body hits a light one at rest elastically with speed u. The light body moves at about…
Answer: D. v₂ ≈ 2u₁ when m₁ ≫ m₂.
11. The SI unit of impulse is…
Answer: D. Impulse = force × time.
12. A fielder pulls the hands back while catching to…
Answer: D. Same Δp over longer time.
13. A 20 N force at 0.5 m from a hinge, at 90° to the door, gives a torque of…
Answer: B. τ = rF = 0.5 × 20.
14. A ball at the top of a hill is in…
Answer: C. PE is maximum there.
15. The centre of mass of 1 kg at x = 0 and 3 kg at x = 4 m is at…
Answer: A. (0 + 12) ÷ 4 = 3 m.
