Textbook: Physics – Class 11 (Balbharati, official free PDF) · pages 78–99
Why does an apple fall, why does the Moon keep circling the Earth, and how fast must a rocket go to leave for good? This chapter covers Kepler's three laws, Newton's law of gravitation, the Cavendish experiment, the value of g and how it changes with height, depth, latitude and shape, gravitational potential energy and potential, escape velocity, satellites (critical speed, period, weightlessness, binding energy), with worked numericals and every exercise solved.
Kepler, using Tycho Brahe's careful records, found three rules for planets: orbits are ellipses with the Sun at one focus; the Sun–planet line sweeps equal areas in equal times (a result of angular momentum conservation under a central force); and T² ∝ r³, where r is the semimajor axis.
Newton showed that the Moon's acceleration (about 0.0027 m/s²) is 1/3600 of g, while the Moon is about 60 Earth radii away — so gravity falls off as 1/r². His universal law: F = Gm₁m₂/r², with G = 6.67 × 10⁻¹¹ N m²/kg², measured with the Cavendish torsion balance. Inside a uniform hollow shell the net pull is zero; outside a uniform sphere, all mass acts as if at the centre.

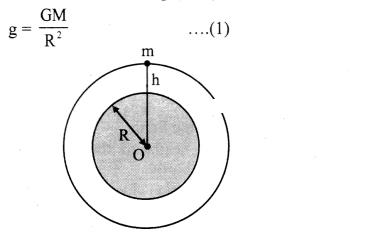

On the surface g = GM/R², independent of the falling body's mass. Going up, g_h = gR²/(R + h)² ≈ g(1 − 2h/R) for small h; going down, g_d = g(1 − d/R), which is zero at the centre. Rotation and the Earth's bulge make g smallest at the equator (9.7804 m/s²) and largest at the poles (9.8322 m/s²): g′ = g − Rω²cos²θ.
Gravitational potential energy of mass m at distance r from Earth's centre is U = −GMm/r (zero at infinity); near the surface the change is ΔU ≈ mgh. Potential V = U/m = −GM/r. Escape velocity v_e = √(2GM/R) = √(2gR) ≈ 11.2 km/s.
A satellite in a circular orbit of radius r = R + h has critical speed v_c = √(GM/r) (about 7.92 km/s near the surface) and period T = 2π√(r³/GM), so T² ∝ r³. Its KE = GMm/2r, PE = −GMm/r, total energy = −GMm/2r and binding energy = +GMm/2r. Astronauts feel weightless because they and the craft are in free fall.
Get a ✓ Verified tutor for “Gravitation” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A planet's average distance from the Sun is 4 times the Earth's. How long is its year?
Answer: 8 Earth years (about 2920 days).
Two students of masses 50 kg and 80 kg stand 2 m apart. Find the gravitational force between them.
Answer: 6.67 × 10⁻⁸ N
Find g at (a) a height of 32 km and (b) a depth of 1600 km. Take g = 9.8 m/s², R = 6400 km.
Answer: (a) about 9.70 m/s²; (b) 7.35 m/s².
A planet has twice the Earth's mass and half its radius. Find the escape velocity there (Earth: 11.2 km/s).
Answer: 22.4 km/s
A 1000 kg satellite circles the Earth 600 km above the surface. Find its speed, period, KE, PE, total energy and binding energy. (G = 6.67 × 10⁻¹¹ N m²/kg², M = 6 × 10²⁴ kg, R = 6400 km)
Answer: v ≈ 7.56 km/s, T ≈ 97 min, KE ≈ 2.86 × 10¹⁰ J, PE ≈ −5.72 × 10¹⁰ J, TE ≈ −2.86 × 10¹⁰ J, BE ≈ 2.86 × 10¹⁰ J.
| Quantity / law | Formula | Unit and note |
|---|---|---|
| Kepler's third law | T² ∝ r³; T₂/T₁ = (r₂/r₁)^(3/2) | r = semimajor axis |
| Areal velocity | ΔA/Δt = L/2m = constant | m²/s; from angular momentum conservation |
| Law of gravitation | F = Gm₁m₂/r² | N; G = 6.67 × 10⁻¹¹ N m²/kg², [L³M⁻¹T⁻²] |
| Cavendish balance | GmML/r² = Kθ | K = restoring torque per unit twist |
| g at surface | g = GM/R² = (4/3)πρGR | m/s²; independent of the body's mass |
| g at height h | g_h = gR²/(R + h)² ≈ g(1 − 2h/R) | approximation only for h ≪ R |
| g at depth d | g_d = g(1 − d/R) | zero at the centre |
| g at latitude θ | g′ = g − Rω²cos²θ | least at equator, equals g at poles |
| Gravitational PE | U = −GMm/r | J; zero at infinity; ΔU ≈ mgh for h ≪ R |
| Gravitational potential | V = −GM/r | J/kg |
| Escape velocity | v_e = √(2GM/R) = √(2gR) | ≈ 11.2 km/s for Earth |
| Critical speed | v_c = √(GM/(R + h)); near surface √(gR) | ≈ 7.92 km/s near surface |
| Period of satellite | T = 2π√((R + h)³/GM) | near surface 2π√(R/g) ≈ 85 min |
| Satellite energies | KE = GMm/2r, PE = −GMm/r, TE = −GMm/2r | binding energy = GMm/2r |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Choose the correct option: (i) g is maximum at — (A) equator (B) centre of Earth (C) pole (D) slightly above the surface. (ii) Weight of a particle at the centre of the Earth is — (A) infinite (B) zero (C) same as elsewhere (D) more than at the poles. (iii) Gravitational potential due to the Earth is minimum at — (A) centre (B) surface (C) a point inside but not the centre (D) infinity. (iv) Binding energy of an orbiting satellite is 3 × 10⁹ J; its KE is — (A) 6 × 10⁹ J (B) −3 × 10⁹ J (C) −6 × 10⁹ J (D) 3 × 10⁹ J.
Answer: (i) C — the pole; (ii) B — zero; (iii) A — the centre of the Earth; (iv) D — 3 × 10⁹ J.
2. Short answers: (a) State Kepler's laws of areas and periods. (b) Dimensions of G. (c) Define binding energy of a satellite. (d) What is a geostationary satellite? (e) On what does escape speed depend? (f) How do mass and weight change from planet to planet? (g) Why is at least a two-stage rocket needed?
Answer: (a) Areas: the Sun–planet line covers equal areas in equal times. Periods: T² ∝ r³, r being the semimajor axis. (b) [L³ M⁻¹ T⁻²]. (c) The least energy that must be supplied to an orbiting satellite to free it from the Earth's pull; it equals GMm/2r. (d) A satellite in the equatorial plane, moving in the same sense as Earth's spin with a 24 h period, so it appears fixed above one place; used for TV, telephone and radio links. (e) On the mass M and radius R of the planet (v_e = √(2GM/R)) — not on the body's mass. (f) Mass stays the same everywhere; weight mg changes because g = GM/R² differs from planet to planet. (g) One stage can only push the satellite upward; to orbit it needs, at the right height, a precise horizontal speed. Stage 1 lifts it, the launcher is turned through 90°, and stage 2 supplies the horizontal critical speed.
3. Derive an expression for the critical velocity of a satellite and state what it depends on.
Answer: v_c = √(GM/(R + h)). It depends on the planet's mass and the orbit radius (height), not on the satellite's mass; it decreases as height increases.
4. Derive the escape speed from the surface of the Earth, and the binding energy of a body at rest on the Earth's surface.
Answer: v_e = √(2GM/R) ≈ 11.2 km/s; binding energy at rest on the surface = GMm/R (= mgR).
5. Binding energy of an orbiting satellite: obtain the expression.
Answer: Binding energy = GMm/2r = GMm/[2(R + h)].
6. Why do astronauts in an orbiting satellite feel weightless? Where on the Earth is g maximum and minimum, and why?
Answer: Astronauts and the craft fall freely together, so no floor pushes on them — apparent weight is zero. g is maximum at the poles (no rotational reduction since cos 90° = 0, and the smaller polar radius, 6356 km) and minimum at the equator (largest reduction Rω² and the bigger equatorial radius, 6378 km): 9.8322 m/s² versus 9.7804 m/s².

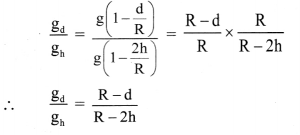

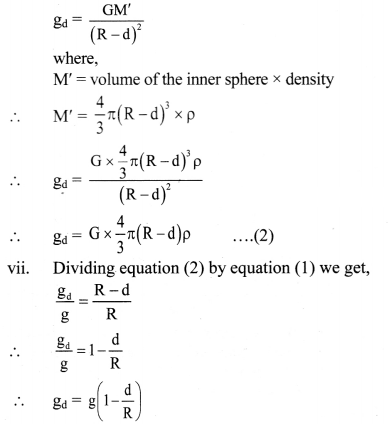

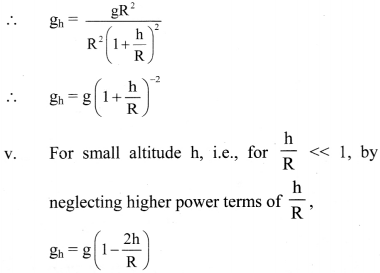

7. State the formula for g at depth d and altitude h, and show that their ratio is (R − d)/(R − 2h) when h ≪ R.
Answer: g_d/g_h = (R − d)/(R − 2h).
8. Describe the possible orbits of a satellite depending on its horizontal speed of projection v_h.
Answer: v_h < v_c: ellipse with the launch point as apogee and Earth at a focus; if it dips into the air, drag makes it spiral down. v_h = v_c: steady circular orbit. v_c < v_h < v_e: ellipse with the launch point as perigee. v_h = v_e: parabola — it never returns, speed tends to zero at infinity. v_h > v_e: hyperbola — it escapes.
9. 4(i) At what depth below the surface does g fall by 10% of its surface value? R = 6400 km.
Answer: 640 km (matches the book).
10. 4(ii) If the Earth were made of wood, its mass would be 10% of the present value (same size). Find the escape speed.
Answer: ≈ 3.54 km/s (matches the book).
11. 4(iii) A 2000 kg satellite orbits 3600 km above the Earth. Find KE, PE, TE and BE. (G = 6.67 × 10⁻¹¹ N m²/kg², R = 6400 km, M = 6 × 10²⁴ kg)
Answer: KE = 40.02 × 10⁹ J, PE = −80.04 × 10⁹ J, TE = −40.02 × 10⁹ J, BE = 40.02 × 10⁹ J. The book prints PE = −80.09 × 10⁹ J and TE = −40.07 × 10⁹ J; the correct values are −80.04 × 10⁹ J and −40.02 × 10⁹ J (TE must be exactly half of PE).
12. 4(iv) Satellites A and B orbit a planet with periods 1 h and 8 h. B's orbit radius is 4 × 10⁴ km. Find A's orbit radius.
Answer: 1 × 10⁴ km (matches the book).
13. 4(v) Find the gravitational force between the Sun (1.99 × 10³⁰ kg) and the Earth (5.98 × 10²⁴ kg), 1.5 × 10¹¹ m apart.
Answer: ≈ 3.5 × 10²² N (matches the book).
14. 4(vi) Find g at a height of 300 km. (M = 5.98 × 10²⁴ kg, R = 6400 km)
Answer: ≈ 8.89 m/s² (book: 8.889 m/s²).
15. 4(vii) Find the speed of a satellite 1000 km above the Earth. (M = 5.98 × 10²⁴ kg, R = 6.4 × 10⁶ m)
Answer: ≈ 7.34 × 10³ m/s (matches the book).
16. 4(viii) Find g on Mars: radius 3.4 × 10³ km, mass 6.4 × 10²³ kg.
Answer: ≈ 3.69 m/s² (matches the book).
17. 4(ix) A planet has mass 6.4 × 10²⁴ kg and radius 3.4 × 10⁶ m. Find the energy needed to take an 800 kg object from its surface to infinity.
Answer: ≈ 1.00 × 10¹¹ J. The book prints 5.02 × 10¹⁰ J; the correct answer is 1.00 × 10¹¹ J. The book's value is GMm/2R, which would be the binding energy of a satellite orbiting just above the surface, not of an object resting on it.
18. 4(x) Find G from: M = 6 × 10²⁴ kg, R = 6400 km, g = 9.8 m/s².
Answer: ≈ 6.69 × 10⁻¹¹ N m²/kg² (matches the book).
19. 4(xi) A body weighs 5.6 kg-wt on Earth. Find its weight on a planet with 7 times the Earth's mass and twice its radius.
Answer: 9.8 kg-wt (matches the book).
20. 4(xii) Find the gravitational potential due to the Earth at a height 2R above the surface. (M = 6 × 10²⁴ kg, R = 6400 km, G = 6.67 × 10⁻¹¹ N m²/kg²)
Answer: V ≈ −2.08 × 10⁷ J/kg. The book prints 2.08 × 10⁷ J; the correct answer is −2.08 × 10⁷ J/kg — potential is negative and is measured per unit mass (J/kg).
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. A planet moves fastest in its orbit at…
Answer: A. Equal areas in equal times means faster when nearer the Sun.
2. If the distance between two masses is tripled, the force becomes…
Answer: B. F ∝ 1/r².
3. Dimensions of G are…
Answer: C. G = Fr²/(m₁m₂).
4. If the orbit radius of a planet becomes 4 times, its period becomes…
Answer: B. T ∝ r^(3/2) = 4^1.5 = 8.
5. A body is at the centre of a uniform hollow sphere. The net gravitational force on it from the sphere is…
Answer: B. Pulls from opposite sides cancel.
6. g on the Moon (mass M/80, radius R/4) is about…
Answer: C. g × 16/80 = g/5.
7. At what depth is g reduced by 25%? (R = 6400 km)
Answer: C. 1 − d/R = 0.75 → d = R/4.
8. The effect of Earth's rotation on g is zero at…
Answer: A. cos 90° = 0.
9. The gravitational PE of a body at infinite distance is taken as…
Answer: B. Reference point where the force is zero.
10. Escape velocity from a planet depends on…
Answer: C. v_e = √(2GM/R).
11. Ratio of escape velocity to critical speed near the surface is…
Answer: A. √(2gR)/√(gR).
12. A satellite given a horizontal speed between v_c and v_e follows…
Answer: C. Extra speed stretches the orbit outward.
13. Total energy of a satellite in circular orbit is…
Answer: D. KE + PE = GMm/2r − GMm/r.
14. A person's scale reading in a freely falling lift is…
Answer: A. N = m(g − g) = 0.
15. A geostationary satellite has a period of…
Answer: C. It matches the Earth's rotation.
