Textbook: Physics – Class 11 (Balbharati, official free PDF) · pages 100–113
Why does a steel rod spring back but a lump of clay stays squashed? This chapter explains elasticity and plasticity, the three kinds of stress and strain, Hooke's law, Young's modulus, bulk modulus, modulus of rigidity, Poisson's ratio, the stress-strain curve, strain energy, hardness, and friction between solids — with derivations, worked numericals and every Exercise question solved.
Atoms in a solid sit in a fixed pattern where the net force on each one is zero. A deforming force shifts them slightly and creates internal restoring forces. An elastic body returns to its original shape and size once the force is removed; a plastic body keeps the new shape. Quartz fibre is nearly perfectly elastic and putty is nearly perfectly plastic.
Stress is the restoring force per unit area (N/m² or Pa, dimensions [L⁻¹M¹T⁻²]); strain is change in dimension ÷ original dimension and has no unit. There are three pairs: tensile/compressive (length), volume or hydraulic (volume) and shearing (shape).
Hooke's law: within the elastic limit stress ∝ strain, and stress ÷ strain is a modulus of elasticity. Young's modulus Y = FL/(AΔl), bulk modulus K = −V dP/dV (its reciprocal is compressibility) and rigidity modulus η = (F/A)/θ. Poisson's ratio σ = lateral strain ÷ linear strain.

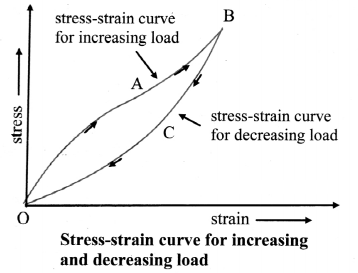

The stress-strain curve of a metal wire shows a straight Hooke's-law part up to the proportional limit, elastic behaviour up to the yield point (elastic limit), then plastic flow, permanent set and finally fracture. Brittle, ductile and malleable materials, elastomers and elastic hysteresis are read from this curve.
Work stored in a stretched wire is strain energy = ½ × load × extension; per unit volume it is ½ × stress × strain = ½ Y (strain)² = stress²/(2Y). Friction between solids comes from molecular attraction at tiny contact points; F_L = μ_s N for limiting static friction and F_k = μ_k N for sliding, with static > kinetic > rolling friction.
Get a ✓ Verified tutor for “Mechanical Properties of Solids” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
A steel wire 3 m long with cross-section 1 mm² carries a load of 200 N. Y for steel = 2 × 10¹¹ N/m². Find the stress, the strain and the extension.
Answer: Stress 2 × 10⁸ N/m²; strain 10⁻³ (no unit); extension 3 mm.
A 2 m long wire of radius 0.5 mm stretches by 1 mm when a 5 kg mass hangs from it (g = 9.8 m/s²). Find Y.
Answer: Y ≈ 1.25 × 10¹¹ N/m².
A copper block of volume 0.5 m³ is taken deep under the sea where the pressure is 7 × 10⁷ Pa more than at the surface. K(copper) = 14 × 10¹⁰ Pa. Find the decrease in volume and the volume strain.
Answer: Volume decreases by 2.5 × 10⁻⁴ m³ (250 cm³); volume strain = 5 × 10⁻⁴.
For the steel wire in the earlier example (200 N load, 3 mm extension, length 3 m, area 10⁻⁶ m²), find the strain energy and the energy per unit volume.
Answer: 0.3 J stored; 1 × 10⁵ J/m³.
A 20 kg box rests on a floor with μ_s = 0.5 and μ_k = 0.3 (g = 9.8 m/s²). Find the force needed to just start it moving and the force to keep it sliding steadily.
Answer: About 98 N to start it; 58.8 N to keep it moving uniformly.
| Quantity | Formula | SI unit and note |
|---|---|---|
| Stress | F/A | N/m² = Pa; [L⁻¹M¹T⁻²] |
| Longitudinal strain | Δl/L | no unit |
| Volume strain | ΔV/V | no unit |
| Shear strain | θ = Δl/l | radian (small angle) |
| Young's modulus | Y = FL/(AΔl) = MgL/(πr²l) | N/m²; solids only |
| Bulk modulus | K = −V dP/dV | N/m²; solids, liquids, gases |
| Compressibility | 1/K | m²/N = Pa⁻¹; [L¹M⁻¹T²] |
| Modulus of rigidity | η = (F/A)/θ = Fl/(AΔl) | N/m²; solids only |
| Poisson's ratio | σ = (d/D)/(Δl/L) = dL/(DΔl) | no unit; ≤ 0.5 |
| Strain energy | W = ½ F l = YAl²/(2L) | joule |
| Energy per unit volume | ½ stress × strain = ½ Y(strain)² = stress²/(2Y) | J/m³ |
| Static friction | F_L = μ_s N | μ_s = F_L/N, no unit |
| Kinetic friction | F_k = μ_k N | μ_k < μ_s |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Q1 MCQs: (i) Change in dimensions is known as … (ii) The point on the stress-strain curve where strain grows even without extra stress is … (iii) Strain energy of a wire is 18 × 10⁻³ J and energy per unit volume is 6 × 10⁻³ J/m³; its volume is … (iv) … is the property that lets a material resist plastic deformation. (v) The ability to resist fracturing under a force is …
Answer: (i) (A) deformation; (ii) (B) yield point; (iii) (B) 3 m³; (iv) (C) hardness; (v) (A) toughness.
2. Q2 One-sentence answers: elasticity; deformation; SI unit and dimensions of stress; strain; Young's modulus of a rigid body; why old bridges become unsafe; how to apply a shearing force; when Hooke's law holds; Poisson's ratio; elastomer; elastic hysteresis; hardest and softest material; friction; why static friction is self-adjusting; factors on which μ depends.
Answer: Elasticity: the property of a body to return to its original size and shape when the deforming force is removed. Deformation: a change in size, shape or both caused by a force. Stress: N/m² (Pa), [L⁻¹M¹T⁻²]. Strain: change in a dimension divided by its original value. Rigid body: its strain is zero for any stress, so Y = stress/0 is infinite. Bridges: years of repeated loading and unloading fatigue the material, weakening it so it may give way at a stress below the original elastic limit. Shearing stress: apply a force tangentially (parallel) to a surface while the opposite face is held fixed. Hooke's law: only within the elastic limit (small strains). Poisson's ratio: lateral strain ÷ linear strain within the elastic limit. Elastomer: a material such as rubber that can be stretched elastically to very large strains. Elastic hysteresis: strain lagging behind stress during unloading, so loading and unloading curves form a loop. Hardest: diamond; among metals aluminium is very soft (the softest materials include talc and plasticine). Friction: the force between surfaces in contact that opposes their relative motion. Self-adjusting: static friction grows or reverses to exactly balance the applied force until it reaches its limiting value. μ depends on the materials in contact and the nature (roughness, cleanliness) of the surfaces.
3. Q3 Short answers: (i) elasticity vs plasticity; (ii) four ways to reduce friction; (iii) rolling friction and its origin; (iv) how lubricants reduce friction; (v) laws of static friction; (vi) laws of kinetic friction; (vii) advantages and (viii) disadvantages of friction; (ix) brittle substance with examples.
Answer: (i) Elastic body: regains size and shape after the force is removed; restoring forces are strong; e.g. steel, rubber, quartz. Plastic body: keeps the altered form; restoring forces weak; e.g. clay, putty. (ii) Lubricants (oil, grease), ball or roller bearings, polishing the surfaces sensibly, streamlining, using wheels. (iii) Rolling friction opposes a body that rolls so that its contact point keeps changing; it arises because the body and the surface deform slightly at the contact and must be continually pressed and released, and some adhesion must be broken; it is the smallest kind of friction. (iv) A lubricant forms a thin layer of a different material between the surfaces, keeping the bumps apart and replacing strong solid–solid molecular attraction with weak layers that slide easily. (v) F_L = μ_s N; F_L does not depend on apparent contact area for the same N; F_L depends on the materials and nature of the surfaces. (vi) F_k = μ_k N; independent of shape and apparent area; depends on the materials and surfaces; independent of relative speed for moderate speeds. (vii) Lets us walk, hold objects, apply brakes, climb trees, write, light a matchstick. (viii) Opposes motion, wastes energy as heat, causes noise and wear, increases fuel use. (ix) A brittle substance breaks suddenly within (or very near) its elastic limit with almost no plastic stretch, e.g. glass, ceramics, cast iron.
4. Q4 Long answers: (i) Distinguish Young's modulus, bulk modulus and modulus of rigidity. (ii) Define stress and strain and their types. (iii) Young's modulus and an experiment for a wire. (iv) Derive strain energy per unit volume. (v) Friction and the coefficients μ_s and μ_k. (vi) Hooke's law with the labelled stress-strain graph.
Answer: (i) Y: change in length; ratio of longitudinal stress to strain; FL/(AΔl); solids only. K: change in volume; ratio of pressure change to volume strain; −V dP/dV; solids, liquids and gases. η: change in shape; ratio of shear stress to shear strain; (F/A)/θ; solids only. All in N/m². (ii) Stress = restoring force per unit area (tensile/compressive, volume, shear); strain = change ÷ original dimension (longitudinal Δl/L, volume ΔV/V, shear θ). (iii) Y = longitudinal stress ÷ strain = MgL/(πr²l); in the experiment measure L, r (screw gauge), load each step and the extension (vernier against a reference wire), plot load vs extension and use the slope. (iv) W = ½Fl; divide by AL: ½(F/A)(l/L) = ½ stress × strain = ½Y(strain)² = stress²/(2Y). (v) Friction opposes relative motion; μ_s = F_L/N, μ_k = F_k/N. (vi) Hooke's law: stress ∝ strain within the elastic limit. Graph: strain on x, stress on y; straight OA (Hooke's law region, A = proportional limit), curve to B (yield point/elastic limit), plastic region B–D with permanent set line CE, fracture at D.
5. Q5 (i) An object of mass 50 kg on a table just moves when the spring balance reads 50 N. Find μ_s.
Answer: μ_s = 0.102 (matches the book).
6. Q5 (ii) A 37 kg block rests on a rough plane with μ_s = 0.3. Find the least horizontal force to just move it.
Answer: ≈ 108.8 N (matches the book).
7. Q5 (iii) A 37 kg body needs 68.5 N to just start and 43 N to keep moving at constant velocity. Find μ_s and μ_k.
Answer: μ_s ≈ 0.189, μ_k ≈ 0.119. The book prints 0.188 and 0.118 (truncated rather than rounded) — fine.
8. Q5 (iv) A wire stretches 4 mm under a load. A wire of the same material, half the length and double the diameter, carries the same load. Find its extension.
Answer: 0.5 mm (matches the book).
9. Q5 (v) Find the work done in stretching a steel wire, length 2 m, area 0.0225 mm², by a load of 100 N. Y = 2 × 10¹¹ N/m².
Answer: 2.222 J (matches the book).
10. Q5 (vi) A metal sphere of volume 0.31 m³ is in the ocean where pressure is 2 × 10⁷ N/m². K = 6.1 × 10¹⁰ N/m². Find the change in volume.
Answer: ≈ 1.02 × 10⁻⁴ m³ decrease (book: 10⁻⁴ m³).
11. Q5 (vii) A mild-steel wire, 1.5 m long, 0.60 mm diameter, extends 6.3 mm. Y = 2.1 × 10¹¹ N/m². Find the force.
Answer: ≈ 250 N (matches the book).
12. Q5 (viii) Tungsten and steel wires of equal length and area are joined end to end and loaded; total extension 3.25 mm. Y_steel = 2 × 10¹¹, Y_tungsten = 3.40 × 10⁸ N/m² (as given). Find each extension.
Answer: Tungsten ≈ 3.244 mm; steel ≈ 0.0055 mm. The book prints 0.0052 mm for steel; the correct value is about 0.0055 mm (the two parts must add to 3.25 mm). Note: the given Y for tungsten is far smaller than the real value (about 3.4 × 10¹¹ N/m²), but we use the data as printed.
13. Q5 (ix) A steel wire of area 1.2 mm² is stretched by 120 N. A lateral strain of 1.455 × 10⁻⁴ is produced. Y = 2 × 10¹¹ N/m². Find Poisson's ratio.
Answer: σ = 0.291 (matches the book). The book prints the lateral strain as '1.455 mm'; strain has no unit, and the answer 0.291 needs it to be 1.455 × 10⁻⁴.
14. Q5 (x) A telephone wire 125 m long, radius 1 mm, becomes 125.25 m under 800 N. Find Y.
Answer: Y ≈ 1.27 × 10¹¹ N/m² (matches the book).
15. Q5 (xi) A rubber band 30 cm long is stretched to 32 cm. Find the strain.
Answer: ≈ 6.667 × 10⁻² (no unit; matches the book).
16. Q5 (xii) Find the stress in a wire 50 m long, 0.01 cm² in cross-section, carrying 100 kg.
Answer: 9.8 × 10⁸ N/m² (matches the book).
17. Q5 (xiii) A 50 m cable lengthens by 2.5 cm under a load. Find the strain.
Answer: 5 × 10⁻⁴ (matches the book).
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. A body that keeps its altered shape after the force is removed is…
Answer: C. Restoring forces are too weak to bring it back.
2. Dimensions of stress are…
Answer: C. Force ÷ area.
3. Strain has…
Answer: D. It is a ratio of two lengths or volumes.
4. Hooke's law is valid…
Answer: C. Proportionality holds only in the elastic region.
5. Which modulus can a gas have?
Answer: D. Gases have no fixed length or shape.
6. A wire stretches 2 mm under a load. A wire of the same material, same length, double radius under the same load stretches…
Answer: B. l ∝ 1/r², so l becomes 2/4 mm.
7. Compressibility is the reciprocal of…
Answer: D. Compressibility = 1/K.
8. Shear strain is measured in…
Answer: C. It is the small angle θ = Δl/l.
9. If the volume of a stretched wire stayed constant, its Poisson's ratio would be…
Answer: B. Theoretical maximum is 0.5.
10. Materials that break inside the elastic limit are called…
Answer: D. E.g. glass, ceramics.
11. A wire stores 0.6 J when stretched 4 mm. The load is…
Answer: C. ½ F × 0.004 = 0.6 gives F = 300 N.
12. Strain energy per unit volume equals…
Answer: C. From W = ½Fl divided by AL.
13. The hardest known natural material is…
Answer: A. It is extremely hard to scratch.
14. A 10 kg block has μ_s = 0.4 with the floor (g = 9.8 m/s²). Limiting friction is…
Answer: A. 0.4 × 10 × 9.8.
15. Ball bearings reduce friction because they…
Answer: D. Rolling friction is the smallest.
