Textbook: Physics – Class 12 (Balbharati, official free PDF) · pages 158–185
Ray optics explains mirrors and lenses, but not the colours of a soap film, the dark and bright bands from two narrow slits, the spreading of light round a razor edge, or why polaroid sunglasses cut glare. This chapter treats light as a wave: the corpuscular and wave models, wavefronts and Huygens' principle, reflection and refraction from wavefronts, polarization (Malus' law, Brewster's law, scattering), interference in Young's double-slit experiment, coherent sources, optical path, single-slit diffraction and the resolving power of microscopes and telescopes. All exercise questions are solved at the end.
Newton pictured light as tiny corpuscles; Huygens as a wave. Interference, diffraction and polarization established the wave model (Young, Fresnel, Maxwell's electromagnetic waves), while the photoelectric effect later revealed particle (photon) behaviour — light has a dual nature. A wavefront is the locus of points vibrating in the same phase; rays are perpendicular to wavefronts. Far from a source any wavefront is effectively plane.
Huygens' principle: every point of a wavefront acts as a source of secondary wavelets, and the forward envelope of these wavelets after time t is the new wavefront. It yields the laws of reflection (i = r) and Snell's law n₁ sin i = n₂ sin r, with v₁/v₂ = n₂/n₁. On refraction the frequency is unchanged; speed and wavelength drop by the factor n.

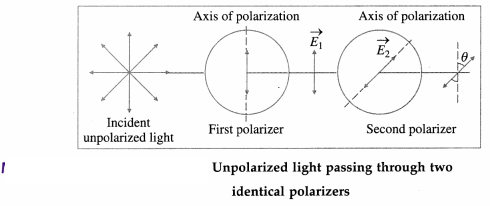

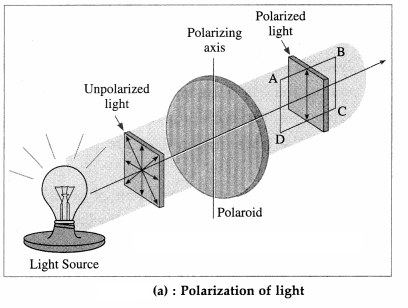

Polarization shows light is transverse. A polarizer passes only vibrations along its axis, so unpolarized light is halved in intensity; Malus' law gives I = I₀ cos²θ for polarized light. Reflected light is completely polarized when tan θ_B = n (Brewster's law), with reflected and refracted rays at 90°. Scattered skylight is partly polarized.

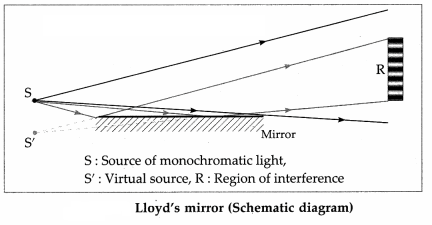

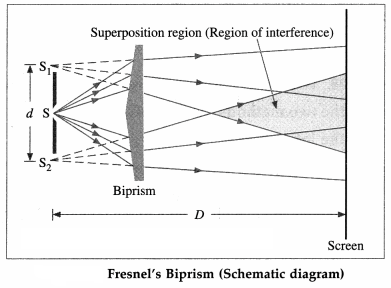

Young's double-slit experiment: bright fringes where the path difference is nλ, dark where it is (2n − 1)λ/2; fringe width W = λD/d. A good pattern needs coherent sources (constant phase difference — obtained from one source by division of wavefront, e.g. Fresnel biprism, Lloyd's mirror), narrow close slits, equal amplitudes and a distant screen. Optical path = n × geometrical path.

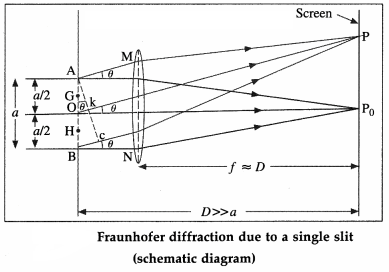

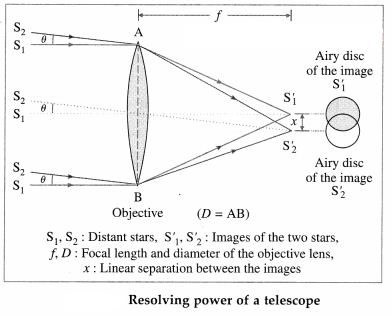

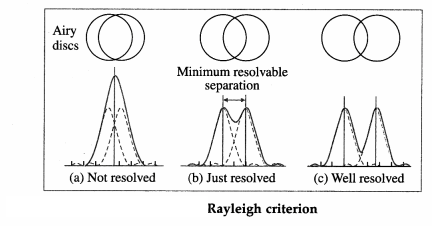

Diffraction is the bending of light round an obstacle or aperture comparable to λ. For a single slit of width a (Fraunhofer case) the minima lie at a sin θ = nλ, secondary maxima roughly at (2n + 1)λ/2, and the central maximum has width 2λD/a — twice the others. Diffraction limits resolution: by Rayleigh's criterion a telescope resolves θ = 1.22λ/D and a microscope resolves d = 0.61λ/(n sin α).
Get a ✓ Verified tutor for “Wave Optics” — live online or at home. We aim to suggest up to 3 tutors within 24 hours.
Light of wavelength 600 nm in air enters water (n = 1.33). Find its speed, wavelength and frequency in water (c = 3 × 10⁸ m/s).
Answer: 2.26 × 10⁸ m/s; 451 nm; 5 × 10¹⁴ Hz.
Unpolarized light of intensity 80 W/m² passes through two polaroids whose axes are 30° apart. Find the transmitted intensity.
Answer: 30 W/m².
In a YDSE, d = 0.25 mm, D = 1.5 m and λ = 500 nm. Find the fringe width and the distance of the 3rd dark fringe from the centre.
Answer: W = 3.0 mm; 7.5 mm.
Light travels 4.5 cm through glass of n = 1.5. What thickness of water (n = 1.35) gives the same optical path?
Answer: 5.0 cm of water.
Light of 600 nm passes through a slit 0.15 mm wide; the screen is 1.2 m away. Find the width of the central maximum and the position of the second minimum.
Answer: Central maximum 9.6 mm wide; second minimum 9.6 mm from the centre.
Find the angular limit of resolution of the human eye (pupil 3 mm) for light of 550 nm, and the smallest separation it can resolve at 25 cm.
Answer: ≈ 2.2 × 10⁻⁴ rad; about 0.056 mm at 25 cm (in practice the retina limits the eye to roughly 0.1 mm).
| Topic | Formula | Note |
|---|---|---|
| Snell's law | n₁ sin i = n₂ sin r; v₁/v₂ = n₂/n₁ | from Huygens' construction |
| Wavelength in a medium | λ_m = λ/n | frequency unchanged |
| Malus' law | I = I₀ cos²θ | polarizer + analyser |
| Brewster's law | tan θ_B = n | reflected ⟂ refracted |
| YDSE bright fringe | y_n = nλD/d | path diff. nλ |
| YDSE dark fringe | y_n = (2n − 1)λD/(2d) | path diff. (2n − 1)λ/2 |
| Fringe width | W = λD/d | angular λ/d |
| Intensity ratio | I_max/I_min = ((a₁ + a₂)/(a₁ − a₂))² | I ∝ a² |
| Biprism slit separation | d = √(d₁d₂) | two lens positions |
| Optical path | n × l | sheet adds (n − 1)t |
| Single slit minima | a sin θ = nλ; central width 2λD/a | Fraunhofer |
| Resolution limits | telescope 1.22λ/D; microscope 0.61λ/(n sin α) | Rayleigh's criterion |
Solve each one in your notebook first. Then open the solution and compare every step.
1. Q1 Choose the correct option: (i) phenomenon proving light is transverse; (ii) property unchanged from one medium to another; (iii) unpolarized light through a polarizer; (iv) I_max : I_min = 25 : 1 — ratio of source intensities; (v) a uniform thin glass sheet in front of both slits.
Answer: (i) D; (ii) D; (iii) B; (iv) D 9 : 4; (v) A unchanged.

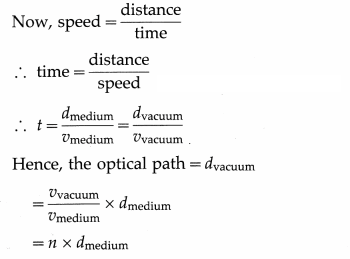

2. Q2 Answer in brief: (i) Primary and secondary sources? (ii) Wavefront; relation to rays; shape far from the source? (iii) Colours of an oil film? (iv) YDSE with white light, one slit covered by a red filter and the other by violet? (v) Optical path vs actual path?
Answer: See steps.

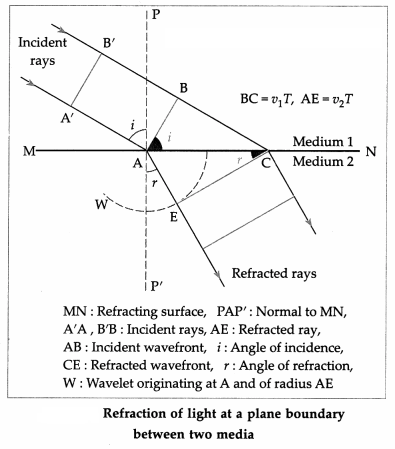

3. Q3 & Q4 Derive the laws of reflection and refraction using Huygens' principle.
Answer: i = r; sin i/sin r = v₁/v₂ = n₂/n₁.

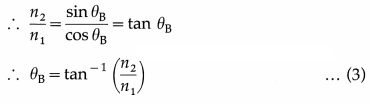

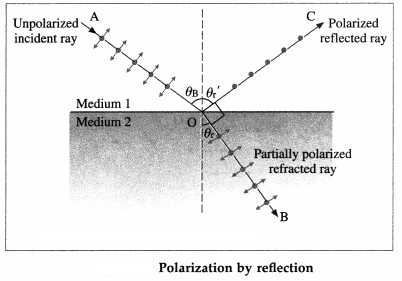

4. Q5 & Q6 Explain polarization and derive Malus' law; state Brewster's law and derive the Brewster angle.
Answer: I = I₀ cos²θ; θ_B = tan⁻¹ n.

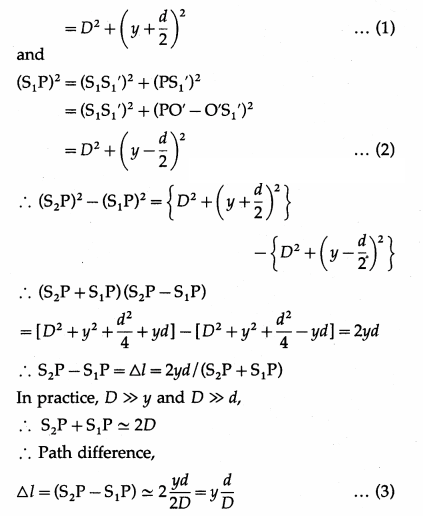

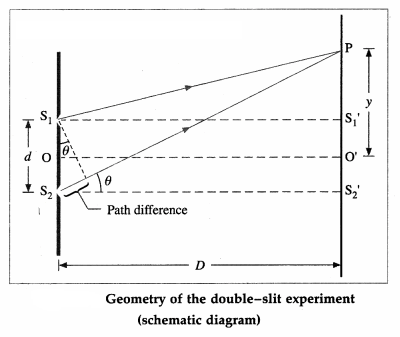

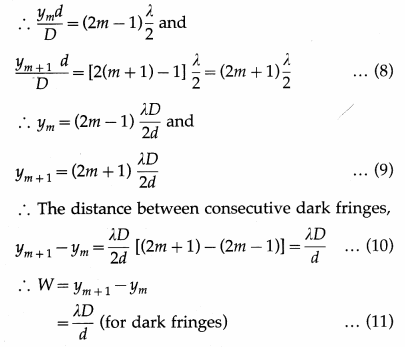

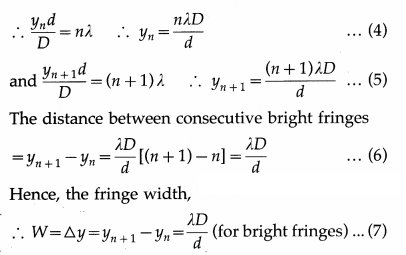

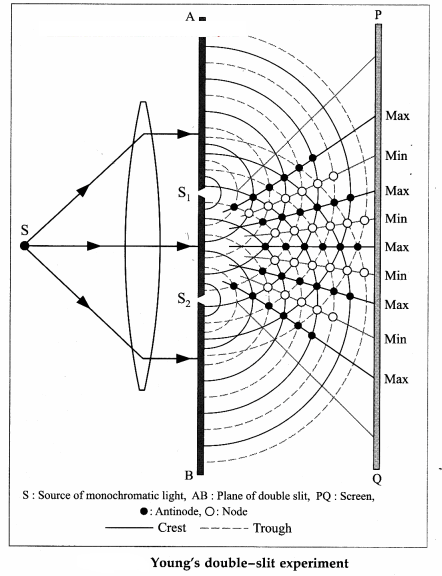

5. Q7 Describe Young's experiment, derive the conditions for bright and dark fringes and the fringe width.
Answer: Bright y = nλD/d; dark y = (2n − 1)λD/2d; W = λD/d.
6. Q8 & Q9 Conditions for a good interference pattern; coherent sources and two lab methods.
Answer: See steps.

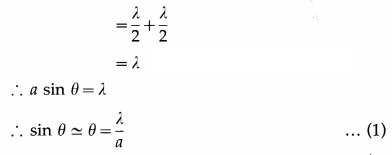

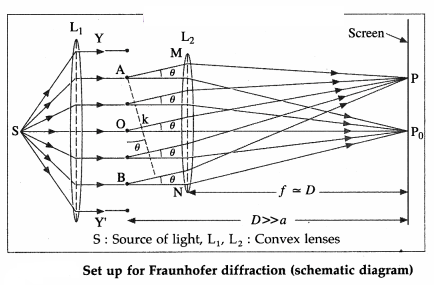

7. Q10 & Q11 What is diffraction; how does it differ from interference; Fresnel vs Fraunhofer; conditions for bright and dark bands in single-slit diffraction.
Answer: Dark: a sin θ = nλ; bright: a sin θ ≈ (2n + 1)λ/2.

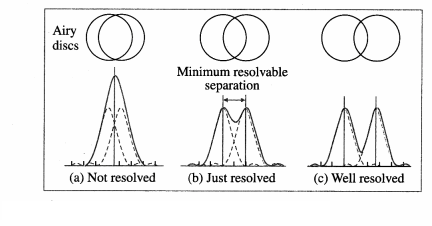

8. Q12 Describe Rayleigh's criterion and explain it for a telescope and a microscope.
Answer: Telescope θ = 1.22λ/D; microscope d = 0.61λ/(n sin α).
9. Q13 White light (400–700 nm) passes through glass of n = 1.55. Wavelength range inside the glass?
Answer: 258.1 nm to 451.6 nm.
10. Q14 Optical path of 3 cm in flint glass (n = 1.6) equals that of x cm in a medium of n = 1.25. Find x.
Answer: 3.84 cm.

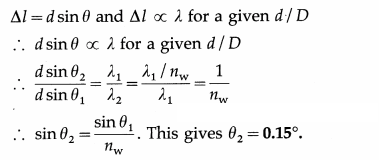

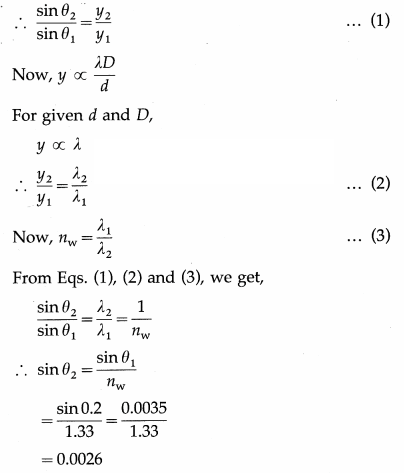

11. Q15 Fringes for sodium light are 0.20° apart; the apparatus is immersed in water (n = 1.33). New angular separation?
Answer: ≈ 0.15°.
12. Q16 Slit separation = 100λ. (a) Angular separation of the central and next maximum? (b) Their distance on a screen 50 cm away?
Answer: 0.01 rad; 0.5 cm.

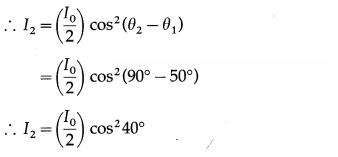

13. Q17 Unpolarized light I₀ meets a polaroid at 50° to the vertical, then one with a horizontal axis. Final intensity?
Answer: (I₀/2) cos²40° ≈ 0.29 I₀.

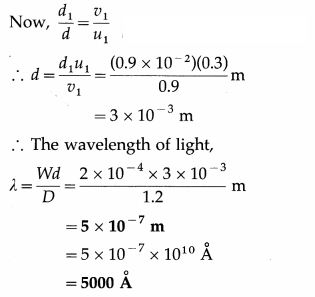

14. Q18 Biprism: D = 1.2 m; central to 20th bright band = 0.4 cm; a lens 90 cm from the eyepiece gives images 0.9 cm apart. Find λ.
Answer: 5000 Å.

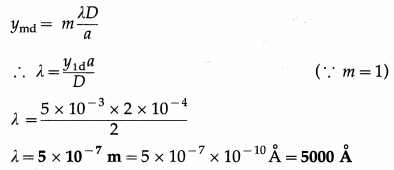

15. Q19 Fraunhofer single slit: D = 2 m, a = 0.2 mm, first minimum 5 mm from the centre. Find λ.
Answer: 5000 Å.

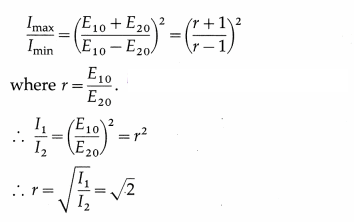

16. Q20 One slit gives twice the intensity of the other. Ratio of intensities of bright and dark fringes?
Answer: ≈ 34 : 1.
17. Q21 Green light 550 nm through a 0.4 mm slit, screen 40 cm away. Distance between the two first-order minima?
Answer: 1.1 mm.
18. Q22 Ratio a/λ for a single slit with its first minimum at 45°?
Answer: a/λ = √2 ≈ 1.414. The book prints 1.274; the correct answer is 1.414.

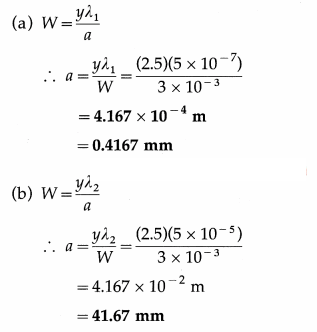

19. Q23 Screen 2.50 m away; central maximum 6.00 mm wide. Slit width for λ = (a) 500 nm (b) 50 μm (c) 0.500 nm?
Answer: 0.4167 mm; 41.67 mm; 4.167 × 10⁻⁴ mm.
20. Q24 Limit of resolution of a telescope with a 200 inch objective for 5000 Å light.
Answer: ≈ 1.2 × 10⁻⁷ rad.

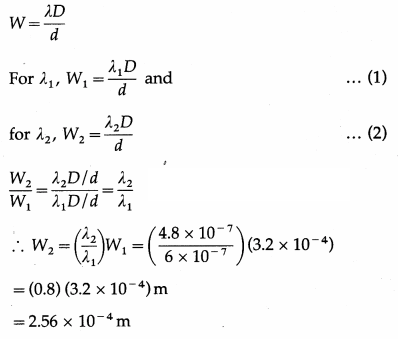

21. Q25 Biprism fringe spacing is 0.32 mm for 6000 Å. Change in spacing for 4800 Å?
Answer: Decreases by 0.064 mm.
Read the question, answer it in your head, then tap the card to check. 20 cards.
15 questions. Tap an option — you will see at once if it is right and why.
1. Which phenomenon proves that light is a transverse wave?
Answer: A. Longitudinal waves cannot be polarized.
2. Which property of light does not change from one medium to another?
Answer: B. Frequency is fixed by the source.
3. When unpolarized light passes through a polarizer, its intensity
Answer: A. It falls to half for any orientation.
4. In YDSE I_max : I_min = 25 : 1. The source intensities are in the ratio
Answer: D. (a₁ + a₂)/(a₁ − a₂) = 5 → a₁/a₂ = 3/2 → 9 : 4.
5. A uniform thin glass sheet is placed in front of BOTH slits. The pattern
Answer: D. Both beams gain the same optical path.
6. Wavefronts from a very distant point source are
Answer: C. A small part of a huge sphere is flat.
7. Fringe width in YDSE is doubled if
Answer: A. W = λD/d.
8. When the whole YDSE apparatus is put in water (n = 1.33), the fringe width
Answer: C. λ in water is λ/n.
9. Brewster's angle for glass of n = √3 is
Answer: B. tan θ = √3.
10. Two polaroids are crossed (90°). Light through the second is
Answer: A. cos²90° = 0.
11. Two independent bulbs do not give interference because they are
Answer: D. Their phase difference changes randomly.
12. First single-slit minimum condition is
Answer: B. Paired cancellation of the two halves.
13. Narrowing a single slit makes the central maximum
Answer: D. Width = 2λD/a.
14. Resolving power of a telescope increases with
Answer: A. θ_min = 1.22λ/D.
15. The colours of a thin oil film on water are due to
Answer: D. Reflections from the two film surfaces interfere.
